OPERATING MANUAL
ba31119e05 09/2016
TS 606/2-i ; TS 606-G/2-i
TS 606/4-i; TS 606-G/4-i
TS 1006-i

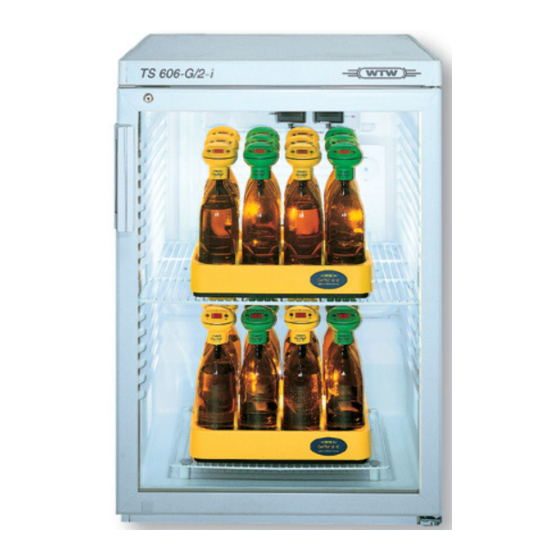

THERMOSTATE CABINETS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS 606/2-i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wtw TS 606/2-i

Summary of Contents for wtw TS 606/2-i

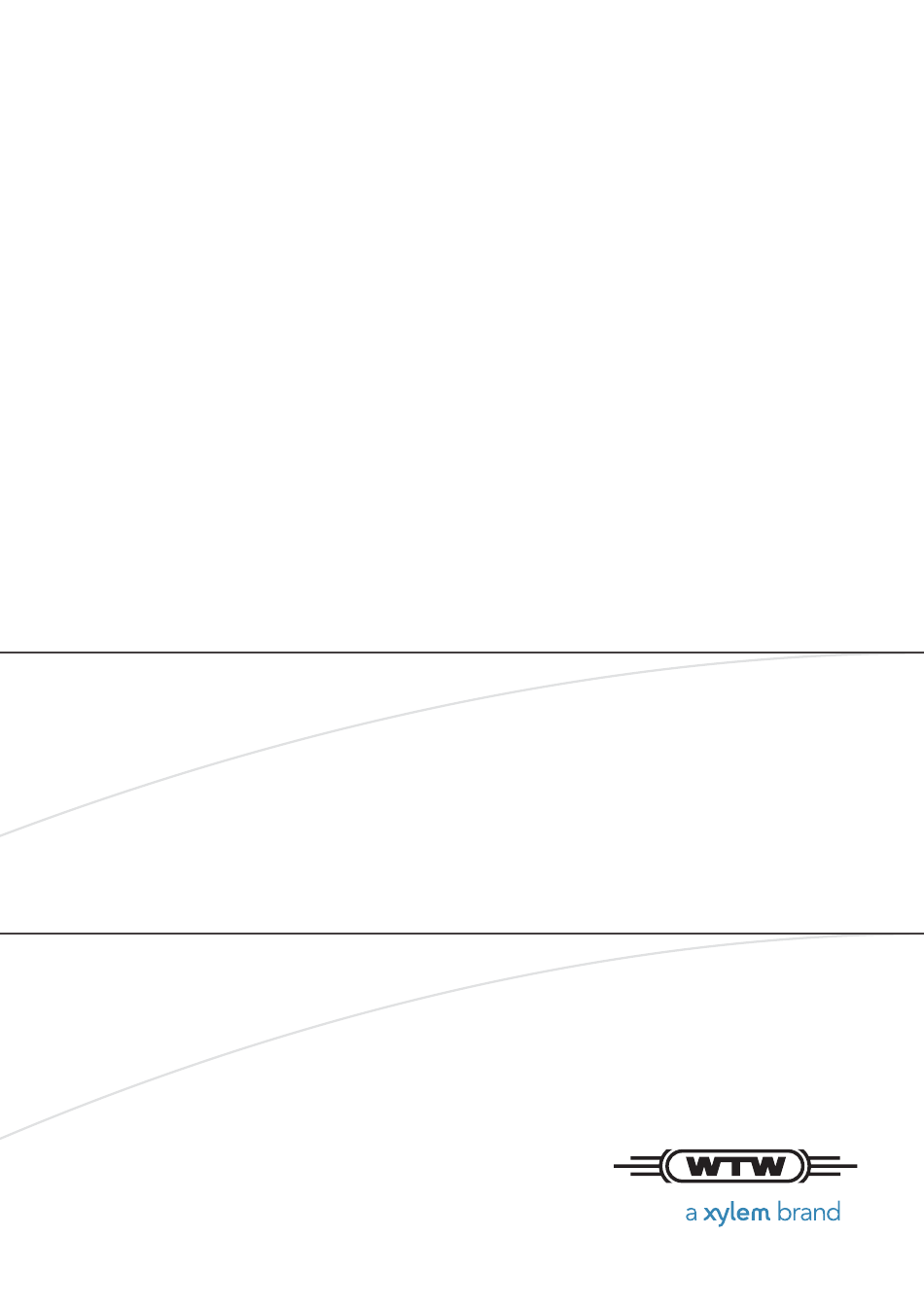

  • Page 1 OPERATING MANUAL ba31119e05 09/2016 TS 606/2-i ; TS 606-G/2-i TS 606/4-i; TS 606-G/4-i TS 1006-i THERMOSTATE CABINETS...
  • Page 2 TS 606...-i/1006-i © Copyright 2016, Xylem Analytics Germany GmbH Printed in Germany. ba31119e05 09/2016...

  • Page 3: Table Of Contents

    TS 606...-i/1006-i Contents TS 606...-i/1006-i - Contents Overview ............. 5 Safety instructions .
  • Page 4 Contents TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 5: Overview

    TS 606...-i/1006-i Overview Overview Applications The thermostat cabinets serve to continuously temper a variety of ap- plications, e. g.:  20 °C BOD determination  25 °C Enzymatic activity (TTC test)  37 °C Colony count The instruments manage all tempering tasks in the range of 10 °C to 40 °C maintenance-free and reliably.
  • Page 6 Overview TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 7: Safety Instructions

    TS 606...-i/1006-i Safety instructions Safety instructions This operating manual contains basic instructions that have to be ob- served during the commissioning, operation and maintenance of the in- strument. Thus, it is essential for the operator to read this operating manual before carrying out any work with the system. The operating manual must always be available within the vicinity of the measuring system.

  • Page 8: General Safety Instructions

    Safety instructions TS 606...-i/1006-i General safety instructions Function and The failure-free function and operational safety of the instrument is only operational safety guaranteed if the generally applicable safety measures and the special safety instructions in this operating manual are followed during its use. The failure-free function and operational safety of the TS 606...-i/1006-i is only guaranteed within the operational limits under the environmental conditions that are specified in chapter 7 T...

  • Page 9: Commissioning

    TS 606...-i/1006-i Commissioning Commissioning Unpacking and setting up the instrument Note Please also follow the instructions on how to set up the instrument in the enclosed operating manual of the Liebherr company! Unpacking When unpacking the instrument pay attention to shipping damages. If you find damages inform the consigner immediately so that you can claim insurance cover.
  • Page 10 Commissioning TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 11: Operation

    TS 606...-i/1006-i Operation Operation Operating elements TS 606(-G)/2-i : Control unit inside the thermostat cabinet TR-1 emperature control Fuse 6,3 TS 606(-G)/4-i TS 1006-i: TR-1 emperature control Fuse 6,3 <On/Off> switch: switch the instrument on and off LED display: temperature and status display <Up>...

  • Page 12: Connecting The Stirring Platforms

    Operation TS 606...-i/1006-i Connecting the stirring platforms Caution Observe the maximum sum load for all 4 sockets (see chapter 7 T ). If the sum load is too high, the temperature control may be NICAL DATA disturbed. Connecting the stirring Open the door.
  • Page 13 TS 606...-i/1006-i Operation Operating example: The desired temperature set in the factory is to be changed from 20 °C Changing the desired to 25 °C. temperature set in the factory Press the <Up> and <Down> keys simultaneously for a short period of time.
  • Page 14 Operation TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 15: Maintenance, Cleaning, Disposal

    TS 606...-i/1006-i Maintenance, cleaning, disposal Maintenance, cleaning, disposal General maintenance instructions Warning Before any work inside the cabinet disconnect the mains plug of the thermostat cabinet from the socket (do not only switch off the mains switch). Warning It is not allowed to perform any maintenance or cleaning work through the protective cover grid of the TR-1 control unit or to remove this grid.
  • Page 16 Maintenance, cleaning, disposal TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 17: What To Do If

    19.0 °C to 21.0 °C. Test see: Measuring the actual value of the sample temperature. Test the sockets. Connect a small consumer (for example WTW stirring plat- form) to each individual socket of the control unit. The small consumer must work at each socket.

  • Page 18: Measuring The Actual Value Of The Sample Temperature

    ECHNICAL DATA The fuse is available in specialist shops. Warning: Only use the specified type. Do not repair fuses! Control unit defective Contact the WTW service de- partment. Display of the control Cause Remedy unit works. Desired The waiting time was not sufficient...
  • Page 19 Compressor runs, cooling unit de- Contact the Liebherr service de- fective. partment. The compressor of the cooling Contact the WTW service de- unit does not work or the control partment. unit does not switch on the com- pressor. ba31119e05...
  • Page 20 What to do if... TS 606...-i/1006-i ba31119e05 09/2016...

  • Page 21: Technical Data

    TR 1 control unit and compressor. The fuse is on the operating front of the control unit. Protective class Maximum electrical TS 606/2-i TS 606-G/2-i TS 606/4-i TS 606-G/4-i TS 1006-i power consumption [W] Consumers at the sockets of the control unit are not taken into account for these specifications.

  • Page 22: Temperature Control Unit Tr-1

     3-digit LED display for temperature, resolution 0.1 °C (0.1 K) Temperature and status display  Status displays for heating and cooling phases Connections 4 (respectively 2) Schuko sockets, maximum sum power consumption: TS 606/2-i TS 606-G/2-i TS 606/4-i TS 606-G/4-i TS 1006-i 50 W 50 W 100 W...

  • Page 23: Service Information

    Before working on the current circuits it is essential to disconnect the mains plug of the thermostat cabinet! The following tasks may only be carried out by a specialist electrician authorized by WTW. The custo- mary regulations for building electrical appliances must absolutely be observed.
  • Page 24 Service information TS 606...-i/1006-i Example Action  Pull off the mains plug. 2. Control unit does not work.  If necessary, repair the coo- ling unit and restore the origi- nal state (to be carried out on site by Liebherr service per- sonnel).
  • Page 25 TS 606...-i/1006-i ba31119e05 09/2016...
  • Page 26 For more information on how Xylem can help you, go to xyleminc.com. ® Service and Returns: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
