PurCon IS
Connecting the
permeate suction line
with the control unit
ba43133e06 05/2009
1 Open the door of the control unit.
WARNING
Touching the electrical lines inside the control unit can result in
danger to life from electric shock. Before opening the operating
panel of the instrument, switch it off at the mains switch and pull
out the mains plug.

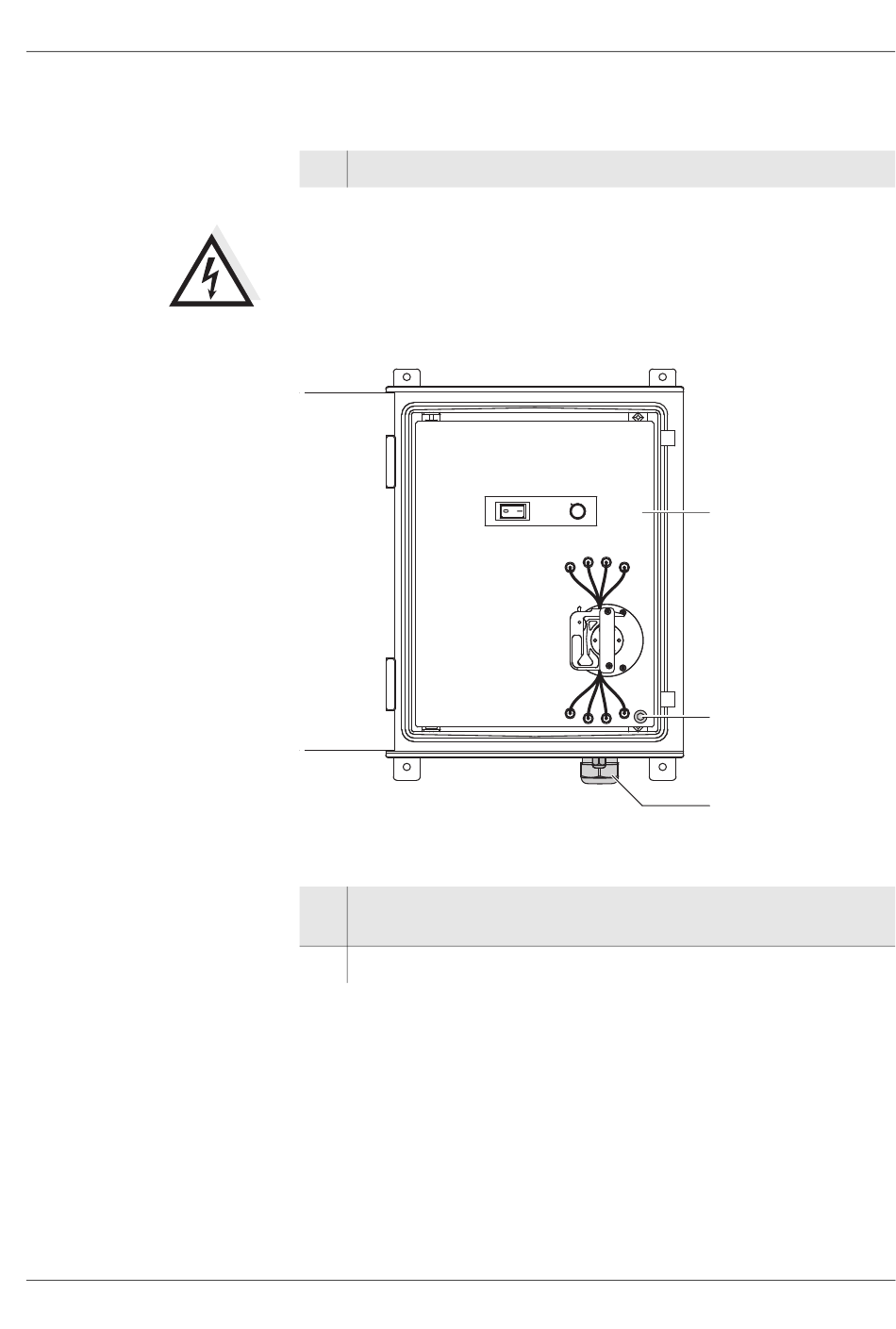

Fig. 3-4 Preparing the control unit
2 Remove the screw (pos. 1 in Fig. 3-4) and open the operating
panel (pos. 2).
3 Undo the back cable gland (pos. 3 in Fig. 3-4).
Netz 4
3
2
1
0
