Commissioning
Types of mounting
Wall mounting
Rail mounting
62

3.2.1 Control unit

The control unit can be mounted in the following ways in the vicinity of
the sampling location:
Rail mounting with the PCIS-MSG accessory set
Wall mounting (see below)
Note
Instructions for mounting are given in the mounting instructions of the
accessories. Ordering information for the accessories are given in sec-
tion 8 A
CCESSORIES AND CONSUMABLE MATERIALS
The housing of the control unit has four attaching eyes on the back for
mounting on a wall. Make sure that the wall has the stability required
for the weight of the control unit. Only use mounting material, which is
suitable for the wall material (screws, dowels, etc.). The drilled hole

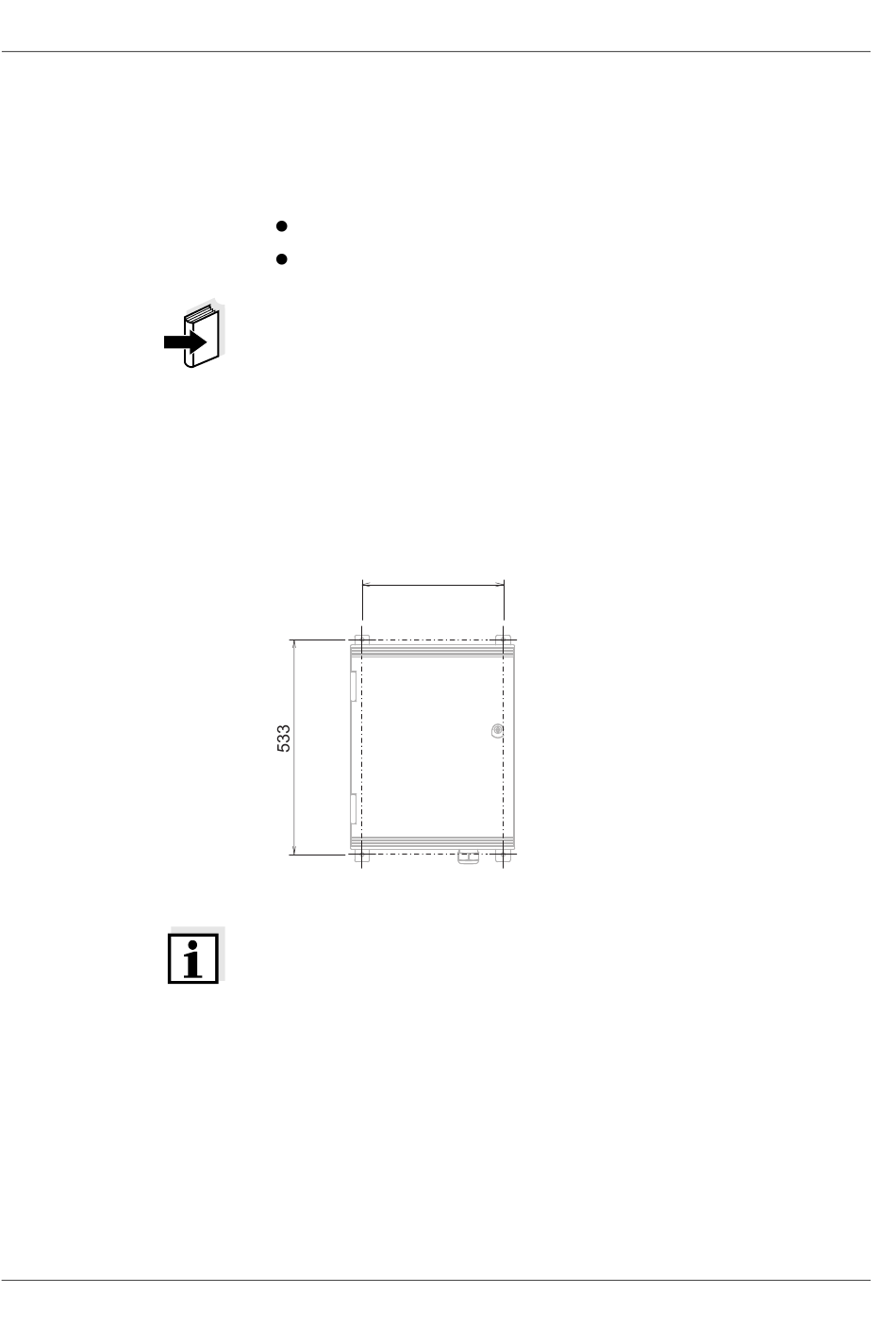

spacings are shown in the following diagram:
355
Fig. 3-1 Drilled hole spacings for the control unit (dimensions in mm)
Note
Make sure that there is sufficient space under the control unit for con-
necting the permeate suction tube and the permeate line.
Alternatively, the control unit can be mounted on a railing.
