Commissioning
64
5 Push the threaded plugs (pos. 2) over the two suction tubes up
to the cable gland (pos. 6) and secure with the coupling ring
(pos. 1). The flat side of the threaded plug must face down-
wards.
6 Connect the two suction hoses with the filter as shown in the
following Fig. 3-3. In the case of four filters, connect filters 1
and 3, as well as 2 and 4 to an intake tube via Y pieces.

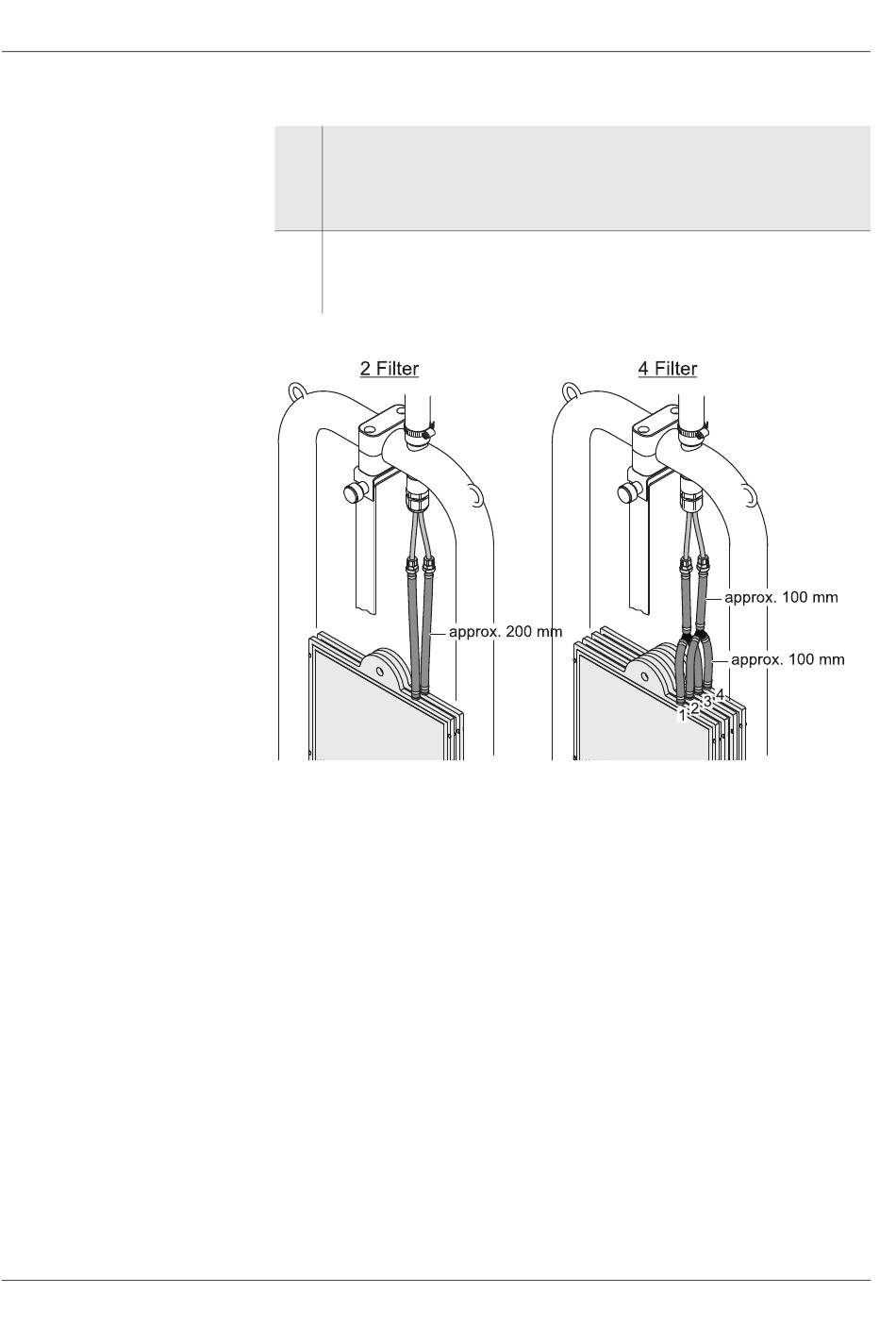

Fig. 3-3 Connecting the permeate suction hoses
PurCon IS
