5. Software Control - The Built-in Web

5
S oftware Control - The Built-in Web
The DVI-Plus matrix frames contains a feature which allows to connect and
control the matrix via a web browser. The built-in web offers you full control
over all settings even if you do not have the opportunity to install new programs.

Establishing the Connection

Ý
Control Menu
Ý
EDID Menu
Ý
Status Menu
Ý
Configuration Menu
Ý
Terminal Menu
Ý
TIPS AND TRICKS: To get the best visibility of the screenshots in this chapter
adjust the zoom setting of your PDF Reader software to 150% magnification.
MX DVI-Plus Series – User's Manual
5.1. Establishing the Connection
To access the web page just run your preferred web browser and type
the IP address of the matrix as an URL. The computer and the matrix
must be in the same subnet.
ATTENTION! Only one opened web page is allowed at once. Other
TCP/IP connections are prohibited while the web page is opened.
IP Address
The only way to find out the IP address of the matrix (if it is not known)
is to search for devices with the Lightware Device Controller software.
If this is not possible for some reason, the IP address can be reset
to factory default (192.168.254.254) with the front panel buttons, see
the IP Settings section.

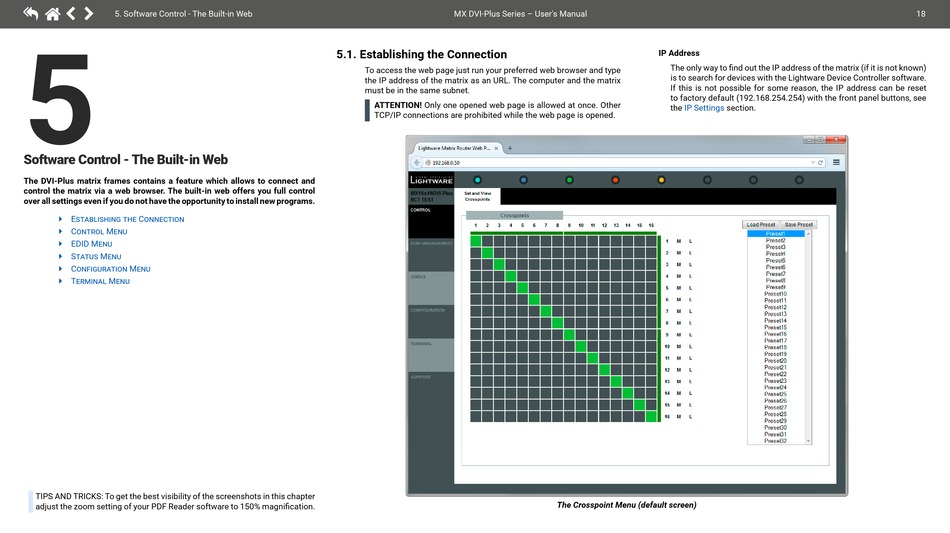

The Crosspoint Menu (default screen)
