1. Introduction
Ethernet Control
Multiple simultaneous TCP/IP connections are available
with simple ASCII-based protocol for controlling and
configuring the matrix router.
Built-in Website
Easy access from a web browser to control and
w w w
configure the matrix in systems where software is not
allowed to install.
Power Failure Memory
The matrix router starts with its latest configuration
settings when powered on or after a power failure.
Every setting is stored in a non-volatile memory.
DVI +5V Power Support
+
5V
500 mA constant current output on each DVI output to
POWER
power long distance fiber optical cables or other DVI
powered devices.
No Signal Latency With Zero Frame Delay
The signal management architecture ensures that there
is no delay added between the input and the output.
Lightware Device Controller (LDC)
The latest edition of LDC got more intuitive, user
friendly, smarter and a modern user interface to control
the Lightware devices. The application is available for
both Windows and macOS operating systems.
MX DVI-Plus Series – User's Manual

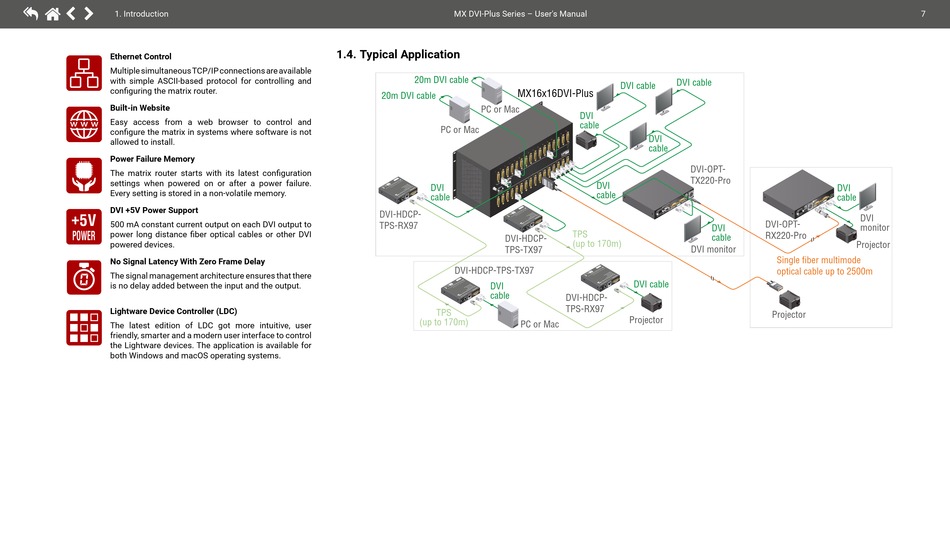

1.4. Typical Application
20m DVI cable
20m DVI cable
PC or Mac
PC or Mac
DVI
cable
)
OUT (PoE
TPS
DVI-HDCP-
TPS-RX97
DVI-HDCP-
TPS-TX97
DVI-HDCP-TPS-TX97
DVI
cable
)
OUT (PoE
TPS
TPS
(up to 170m)
DVI cable
DVI cable
MX16x16DVI-Plus
DVI
cable
DVI
cable
CPU LIVE
RES ET
S
UT DVI-OPT-
INP
UT S
TP TX220-Pro
OU
DVI
cable
L
RS- CON 232 TRO
AL
LOC
S EU, HU
RoH e in
Mad
(PoE )
TPS OUT
TPS
(up to 170m)
DVI monitor
DVI cable
(PoE )
TPS OUT
DVI-HDCP-
TPS-RX97
Projector
PC or Mac
DVI
cable
DVI
DVI-OPT-
monitor
DVI
RX220-Pro
cable
Projector
Single fiber multimode
optical cable up to 2500m
Projector
