6. Software Control – Lightware Device Controller Software

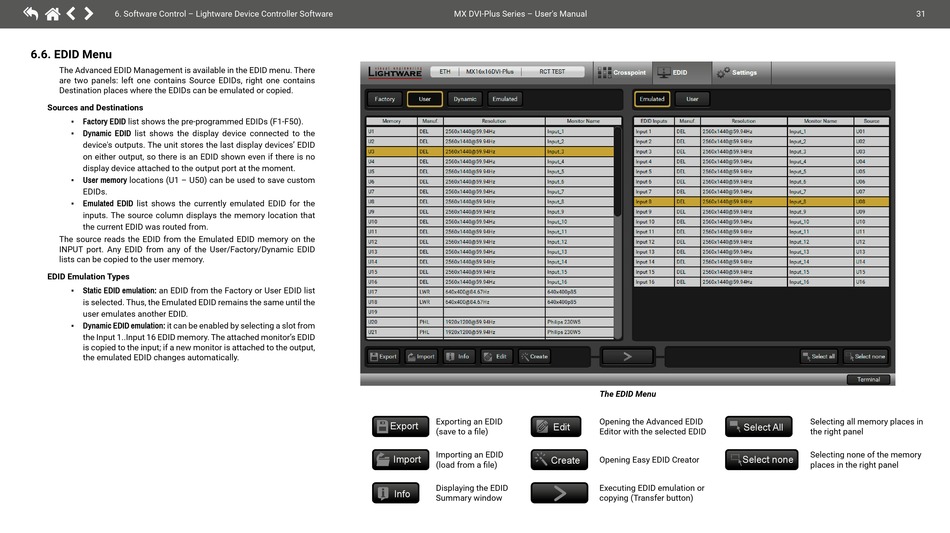

6.6. EDID Menu
The Advanced EDID Management is available in the EDID menu. There
are two panels: left one contains Source EDIDs, right one contains
Destination places where the EDIDs can be emulated or copied.
Sources and Destinations
Factory EDID list shows the pre-programmed EDIDs (F1-F50).
▪
▪ Dynamic EDID list shows the display device connected to the
device's outputs. The unit stores the last display devices' EDID
on either output, so there is an EDID shown even if there is no
display device attached to the output port at the moment.
▪ User memory locations (U1 – U50) can be used to save custom
EDIDs.
Emulated EDID list shows the currently emulated EDID for the
▪
inputs. The source column displays the memory location that
the current EDID was routed from.
The source reads the EDID from the Emulated EDID memory on the
INPUT port. Any EDID from any of the User/Factory/Dynamic EDID
lists can be copied to the user memory.
EDID Emulation Types
Static EDID emulation: an EDID from the Factory or User EDID list
▪
is selected. Thus, the Emulated EDID remains the same until the
user emulates another EDID.
Dynamic EDID emulation: it can be enabled by selecting a slot from
▪
the Input 1..Input 16 EDID memory. The attached monitor's EDID
is copied to the input; if a new monitor is attached to the output,
the emulated EDID changes automatically.
MX DVI-Plus Series – User's Manual
Exporting an EDID
Export
Edit
(save to a file)
Importing an EDID
Import
Create
(load from a file)
Displaying the EDID
Info
Summary window
The EDID Menu
Opening the Advanced EDID
Select All
Editor with the selected EDID
Opening Easy EDID Creator Select none
Executing EDID emulation or
copying (Transfer button)
31
Selecting all memory places in
the right panel
Selecting none of the memory
places in the right panel
