7. Programmers' Reference

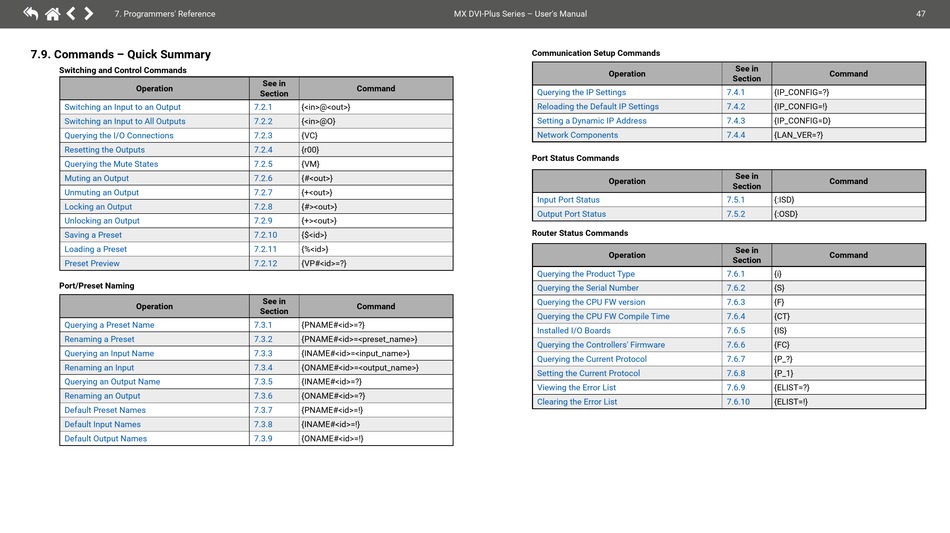

7.9. Commands – Quick Summary
Switching and Control Commands
Operation
Switching an Input to an Output
Switching an Input to All Outputs
Querying the I/O Connections
Resetting the Outputs
Querying the Mute States
Muting an Output
Unmuting an Output
Locking an Output
Unlocking an Output
Saving a Preset
Loading a Preset
Preset Preview
Port/Preset Naming
Operation
Querying a Preset Name
Renaming a Preset
Querying an Input Name
Renaming an Input
Querying an Output Name
Renaming an Output
Default Preset Names
Default Input Names
Default Output Names
See in
Command
Section
7.2.1 {<in>@<out>}
7.2.2 {<in>@O}
7.2.3 {VC}
7.2.4 {r00}
7.2.5 {VM}
7.2.6 {#<out>}
7.2.7 {+<out>}
7.2.8 {#><out>}
7.2.9 {+><out>}
7.2.10 {$<id>}
7.2.11 {%<id>}
7.2.12 {VP#<id>=?}
See in
Command
Section
7.3.1 {PNAME#<id>=?}
7.3.2 {PNAME#<id>=<preset_name>}
7.3.3 {INAME#<id>=<input_name>}
7.3.4 {ONAME#<id>=<output_name>}
7.3.5 {INAME#<id>=?}
7.3.6 {ONAME#<id>=?}
7.3.7 {PNAME#<id>=!}
7.3.8 {INAME#<id>=!}
7.3.9 {ONAME#<id>=!}
MX DVI-Plus Series – User's Manual
Communication Setup Commands
Operation
Querying the IP Settings
Reloading the Default IP Settings
Setting a Dynamic IP Address
Network Components
Port Status Commands
Operation
Input Port Status
Output Port Status
Router Status Commands
Operation
Querying the Product Type
Querying the Serial Number
Querying the CPU FW version
Querying the CPU FW Compile Time
Installed I/O Boards
Querying the Controllers' Firmware
Querying the Current Protocol
Setting the Current Protocol
Viewing the Error List
Clearing the Error List
See in
Command
Section
7.4.1 {IP_CONFIG=?}
7.4.2 {IP_CONFIG=!}
7.4.3 {IP_CONFIG=D}
7.4.4 {LAN_VER=?}
See in
Command
Section
7.5.1 {:ISD}
7.5.2 {:OSD}
See in
Command
Section
7.6.1 {i}
7.6.2 {S}
7.6.3 {F}
7.6.4 {CT}
7.6.5 {IS}
7.6.6 {FC}
7.6.7 {P_?}
7.6.8 {P_1}
7.6.9 {ELIST=?}
7.6.10 {ELIST=!}
47
