Tx Setup in Packet Mode

The settings which follow are for use with EVAL-ADF7023DB1z daughter boards. If you are using a

different Daughter board, ensure that the frequency is set within the correct range of the board you are

using. Please refer to table x if you are unsure what the frequency range of you board is designed for.

Transmitter Board RF Settings

Ensure the S

"Current_State" is "PHY_ON" on the Second instance of the ADF7023 Software.

Refer to Connecting the Evaluation Boards section for setup procedures.

2. Select the "RF Settings" Tab (

3. Ensure "Packet mode" is selected. (

4. Set the "RF/Modulation" parameters as required. (

(Note : Ensure the Transmitter RF/Modulation parameters are the same as the Receiver RF/Modulation

parameters previously setup).

5. Set the "Transmitter" parameters as required. (

Arrow.com.

Downloaded from

econd ADF7023 Daughter board is correctly plugged into the Second Mother board and that the

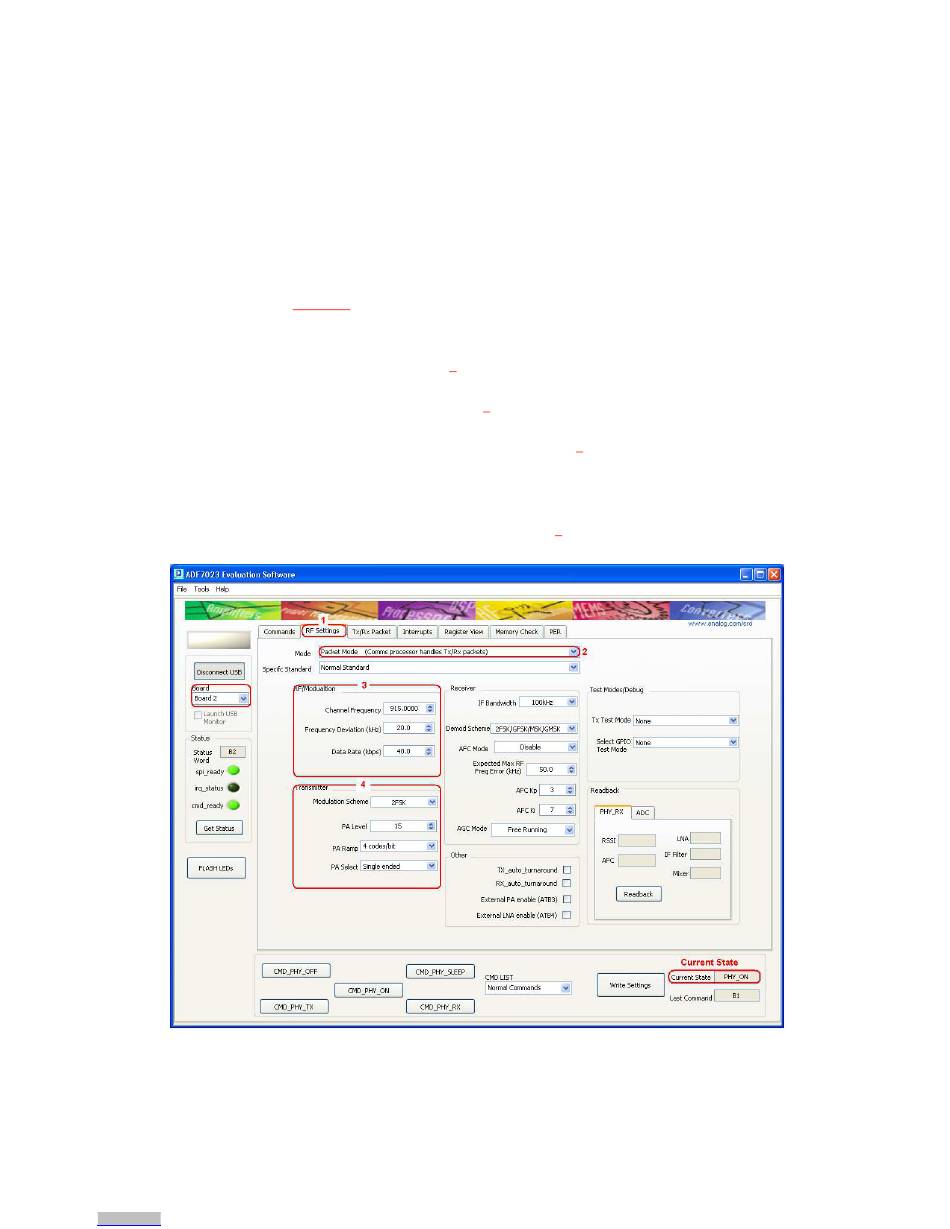

Figure 34
