Connecting Power
UNO-3285C takes 10Vdc-36 VDC power source. The power source can be from
either a power adapter or an in-house power source.
This product is intended to be supplied by a listed DC power source, rated at 10-
36Vdc, 8-2.5A, and a Tma 60°C, if further assistance is needed, please contact
Advantech.
3.2
Installation of iDOOR Module
UNO-3285C supports one iDOOR for various expansions. Please follow the diagram
below to install iDOOR modules into the system.
1.
Remove 8 x screws from the UNO base unit and carefully detach it.
UNO-3285C User Manual

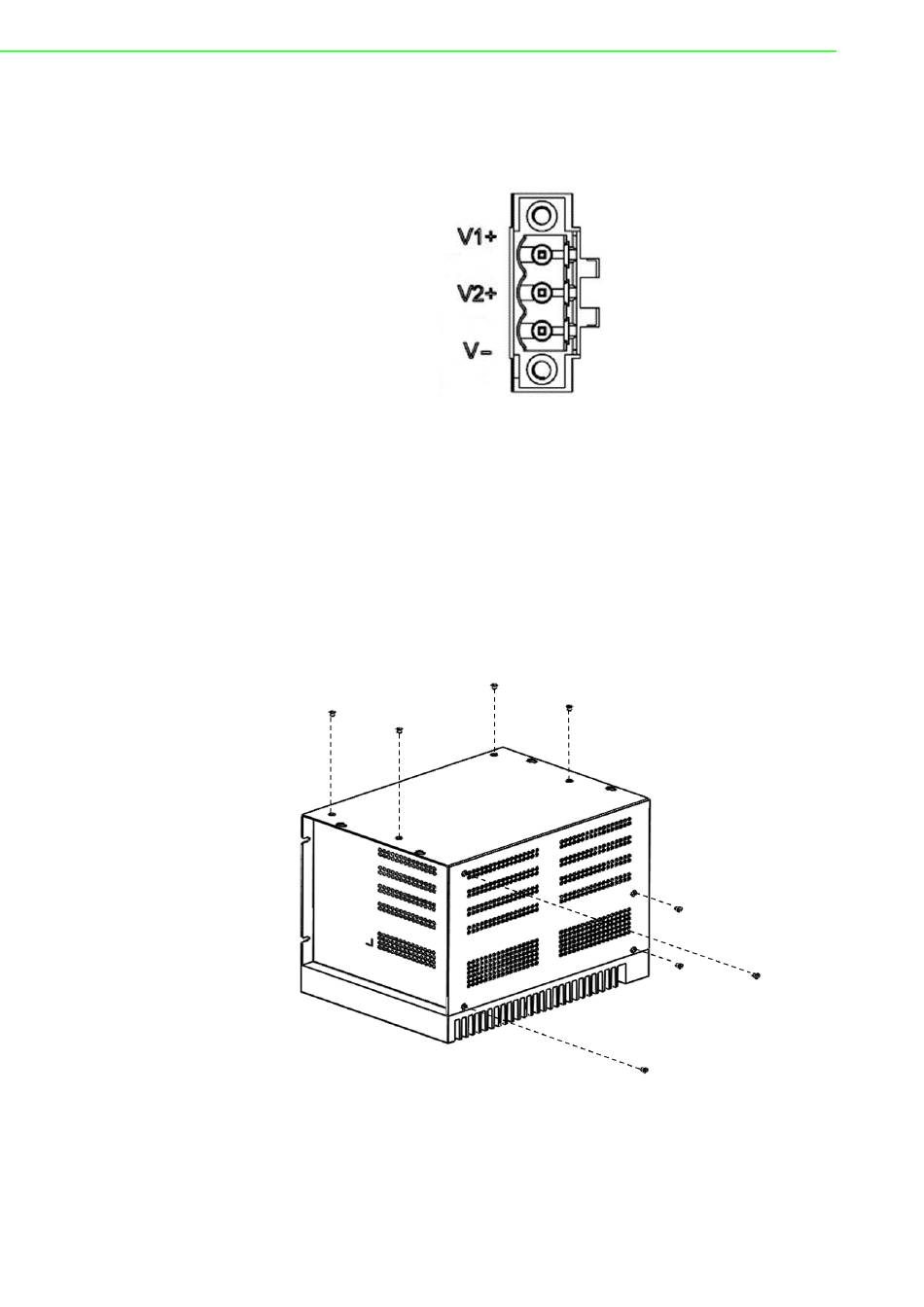

Figure 3.1 Power Connector
16
