3.4

Installing a PCI/ PCIe Card and Cfast Card

UNO-3285C provides four expansion slots for PCI/ PCIe cards and one internal
CFast slot for extending storage.

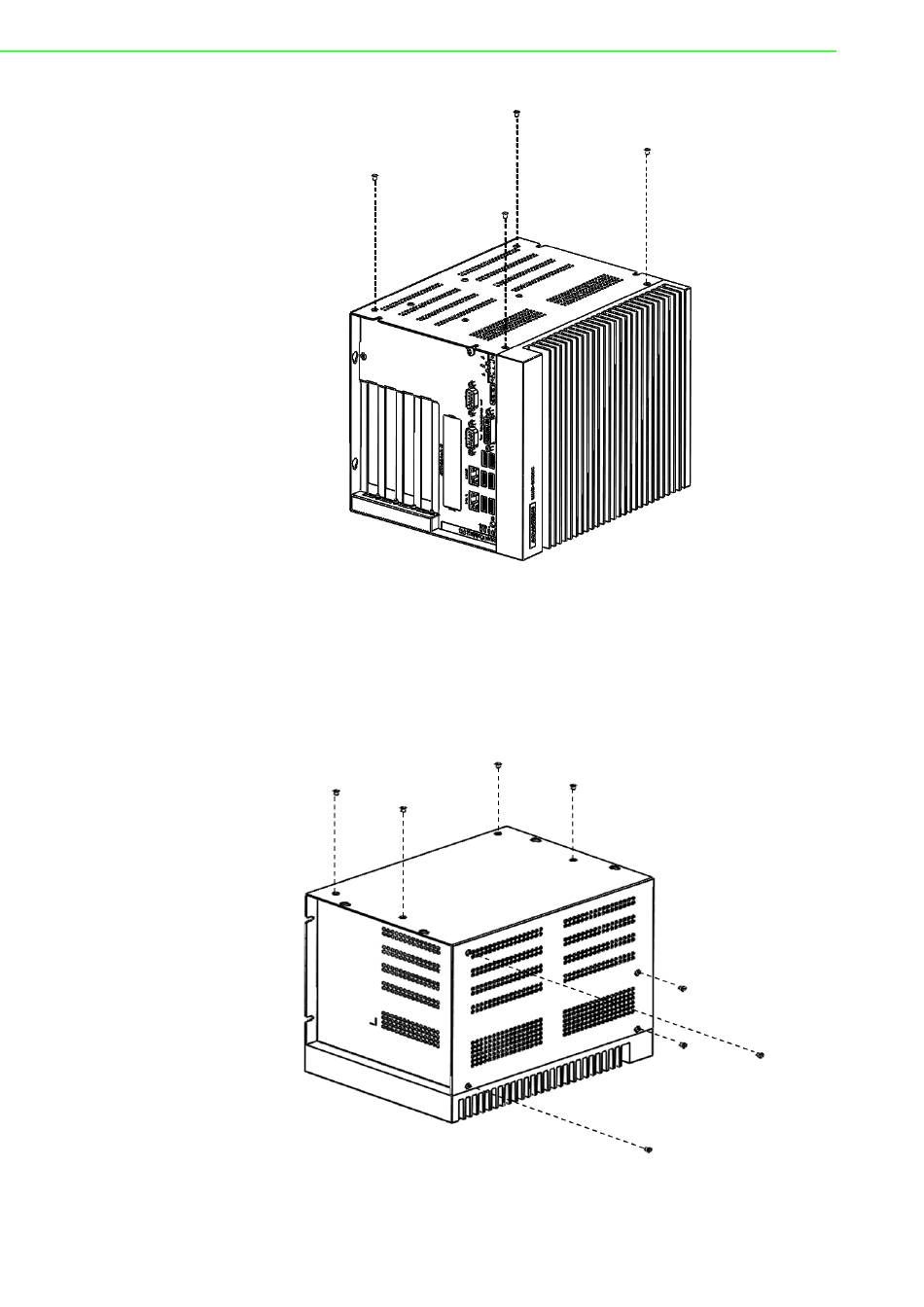

Follow the exploded diagram to install a PCI/ PCIe card and a CFast card.
1.
Remove 8 x screws from the UNO case.
UNO-3285C User Manual
20
