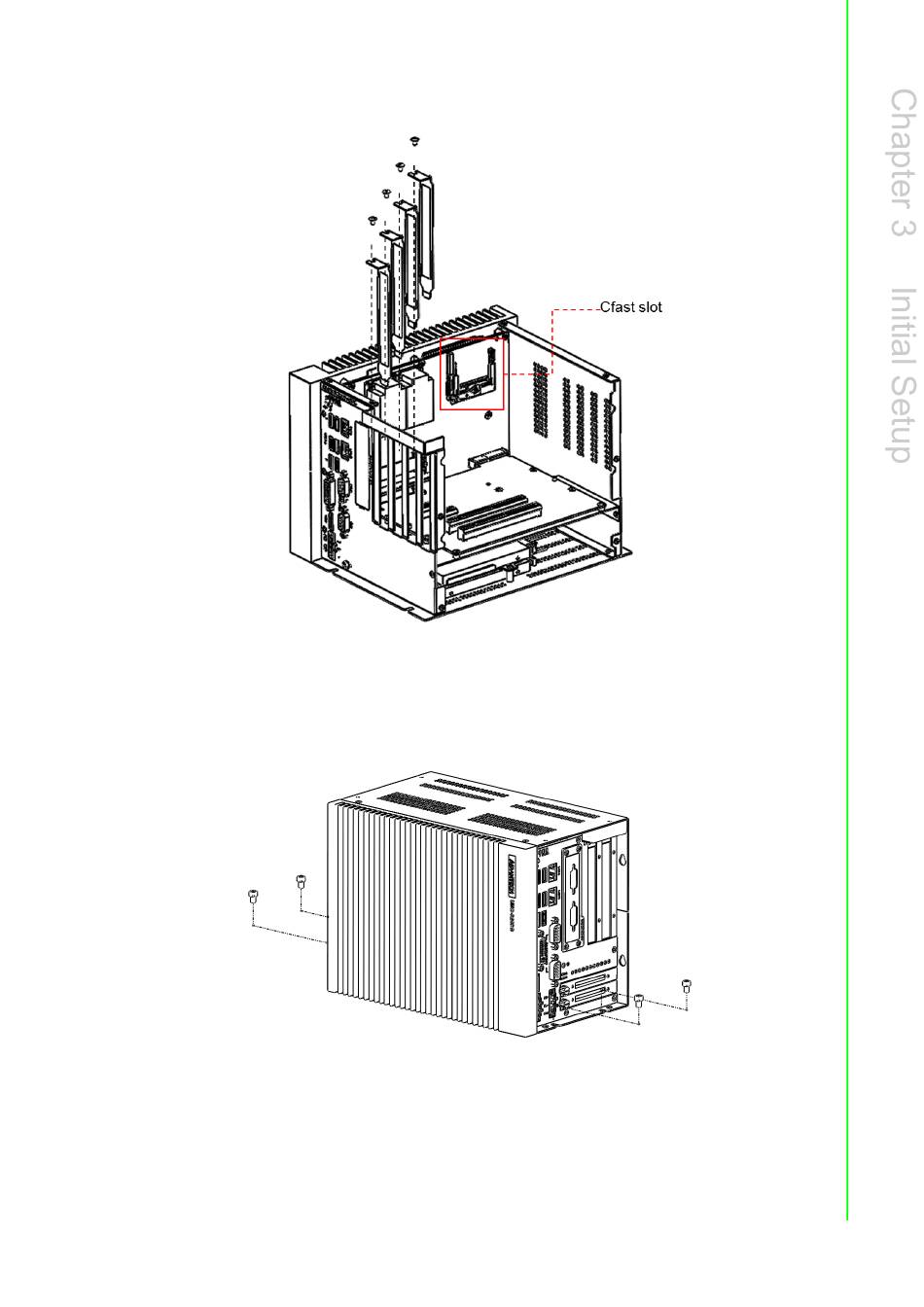

Insert the Cfast card into the Cfast slot.

3.5

Mounting UNO-3285C

UNO-3285C supports stand mounting shown in the following figures, please use M4

screws (head diameter:6.5~6.8mm) for fixing UNO-3285C.

Figure 3.2 Stand Mount
