Figure 2.3 Com Setting - Advantech UNO-3285C User Manual

Intel 6th gen. core i processors embedded automation pc, with pcie/pci extension slots
Hide thumbs
Table of Contents

Advertisement

SW1: COM1 RS232/422/485 mode setting
SW3: COM2 RS232/422/485 mode setting
SW2: COM1 RS422 Rx termination (pin1-pin2)
UNO-3285C User Manual

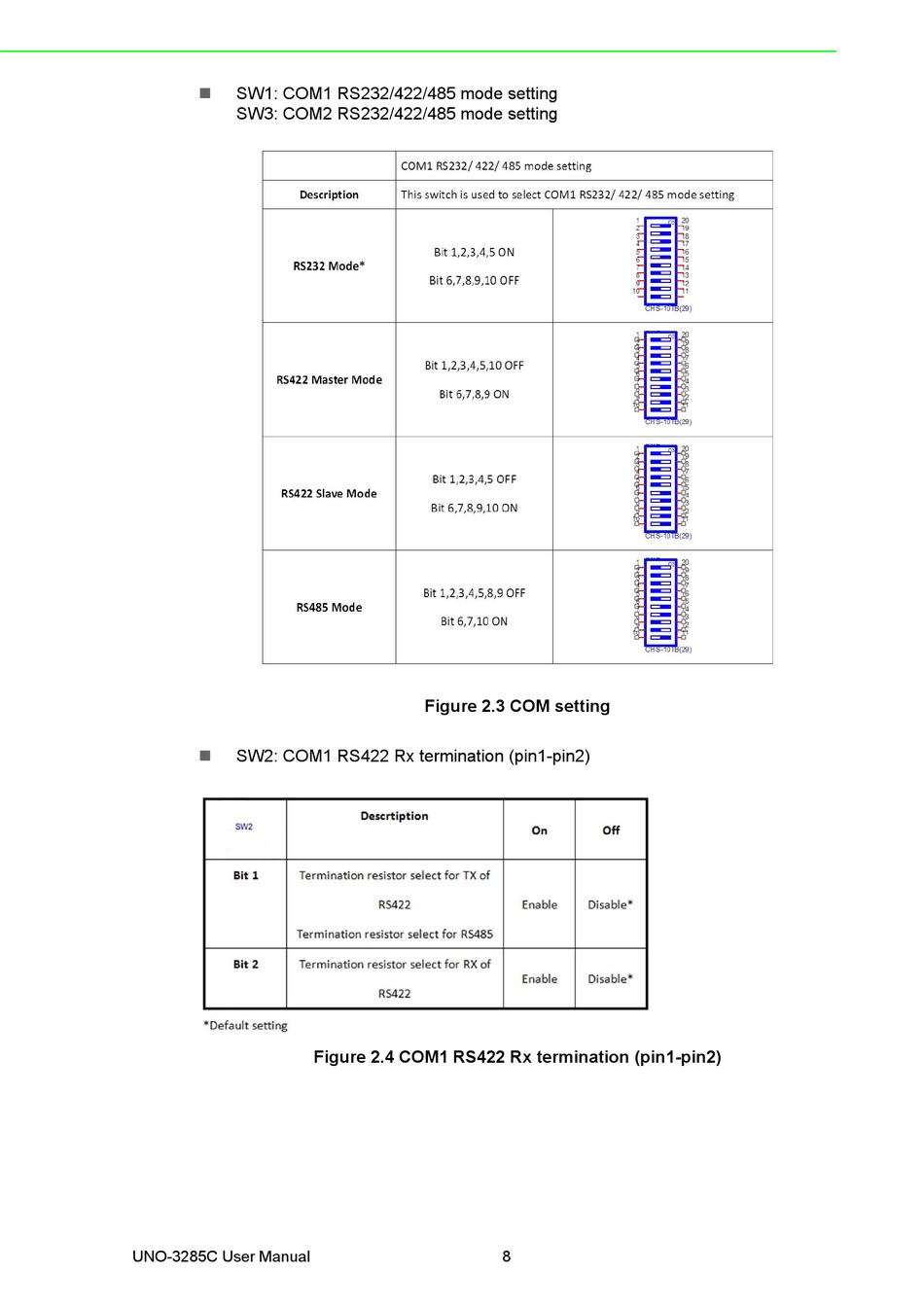

Figure 2.3 COM setting

Figure 2.4 COM1 RS422 Rx termination (pin1-pin2)
