Summary of Contents for Advantech UNO-3200G Series

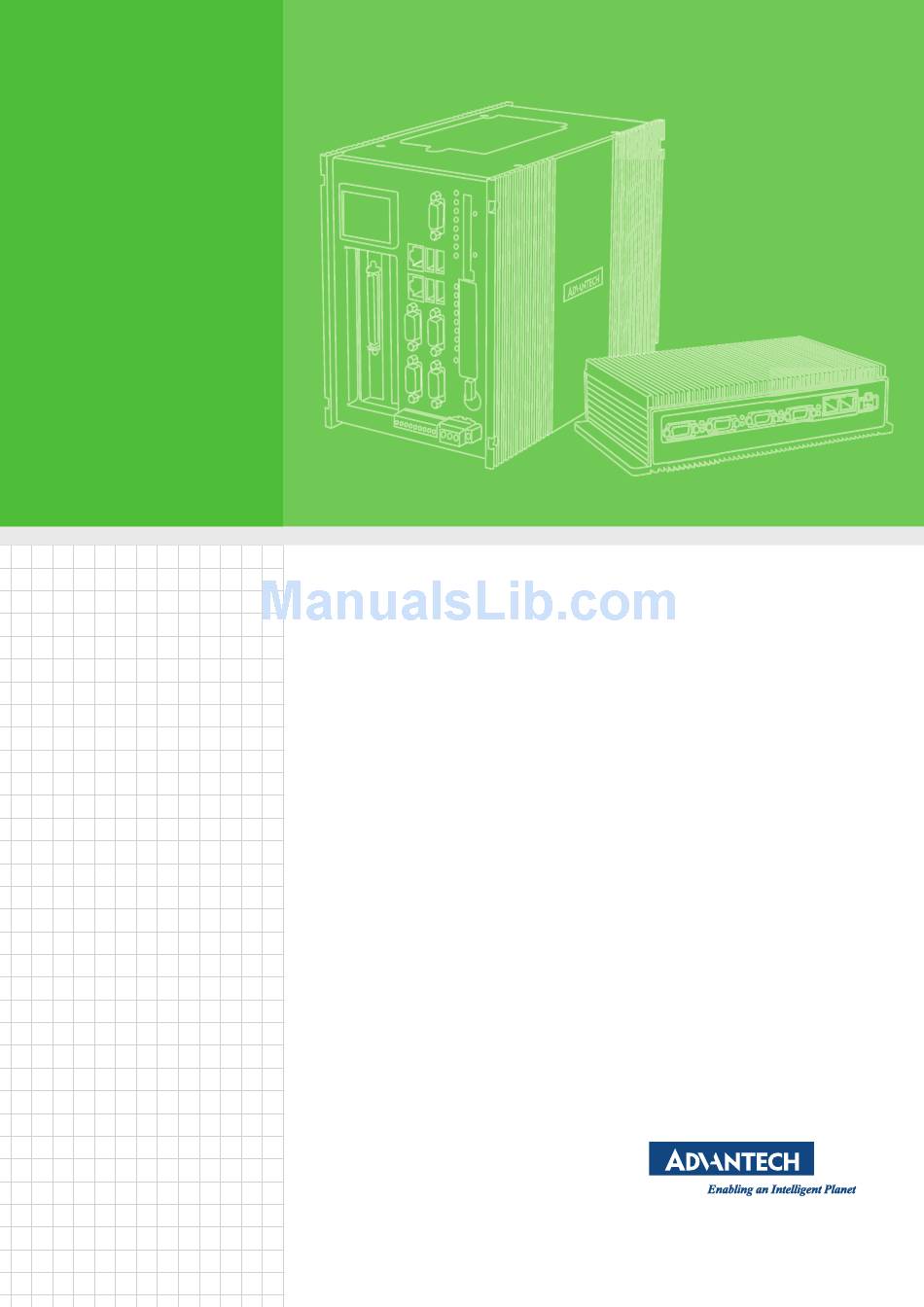

- Page 1 User Manual UNO-3200G Series 電腦 Intel® SKYLAKE-H Core® Processors Embedded Automation PC, with 2x PCI(e)/ PCI Extension Slots...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
-
Page 4: Declaration Of Conformity
This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. -
Page 5: Safety Instructions
The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 6 設備曾暴露在過度潮濕環境中使用； 設備無法正常工作，或您無法透過用戶手冊來正常工作； 設備摔落或損壞； 設備有明顯外觀損； 請勿將設備放置在超出建議溫度範圍的環境，即不要低於 ‐20 ℃ （‐4 ℉） 或高於 60 （140 ℉） ，否則可能會造成設備損壞。 ℃ 注意：若電池更換不正確，將有爆炸危險。因此，只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 本產品於國內裝置使用時，其電源僅限使用機架電源模組所提供直流電源輸入， 不得使用交流電源及附加其他電源轉換裝置提供電源，其電源輸入電壓及電流請 依說明書規定使用。 根據 IEC 704‐1:1982 規定，操作員所在位置音量不可高於 70 分貝。 限制區域：請勿將設備安裝於限制區域使用。 免責聲明：請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承 擔任何法律責任。 UNO-3200G Series User Manual...
- Page 7 RoHS Claim 設備名稱：電腦 型號 （型式） ：UNO-3200G Series Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 多溴聯苯 六價鉻 多溴二苯醚 單元 Unit Polybromina 鎘 Hexavalent Polybrominate 鉛 Lead 汞 Mercury Cadmium chromium d diphenyl (Pb) (Hg) (Cd) biphenyls...
- Page 8 UNO-3200G Series User Manual viii...
-
Page 9: Table Of Contents
Installing an Interface Card or CFast Card..........21 Mounting UNO-3283G Series ..............22 Figure 3.2 Stand Mount ............. 22 Figure 3.3 Enclosure Mount............22 Figure 3.4 Wall Mount (01) ............23 Figure 3.5 Wall Mount (02) ............23 UNO-3200G Series User Manual... - Page 10 VO1 reserve for power output, the voltage is same as power input ..38 Table A.12:VO1 reserve for power output, the voltage is same as power input............... 38 A.14 CN1 Internal 12V power for PCI/PCIe ............ 39 Table A.13:CN1 Internal 12V power for PCI/PCIe...... 39 UNO-3200G Series User Manual...
-
Page 11: Chapter 1 Overview
Chapter Overview This chapter provides an overview of UNO-3283G series' specifica- tions. Sections include: Introduction Hardware specification Safety precautions Chassis dimensions Accessories... -
Page 12: Introduction
Power Requirements: 10Vdc-36Vdc, support AT/ATX power mode BIOS AT simulation mode (support system reboot automatically after power recovery) Weight: UNO-3283G 4.5 kg OS Support: Windows7/8, WES7, Win10 Enterprise LTSB, AdvLinux System Design: Fanless UNO-3200G Series User Manual... -
Page 13: System Hardware
Displays: 1 x HDMI, supports 1920 x 1080 @ 24 Hz 24 bpp; 1 x DVI-I, supports 1920 x 1080 @ 60 Hz 24 bpp & 2 independent displays Power Connector: 1 x 3 pin, terminal block UNO-3200G Series User Manual... -
Page 14: Environment
Caution! Always ground yourself to remove any static electric charge before touching UNO-3283G series. Modern electronic devices are very sensi- tive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag. UNO-3200G Series User Manual... -
Page 15: Chassis Dimensions
Please refer to the below accessories list for UNO-3283G series. 2 × 3-pin plug-in block for power wiring & relay control 1 × Warranty card 1 × UNO series driver &utility DVD-ROM 1 × DVI- VGA connector UNO-3200G Series User Manual... - Page 16 UNO-3200G Series User Manual...
-
Page 17: Chapter 2 Hardware Functionality
Chapter Hardware Functionality This chapter shows how to setup UNO-3283G series' hardware functions, including connecting peripherals, setting switches and indicators. Sections include: Peripherals RS-232/422/485 Interface LAN / Ethernet Connector Power Connector Mini PCIe Socket Audio Connector ... -
Page 18: Introduction
Figure 2.1 UNO-3283G Front View Serial Interface (COM1/COM2) UNO-3283G series offer two standard RS-232/422/485 serial communication inter- face ports: COM1. The IRQ and I/O address of serial ports are listed as below. COM1 (Pin header CN3) COM2 (Pin header CN4) UNO-3200G Series User Manual... -
Page 19: Rs-232/422/485 Interface (Com1 & Com2)
So no handshaking sig- nal (e.g. RTS signal) is necessary. This lets you conveniently build an RS-485 network with just two wires. More importantly, application software previously written for half duplex RS-232 environments can be maintained without modification. UNO-3200G Series User Manual... -
Page 20: To Switch The Internal Sw1/Sw2/Sw3 According To The Placement
To switch the internal SW1/SW2/SW3 according to the placement SW1: COM1 RS232/422/485 mode setting SW3: COM2 RS232/422/485 mode setting Figure 2.3 COM setting SW2: COM1 RS422 Rx termination (pin1-pin2) Figure 2.4 COM1 RS422 Rx termination (pin1-pin2) UNO-3200G Series User Manual... -
Page 21: Lan: Ethernet Connector
The USB interface can be disabled in the system BIOS setup. Display Connector UNO-3283G series provide a HDMI and DVI-I controller for a high resolution inter- face. It supports up to full HD resolution for up to three independent displays. UNO-3200G Series User Manual... -
Page 22: Rtc Battery
RAM (S3), and Suspend to Disk (S4). 2.8.1 Power mode switch User can set AT/ATX mode in BIOS setup menu "Chipset\State After G3". [S0 State]: AT mode [S5 State]: ATX mode Figure 2.6 AT/ATX Adjustment UNO-3200G Series User Manual... -
Page 23: Pci Express Mini Card Socket
PCI slot. The PCIe slot could provide user to install standard PCIe card compatible with PCIe x16, PCIe x8, PCIe x4, for example, USB expansion card, Ethernet expansion card...etc. Note! PCI/PCIe Card need supports wide temperature range(at least +70° C). UNO-3200G Series User Manual... -
Page 24: Sata Hdd Drive
Figure 2.8 SATA Mode Selection Press “F4” to save and exist the BIOS setup. Press “Ctrl+I” to enter RAID configuration utility when the Intel Rapid Storage Technology option ROM screen appears. Figure 2.9 Detecting a RAID configuration UNO-3200G Series User Manual... -
Page 25: Audio Jack
PWR: Green means normal, yellow is stand by. HDD: Flashing green during data read & write. RTC: Red means RTC voltage low. COM1 & COM2(Tx/Rx): Flashing green means signals are being transmitted and received. UNO-3200G Series User Manual... - Page 26 UNO-3200G Series User Manual...
-
Page 27: Chapter 3 Initial Setup
Chapter Initial Setup This chapter introduces how to initialize UNO-3000G series. Sections include: Chassis Grounding Connecting Power Connecting a Hard Disk BIOS Setup and System Assign- ments... -
Page 28: Connecting Power
Figure 3.1 Power Connector Inserting an iDoor Module UNO-3283G series have one iDoor for various expansions. Please follow the below exploded to install iDoor modules into the system. Remove the screws from the base plate and lift to remove. UNO-3200G Series User Manual... - Page 29 Insert & lock the mini-PCI card using screws. Replacing the blanking plate with the iDoor plate. Note! For iDoor POE or USB3.0 module, UNO-3200G provides an internal backup power (VO1) on system board. UNO-3200G Series User Manual...
-
Page 30: Installing A Hard Disk
Follow the steps below to install a HDD/SSD into the system. Release thumb screw and pull out the HDD/SSD bracket. Screw the HDD/SSD to the bracket. Put the bracket back & tighten the thumb screw. Note! Available 130 mm space upon HDD bracket. UNO-3200G Series User Manual... -
Page 31: Installing An Interface Card Or Cfast Card
3283G also provides one internal CFast slot for extending storage. Follow the exploded diagram to install an interface card or CFast card. Loosen the cover of the chassis. Insert your PCI/PCIe card or CFast card and secure it. CFast slot UNO-3200G Series User Manual... -
Page 32: Mounting Uno-3283G Series
UNO-3283G series have unique design in three mounting types, wall mount, stand mount & enclosure mount as three convenient mounting types, which are easier to installation. Below separate figures shows the capability of mounting: Figure 3.2 Stand Mount Figure 3.3 Enclosure Mount UNO-3200G Series User Manual... -
Page 33: Figure 3.4 Wall Mount (01)
Figure 3.4 Wall Mount (01) Figure 3.5 Wall Mount (02) UNO-3200G Series User Manual... - Page 34 UNO-3200G Series User Manual...
-
Page 35: System Settings And Pin Assignments
Appendix System Settings and Pin Assignments... -
Page 36: System I/O Address And Interrupt Assignment
Communications Port (COM1) IRQ5 Available IRQ6 Available IRQ7 EC Watch DOG IRQ8 System CMOS/real time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Available IRQ12 PS/2 Compatible Mouse IRQ13 Numeric data processor IRQ14 Primary IDE IRQ15 Secondary IDE UNO-3200G Series User Manual... -
Page 37: Board Connectors And Switches
There are several connectors and switches on the inside board. The following sec- tions tell you how to configure the hardware setting. Figure A.1 shows the locations of the connectors and switches. Figure A.1 Bottom view of System Board UNO-3200G Series User Manual... -
Page 38: Function Of Connectors & Switches
Power Switch Reset HDMI Audio CN10 LAN & 2 x External USB3.0 CN11 LAN & 2 x External USB3.0 CN12 External USB3.0 x 2 CN19 Mini PCIE CN20 Mini PCIE or mSATA CN24 Power input & Relay UNO-3200G Series User Manual... -
Page 39: Audio (Pin Header)
Audio (Pin header) Table A.3: CN9 Audio Pin Name LOUTR LOUTL LOUT_JD LINR LINL LIN_JD MIC1R MIC1L MIC1_JD UNO-3200G Series User Manual... -
Page 40: Com1
COM1 Table A.4: CN3 COM1 Pin Name DCD#_DATA- RXD_DATA+ TXD_RX+ DTR#_RX- DSR# RTS# CTS# UNO-3200G Series User Manual... -
Page 41: Com2
COM2 Table A.5: CN4 COM2 Pin Name DCD#_DATA- RXD_DATA+ TXD_RX+ DTR#_RX- DSR# RTS# CTS# UNO-3200G Series User Manual... -
Page 42: Com3/Com4
COM3/COM4 Table A.6: CN5 COM3/COM4 Pin Name DCD# DSR# RTS# CTS# DTR# DCD# DSR# RTS# CTS# DTR# COM4 COM4 UNO-3200G Series User Manual... -
Page 43: Power Connector (Pwr)
Table A.8: Relay Connector (PWR) RL + Relay Normal Open RL - Relay COM Case Ground A.10 SW7 Power Switch Table A.9: SW4 Power Switch Part Number 1600000049 Footprint SW-TP33WS83565 Description RESET SW ES-26A-K-T/R-H SMD 4p Pin Name PSIN UNO-3200G Series User Manual... -
Page 44: Cn19/Cn20 Mini Pcie
Table A.9: SW4 Power Switch A.11 CN19/CN20 Mini PCIE Table A.10: CN19/CN20 Mini PCIE Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP PU3.3_AUX PERST# PERn0 +3.3VSB PERp0 UNO-3200G Series User Manual... - Page 45 Table A.10: CN19/CN20 Mini PCIE +1.5V SMB_CLK PETn0 SMB_DAT PETp0 USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB UNO-3200G Series User Manual...
-
Page 46: Cn19 Msata
A.12 CN19 mSATA Table A.11: CN19 mSATA Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP PU3.3_AUX PERST# SATA_RX+ +3.3VSB UNO-3200G Series User Manual... - Page 47 Table A.11: CN19 mSATA SATA_RX- +1.5V SMB_CLK SATA_TX- SMB_DAT SATA_TX+ USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB UNO-3200G Series User Manual...
-
Page 48: Vo1 Reserve For Power Output, The Voltage Is Same As Power Input
A.13 VO1 reserve for power output, the voltage is same as power input Table A.12: VO1 reserve for power output, the voltage is same as power input Pin Name Note! This connector support max 2 A. UNO-3200G Series User Manual... -
Page 49: Cn1 Internal 12V Power For Pci/Pcie
A.14 CN1 Internal 12V power for PCI/PCIe This connector support 12V(3A). Table A.13: CN1 Internal 12V power for PCI/PCIe Name UNO-3200G Series User Manual... - Page 50 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
