A.9

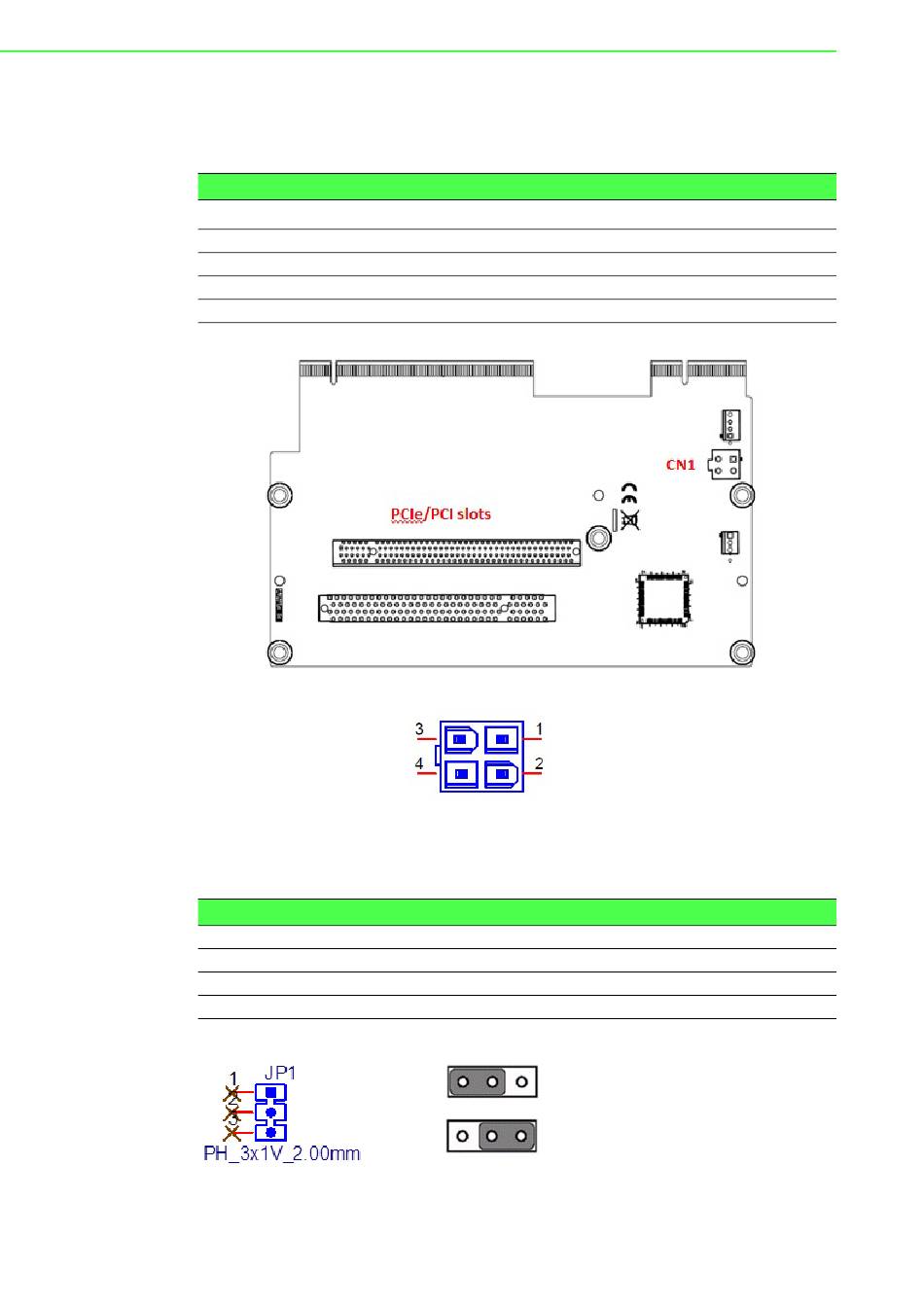

CN1 Internal 12V power for PCI/PCIe
This connector support 12V(3A).
Table A.9: CN1 Internal 12V power for PCI/PCIe
Pin
1
2
3
4
A.10
CMOS Clear Function (JP1)
Table A.10: CMOS Clear Function
Description
Default
(2-3)
(1-2)
UNO-3285C User Manual
Name
GND
GND
12V
12V
This jumper is used to select CMOS Clear Enable/Disable
(1-2)
Enable (Clear CMOS)
Disable
32
(1-2) Disable
(2-3) Enable (Clear CMOS)
