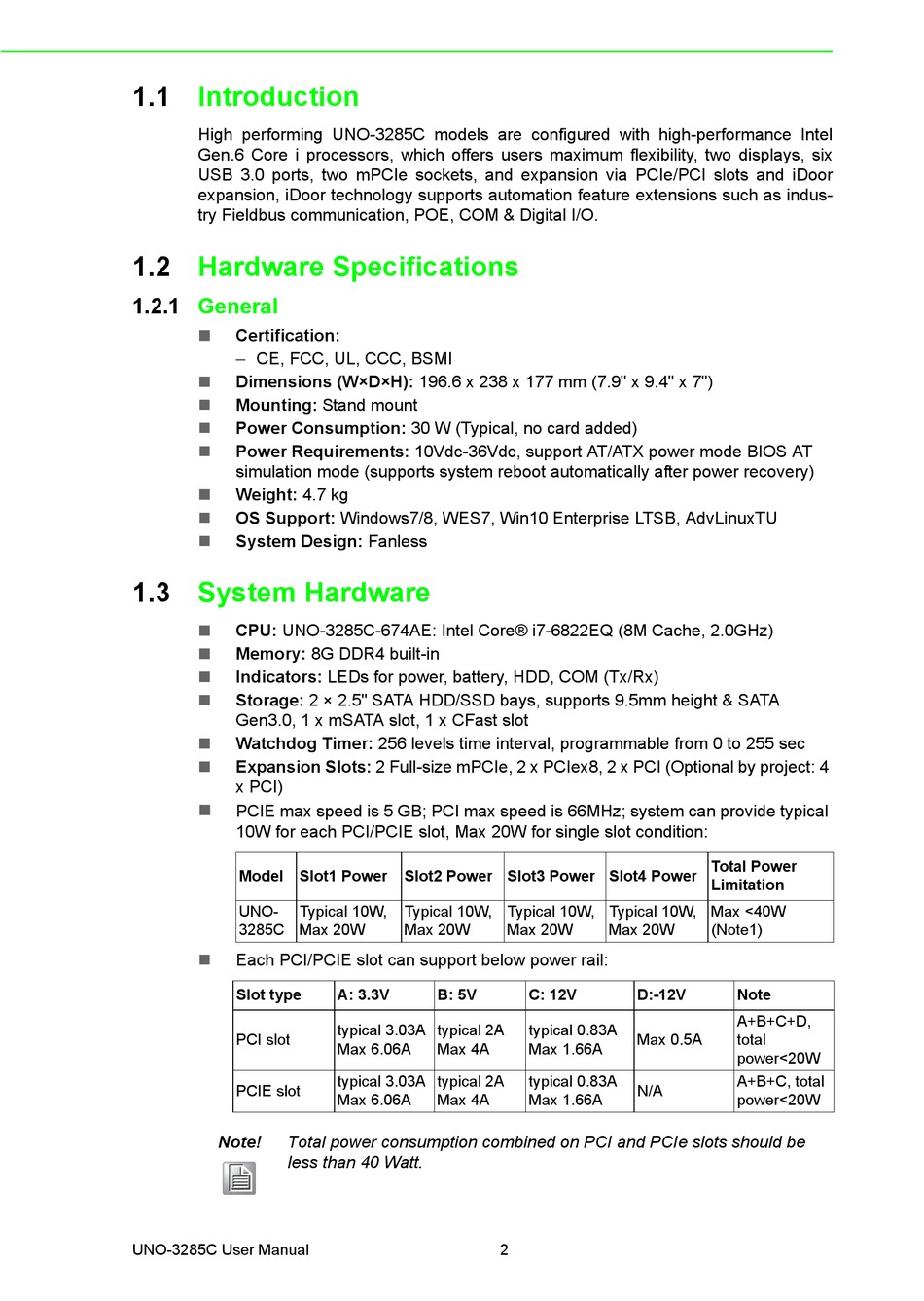

1.1

Introduction

High performing UNO-3285C models are configured with high-performance Intel
Gen.6 Core i processors, which offers users maximum flexibility, two displays, six
USB 3.0 ports, two mPCIe sockets, and expansion via PCIe/PCI slots and iDoor
expansion, iDoor technology supports automation feature extensions such as indus-
try Fieldbus communication, POE, COM & Digital I/O.
1.2

Hardware Specifications

1.2.1

General

 Certification:
– CE, FCC, UL, CCC, BSMI
Dimensions (W×D×H): 196.6 x 238 x 177 mm (7.9" x 9.4" x 7")

Mounting: Stand mount

 Power Consumption: 30 W (Typical, no card added)
 Power Requirements: 10Vdc-36Vdc, support AT/ATX power mode BIOS AT
simulation mode (supports system reboot automatically after power recovery)
 Weight: 4.7 kg
 OS Support: Windows7/8, WES7, Win10 Enterprise LTSB, AdvLinuxTU
 System Design: Fanless
1.3

System Hardware

 CPU: UNO-3285C-674AE: Intel Core® i7-6822EQ (8M Cache, 2.0GHz)
 Memory: 8G DDR4 built-in
Indicators: LEDs for power, battery, HDD, COM (Tx/Rx)

Storage: 2 × 2.5" SATA HDD/SSD bays, supports 9.5mm height & SATA

Gen3.0, 1 x mSATA slot, 1 x CFast slot
 Watchdog Timer: 256 levels time interval, programmable from 0 to 255 sec
 Expansion Slots: 2 Full-size mPCIe, 2 x PCIex8, 2 x PCI (Optional by project: 4
x PCI)

PCIE max speed is 5 GB; PCI max speed is 66MHz; system can provide typical
10W for each PCI/PCIE slot, Max 20W for single slot condition:
Model Slot1 Power
UNO- Typical 10W,
3285C Max 20W
 Each PCI/PCIE slot can support below power rail:
Slot type
PCI slot
PCIE slot
Note! Total power consumption combined on PCI and PCIe slots should be
less than 40 Watt.
UNO-3285C User Manual
Slot2 Power Slot3 Power Slot4 Power
Typical 10W, Typical 10W,
Max 20W Max 20W
A: 3.3V B: 5V
typical 3.03A typical 2A
Max 6.06A Max 4A
typical 3.03A typical 2A
Max 6.06A Max 4A
2
Typical 10W,
Max 20W
C: 12V D:-12V
typical 0.83A
Max 0.5A
Max 1.66A
typical 0.83A
N/A
Max 1.66A
Total Power
Limitation
Max <40W
(Note1)
Note
A+B+C+D,
total
power<20W
A+B+C, total
power<20W
