Advantech UNO-2362G Series User Manual

Advantech UNO-2362G Series User Manual

Automation computer with amd dual core t40e processors,1 x gbe, 1 x mpcie, and hdmi/dp

Advertisement

User Manual
UNO-2362G
嵌入式工業電腦
Automation Computer with
®
AMD
Dual Core T40E
Processors,1 x GbE, 1 x mPCIe,
and HDMI/DP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNO-2362G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech UNO-2362G Series

  • Page 1 User Manual UNO-2362G 嵌入式工業電腦 Automation Computer with ® Dual Core T40E Processors,1 x GbE, 1 x mPCIe, and HDMI/DP...
  • Page 2 限用物質含有情況標示聲明書 Declaration of the Containment of Restricted Substances 設備名稱 : 嵌入式工業電腦 型號 ( 型式 ):UNO-2362G ( 系列型號請參見次頁說明書 ) Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 單元 Unit Lead Mercury Cadmium Hexavalent Polybrominated...
  • Page 3 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 5 Technical Support and Assistance Visit the Advantech website at support.advantech.com/ where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 6 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 7 安全指示 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前,請從插座拔下電源線。請不要使用液體或去汙噴霧劑清洗 設備。 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 請不要在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上,意外跌落可能會導致設備損壞。 設備外殼的開口是用於空氣對流,從而防止設備過熱。請不要覆蓋這些開口。 當您連接設備到電源插座上前,請確認電源插座的電壓是否符合要求。 將電源線佈置在人們不易絆到的位置,並不要在電源線上覆蓋任何雜物。 請注意設備上的所有警告和注意標語。 如果長時間不使用設備,請將其同電源插座斷開,避免設備被超標的電壓波動損 壞。 請不要讓任何液體流入通風口,以免引起火災或者短路。 請不要自行打開設備。為了確保您的安全,請由經過認證的工程師來打開設備。 如遇下列情況,請由專業人員來維修: 電源線或者插頭損壞; 設備內部有液體流入; 設備曾暴露在過於潮濕的環境中使用; 設備無法正常工作,或您無法通過用戶手冊來使其正常工作; 設備跌落或者損壞; 設備有明顯的外觀破損。 請不要把設備放置在超出我們建議的溫度範圍的環境,即不要低於 -20°C (-4°F)或高於 60°C (140°F) ,否則可能會損壞設備。 注意:若電池更換不正確,將有爆炸危險。因此,只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 根據 IEC 704‐1:1982 規定,操作員所在位置音量不可高於 70 分貝。 限制區域:請勿將設備安裝於限制區域使用。 免責聲明:請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承 擔任何法律責任。...
  • Page 8 UNO-2362G User Manual viii...
  • Page 9: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Hardware Specifications ................2 1.2.1 General ..................2 System Hardware..................3 1.3.1 I/O Interfaces ................3 1.3.2 Environment.................. 3 Safety Precautions ..................4 Chassis Dimensions.................. 4 Figure 1.1 UNO-2362G Chassis Dimensions ......4 Accessories....................5 Chapter Hardware Functionality.......7...
  • Page 10 Power Connector (PWR) ................ 23 Table A.5: Power connector pin assignments ......23 USB Connector ..................23 Table A.6: USB 2.0 Connector Pin Assignments....... 23 HDMI Display Connector ................ 24 Table A.7: HDMI Display Connector.......... 24 DisplayPort Display Connector ............... 25 Table A.8: DisplayPort adaptor cable pin assignment ....
  • Page 11: Chapter 1 Overview

    Chapter Overview This chapter overviews UNO- 2362G’s specifications. Sections include:  Introduction  Hardware specification  Safety precautions  Chassis dimensions...
  • Page 12: Introduction

    Power Consumption: 14W(Typical)/24W(Max)  Power Requirements: 24V+-15% @1A, AT/ATX  Weight: 1.0 kg (2.2 lb)  OS Support: Windows XP/7/8, WES7, Linux Fedora  System Design Fanless  Remote Management: Built-in Advantech DiagAnywhere agent on WES7  UNO-2362G User Manual...
  • Page 13: System Hardware

    System Hardware ® CPU: AMD G-series T40E 1.0GHz dual core (Socket: BGA413)  Memory: 2 GB DDR3 SDRAM built-in  Indicators: LEDs for power, battery, LAN (Active, Status) and HDD  Storage:  HDD:1 x drive bay for SATA 2.5" HDD (Compatible with 9.5 mm (3.74 in) height HDD) (Optional) mSATA: 1 x Full Size Mini PCIe (Optional) CFast drive by iDoor Technology (Optional)
  • Page 14: Safety Precautions

    Safety Precautions The following sections describe how to make each connection. In most cases, you will simply need to connect a standard cable. Warning! Always disconnect the power cord from your chassis whenever you are working on it. Do not connect while the power is on. A sudden rush of power can damage sensitive electronic components.
  • Page 15: Accessories

    Accessories Please refer below for the accessory list: 2-pin connector for power wiring (Advantech P/N: 1652002205)  SATA cable (power and signal) (Advantech P/N: 1700022118-01)  1 PCS jumper (Advantech P/N: 1653302122)  4 PCS screws for HDD (Advantech P/N:1930000687) ...
  • Page 16 UNO-2362G User Manual...
  • Page 17: Chapter 2 Hardware Functionality

    Chapter Hardware Functionality This chapter details how to setup the UNO-2362G’s hardware func- tions, including connecting peripherals, setting switches, and indicators. Sections include:  Introduction  RS-232 Interface  RS-485 Interface  LAN / Ethernet Connector  Power Connector  USB Connector ...
  • Page 18: Introduction

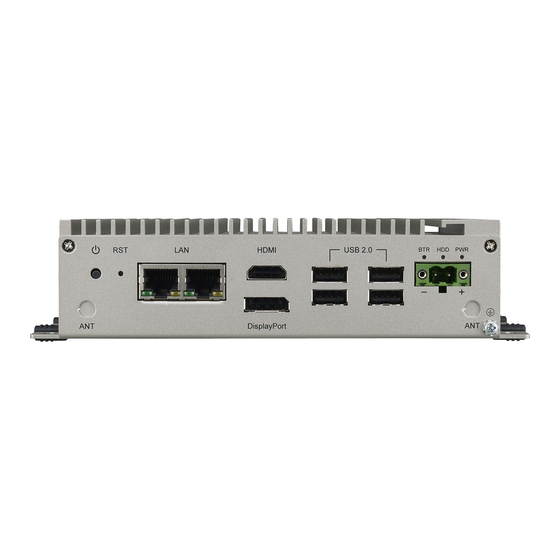

    Introduction The following figures show the connectors on UNO-2362G. The following sections detail information about each peripheral. Figure 2.1 Front Panel of UNO-2362G Figure 2.2 Rear Panel of UNO-2362G UNO-2362G Interface (COM1~COM2) UNO-2362G offers one standard RS-232 and one RS-485 (with cable) serial commu- nication interface ports: COM1 ~ COM2.
  • Page 19: Lan: Ethernet Connector

    LAN: Ethernet Connector UNO-2362G is equipped with one Gigabit LAN controller. The controller chip used is the Realtek 8111E Ethernet controller with Marvell 88E6172 Giga Ethernet switch with daisy chain technology that is fully compliant with IEEE 802.3u 10/100Base-T CSMA/CD standards and IEEE 802.3ab specification for 1000Mbps Ethernet. The Ethernet port provides two standard RJ-45 jacks on board, and LED indicators on the front side to show its Link (100Mbps orange LED, 1000Mbps green LED) and Active (flashing green LED) status.
  • Page 20: Rtc Battery Specification

    RTC Battery Specification UNO-2362G features a RTC Battery to ensure the BIOS settings and system clock can be kept if the power is disconnected for a short time. Type: BR2032 (Using CR2032 is NOT recommended)  Output Voltage: 3 V ...
  • Page 21: Pci Express Mini Card Socket

    2.10 PCI Express Mini Card Socket The UNO-2362G supports two sockets for full size PCI Express mini cards. The first interface (CN5) is the default defined for mSATA storage.The second (CN33) inter- face supports iDoor technology/module for applications that require an isolated COM port, Profibus, WLAN GPRS, 3G, mRAM and so on.
  • Page 22 UNO-2362G User Manual...
  • Page 23: Chapter 3 Initial Setup

    Chapter Initial Setup This chapter details instructions on initializing the UNO-2362G. Sections include:  Inserting a mSATA  Chassis Grounding  Connecting Power  Installing a Hard Disk  Installing a wireless LAN card and Antenna  BIOS Setup...
  • Page 24: Inserting A Msata

    Inserting a mSATA Remove the power cord. Unscrew the six screws on the bottom cover. Plug a mSATA card with your OS and application program into the first mPCIe slot(CN5). Screw the two screws on board to fix the mSATA. Screw the bottom cover back on.
  • Page 25: Installing A Hard Disk

    Installing a Hard Disk The procedure for installing a hard disk into the UNO-2362G is displayed below. Please follow these steps carefully. Please note: the system is not compatible with +12V HDD. Please use an HDD with a lower power input. Remove the power cord.
  • Page 26: Bios Setup

    Return the bottom cover using four screws. BIOS Setup Press “F2” in the boot-up screen to enter the BIOS setup utility. Please follow the instructions on the screen to make the necessary settings. Please note that you can try to “Restore Defaults” from the BIOS Setup manual if the UNO-2362G does not work properly.
  • Page 27: Din Rail Kit Assembly

    (Advantech P/N: UNO-DIN11-AE) and assemble it using the instructions below. Daisy Chain for Ethernet The UNO-2362G series saves time and money by providing an alternative way to hook up your Ethernet switches. Since each UNO-2362G unit has built-in Ethernet switches, the solution is tailor-made for a daisy-chain type configurations.
  • Page 28 UNO-2362G User Manual...
  • Page 29: Appendix A System Setting & Pin Assignment

    Appendix System Settings and Pin Assignments...
  • Page 30: System I/O Address And Interrupt Assignment

    System I/O Address and Interrupt Assignment Table A.1: Interrupt Assignments Interrupt No. Interrupt Source Parity Error Detected IRQ 0 Interval timer IRQ 1 Keyboard IRQ 2 Interrupt from controller 2 (cascade) IRQ 3 COM 2 IRQ 4 COM 1 IRQ 8 Real-time clock IRQ 9 Microsoft ACPI-Compliant System...
  • Page 31: Board Connectors And Jumpers

    Board Connectors and Jumpers There are several connectors and jumpers on the UNO-2362G board. The following sections tell you how to configure the UNO-2362G hardware setting. Figure A.1 shows the locations of UNO-2362G’s connectors and jumpers. Figure A.1 Connector & Jumper Locations (front) Table A.2: Connectors and Jumpers Label Function...
  • Page 32: Rs-232 Standard Serial Port

    RS-232 Standard Serial Port Table A.3: RS-232 Serial Port Pin Assignments Pin Name RS-485 Serial Port (COM2) Table A.4: RS-485 Serial Port Pin Assignments RS-485 Data- Data+ UNO-2362G User Manual...
  • Page 33: Power Connector (Pwr)

    Power Connector (PWR) Table A.5: Power connector pin assignments V+ (24+-15%) USB Connector Table A.6: USB 2.0 Connector Pin Assignments Signal Name Cable Color DATA- White DATA+ Green Black UNO-2362G User Manual...
  • Page 34: Hdmi Display Connector

    HDMI Display Connector Table A.7: HDMI Display Connector Signal Signal TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved DDC/CEC/HEC Ground +5 V Power (max 50 mA) Hot Plug Detect UNO-2362G User Manual...
  • Page 35: Displayport Display Connector

    DisplayPort Display Connector Table A.8: DisplayPort adaptor cable pin assignment Signal Name ML_Lane 0 (p) ML_Lane 0 (n) ML_Lane 1 (p) ML_Lane 1 (n) ML_Lane 2 (p) ML_Lane 2 (n) ML_Lane 3 (p) ML_Lane 3 (n) CONFIG1 CONFIG2 AUX CH (p) AUX CH (n) Hot Plug Return...
  • Page 36: Clear Cmos (Jp2)

    Clear CMOS (JP2) This jumper is used to erase CMOS data and reset system BIOS information. Follow the procedures below to clear the CMOS. Turn off the system. Close jumper JP2 (2-3) to clear CMOS Wait for 5 seconds. Close jumper JP2 (1-2). Turn on the system.
  • Page 37 UNO-2362G User Manual...
  • Page 38 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2020...
