2.

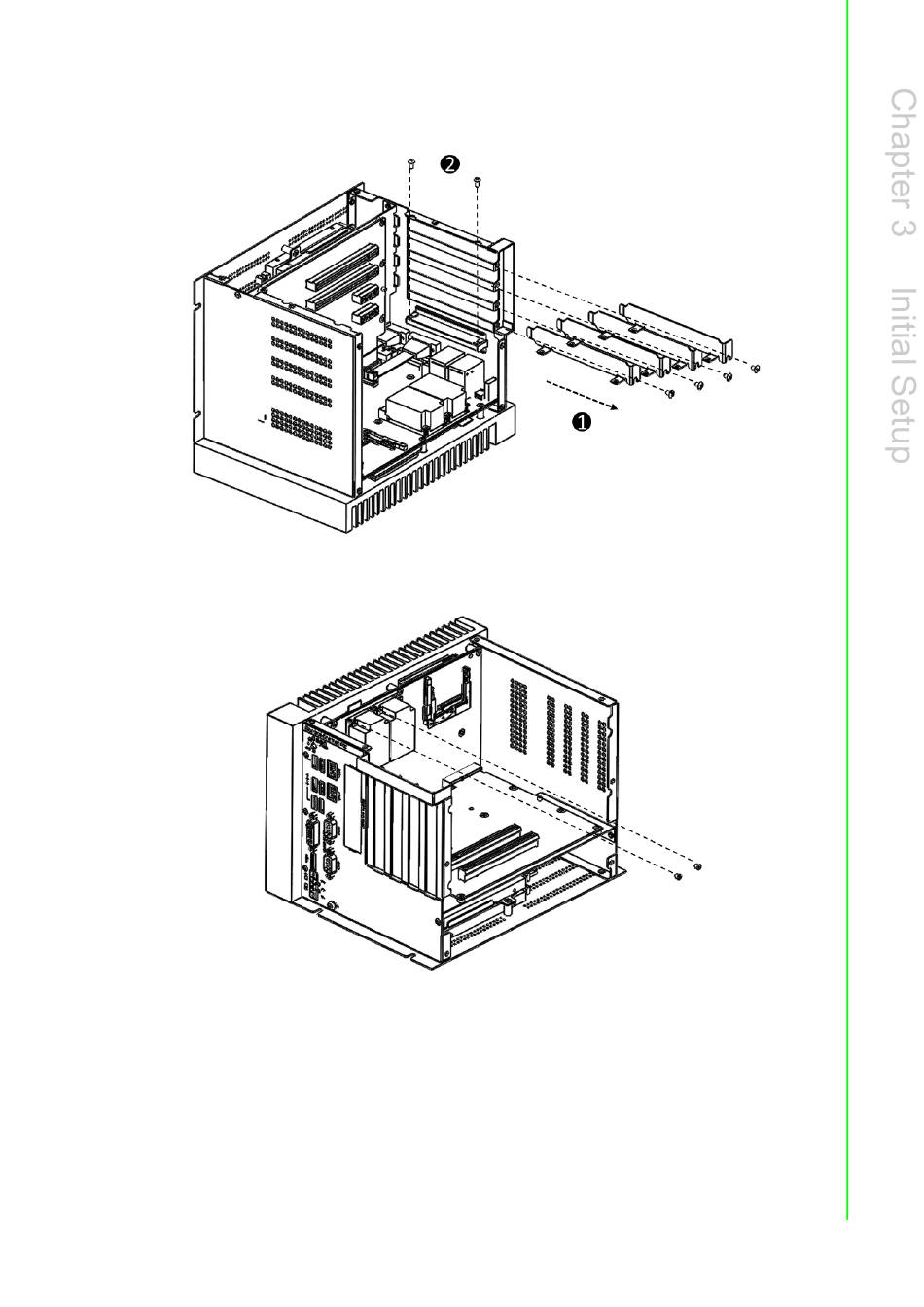

Remove the 4 x PCI/PCIe brackets and screws, and also the iDOOR bracket
and screws from UNO.
3.
Insert and affix the iDOOR mini-PCI card with screws in the accessory pack.
17
UNO-3285C User Manual
