7. Create a RAID volume in a RAID configuration utility.
8. Follow standard procedures to install OS into a RAID volume.
Note! 1.
2.
2.12

LED Indicators

There are LEDs to indicate the status of the system.
 PWR: Green means normal, yellow is stand by.
 HDD/SSD: Flashing green during data reads & write.
 RTC: Red means RTC voltage is low.
 COM1 & COM2(Tx/Rx): Flashing green means signals are being transmitted
and received.

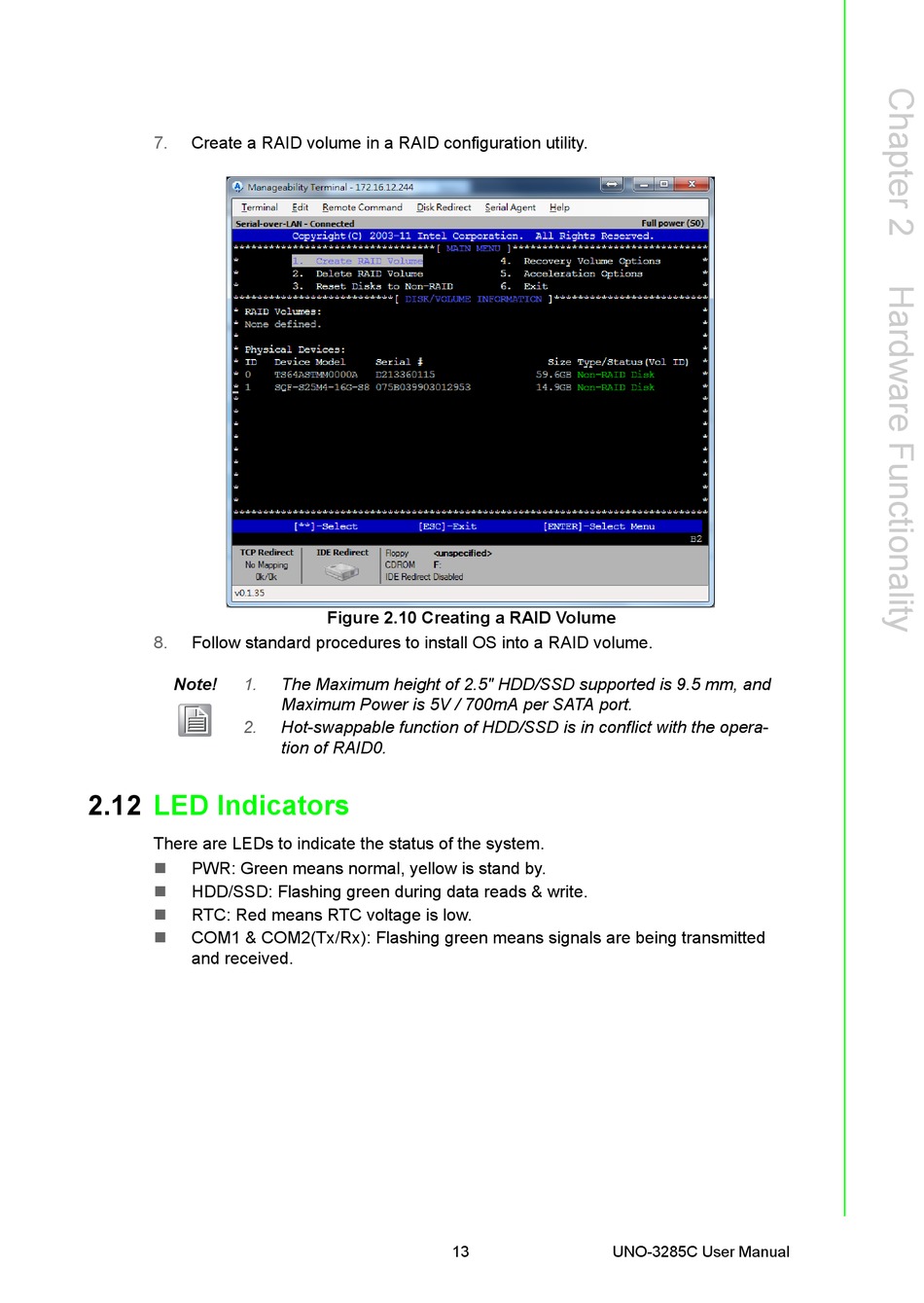

Figure 2.10 Creating a RAID Volume
The Maximum height of 2.5" HDD/SSD supported is 9.5 mm, and
Maximum Power is 5V / 700mA per SATA port.
Hot-swappable function of HDD/SSD is in conflict with the opera-
tion of RAID0.
