2.11
SATA HDD/SSD Drive
UNO-3285C supports two 2.5" SATA HDD/SSD bays with up to 6Gbps speed. It also
supports RAID0 and RAID1. The RAID function should be enabled in BIOS setup
before you install an operating system into a RAID volume. Users can enable the
RAID function in the BIOS sub-menu "Advanced\SATA Configuration".
Please follow the below steps to create a RAID volume.
1.
Mount two SATA HDD/SSD in the system.
2.
Power on the system.
3.
Press "F2" to enter into BIOS setup during POST.
4.
Enable RAID mode in BIOS setup menu "Advanced\SATA Configuration".
5.
Press "F4" to save and exist the BIOS setup.
6.
Press "Ctrl+I" to enter the RAID configuration utility when the Intel Rapid Stor-
age Technology option ROM screen appears.
UNO-3285C User Manual

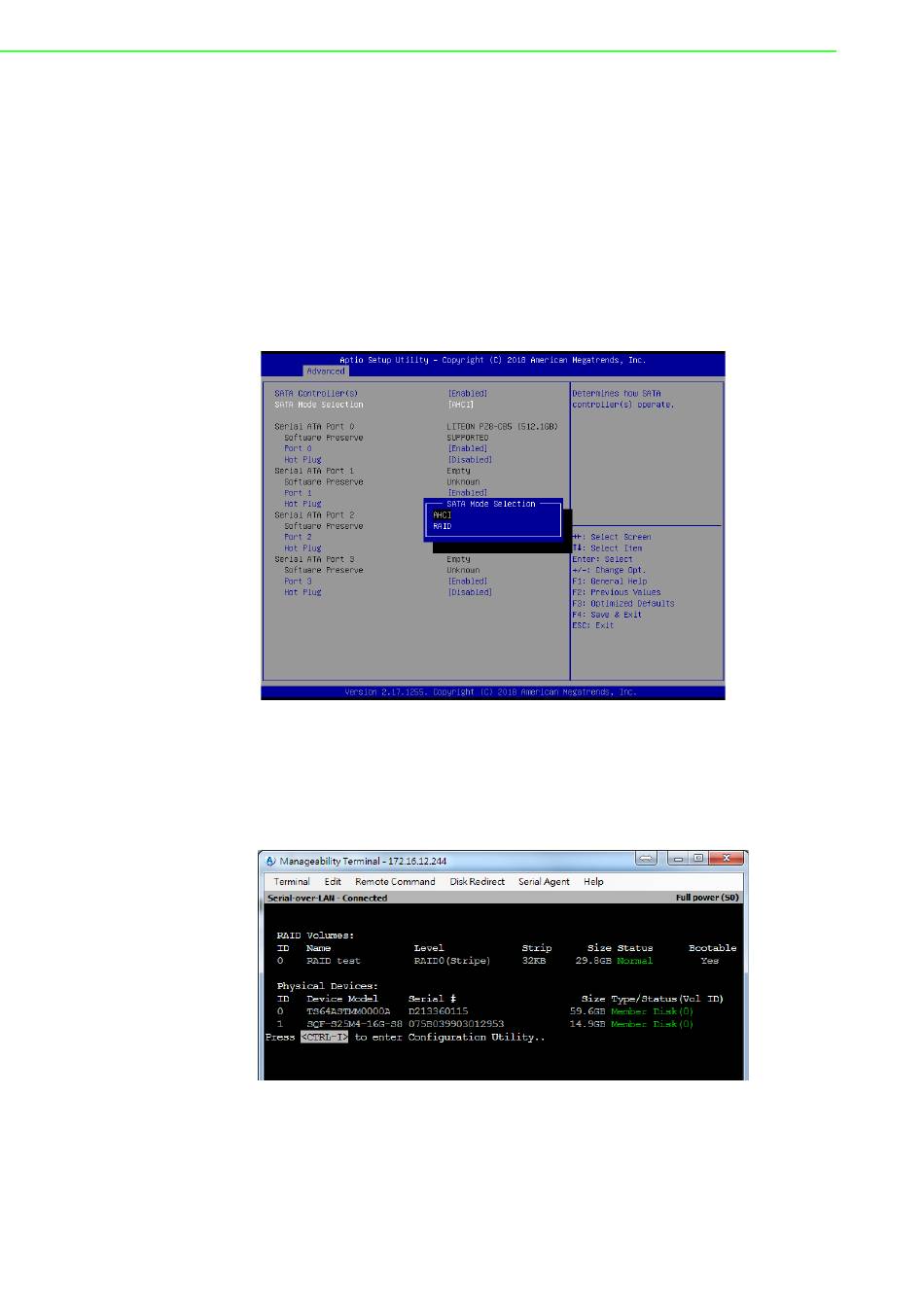

Figure 2.8 SATA Mode Selection
Figure 2.9 Detecting a RAID configuration
12
