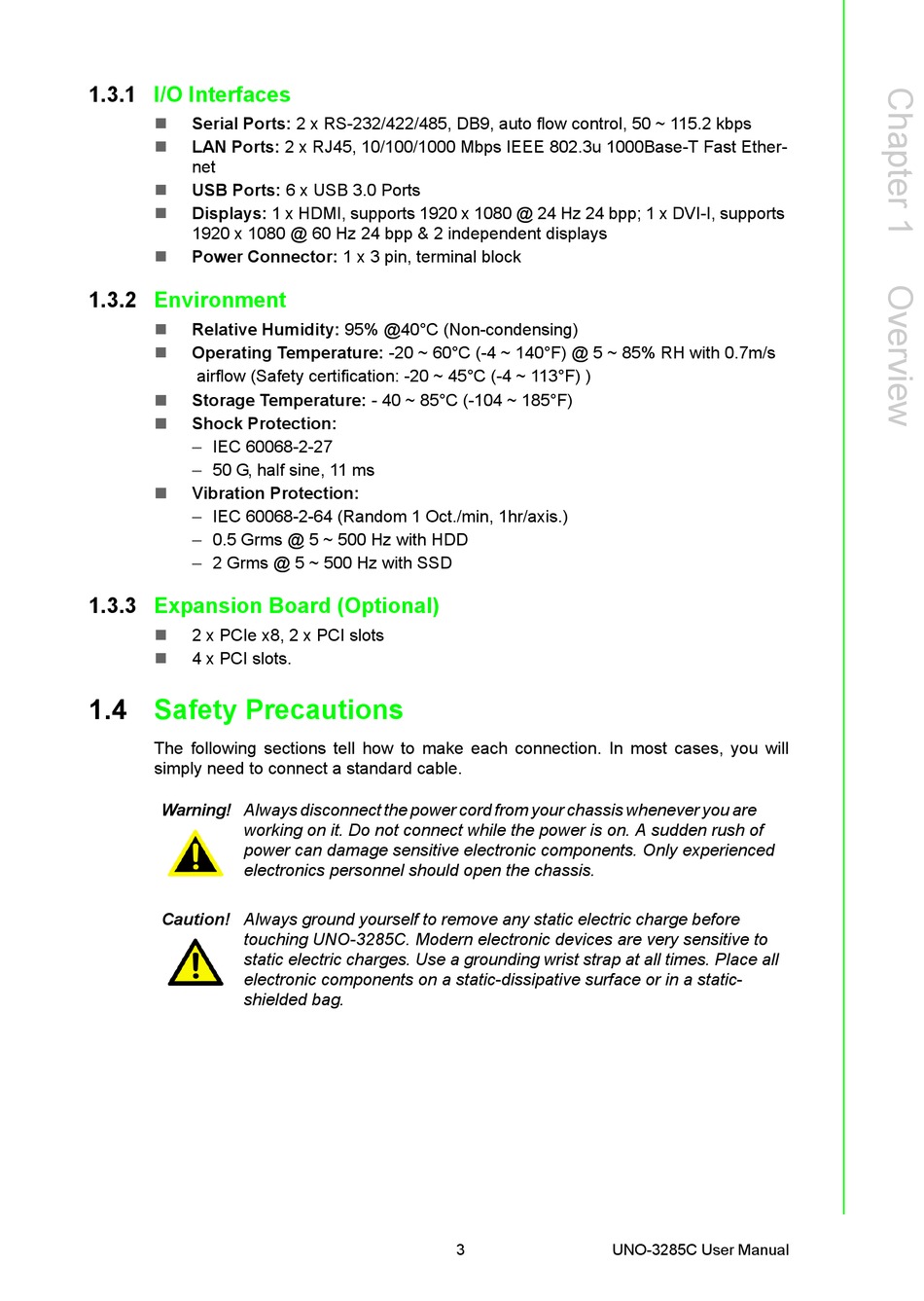

I/O Interfaces

 Serial Ports: 2 x RS-232/422/485, DB9, auto flow control, 50 ~ 115.2 kbps
 LAN Ports: 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ether-
net
 USB Ports: 6 x USB 3.0 Ports
Displays: 1 x HDMI, supports 1920 x 1080 @ 24 Hz 24 bpp; 1 x DVI-I, supports

1920 x 1080 @ 60 Hz 24 bpp & 2 independent displays
 Power Connector: 1 x 3 pin, terminal block
1.3.2

Environment

 Relative Humidity: 95% @40°C (Non-condensing)
 Operating Temperature: -20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s
airflow (Safety certification: -20 ~ 45°C (-4 ~ 113°F) )
 Storage Temperature: - 40 ~ 85°C (-104 ~ 185°F)
 Shock Protection:
– IEC 60068-2-27
– 50 G, half sine, 11 ms
Vibration Protection:

– IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
– 0.5 Grms @ 5 ~ 500 Hz with HDD
– 2 Grms @ 5 ~ 500 Hz with SSD
1.3.3

Expansion Board (Optional)

 2 x PCIe x8, 2 x PCI slots
 4 x PCI slots.
1.4

Safety Precautions

The following sections tell how to make each connection. In most cases, you will
simply need to connect a standard cable.
Warning! Always disconnect the power cord from your chassis whenever you are
working on it. Do not connect while the power is on. A sudden rush of
power can damage sensitive electronic components. Only experienced
electronics personnel should open the chassis.
Caution! Always ground yourself to remove any static electric charge before
touching UNO-3285C. Modern electronic devices are very sensitive to
static electric charges. Use a grounding wrist strap at all times. Place all
electronic components on a static-dissipative surface or in a static-
shielded bag.
3 UNO-3285C User Manual
