Summary of Contents for Advantech UNO-3285C

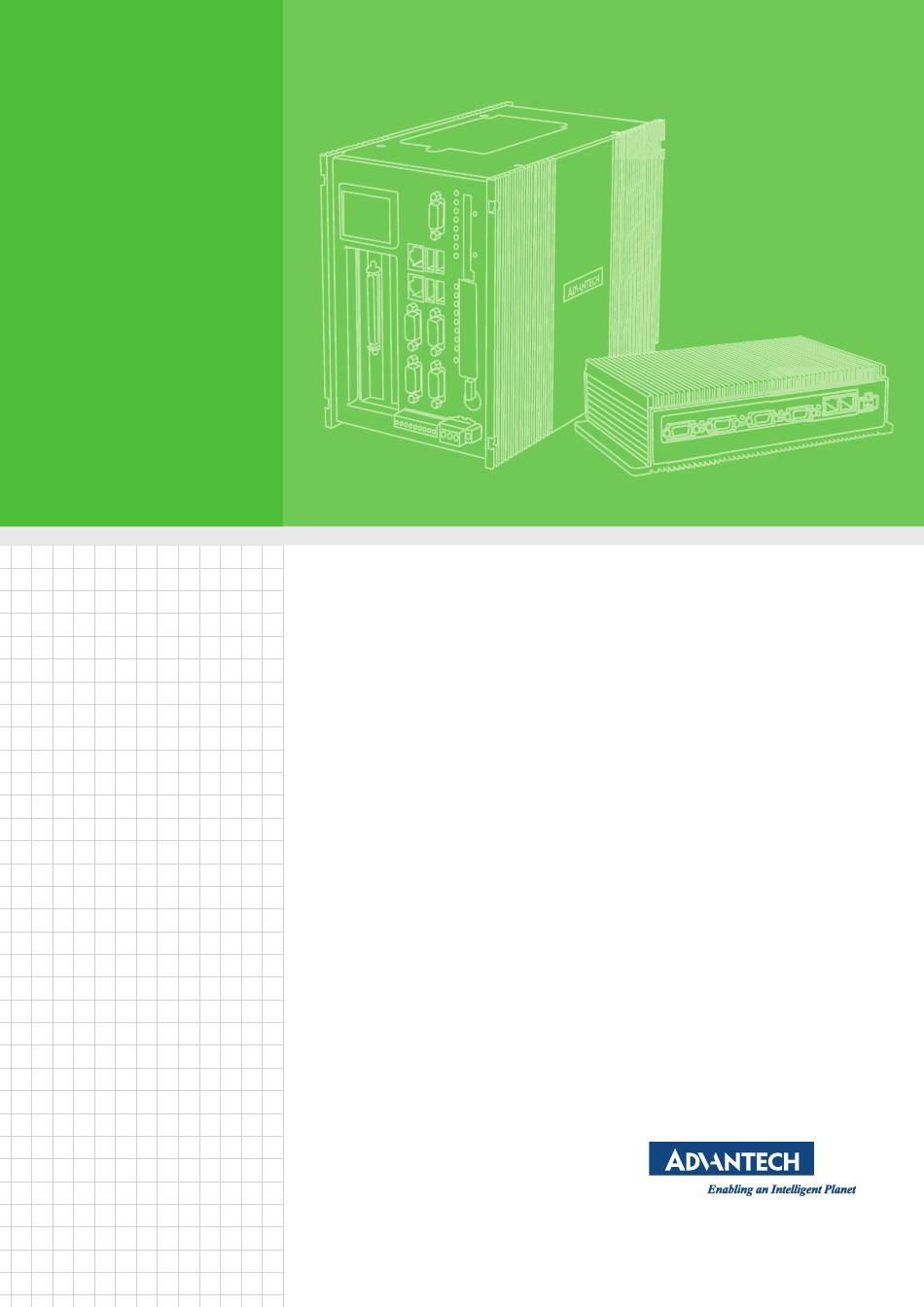

  • Page 1 User Manual UNO-3285C 電腦 Intel® 6th Gen. Core Processors Embedded Automation PC, with PCIe/PCI Extension Slots...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com For technical support and service, please visit our support website at: http://support.advantech.com/ This manual applies to the below model which is abbreviated as UNO-3285C prod- ucts in this article. *Model number: UNO-3285C-674AE...
  • Page 4 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 5 Technical Support and Assistance Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 6 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 7 NE LAISSEZ PAS CET ÉQUIPEMENT DANS UN ENVIRONNEMENT OU LA TEMPÉRATURE DE STOCKAGE PEUT ÊTRE INFÉRIEURE À -20 ° C (-4 ° F) OU BIEN SUPÉRIEURE À 60 ° C (140 ° F). CECI POURRAIT ENDOMMAGER L'EQUIPEMENT. L'ÉQUIPEMENT DEVRAIT ÊTRE DANS UN ENVI- RONNEMENT CONTRÔLÉ. UNO-3285C User Manual...
  • Page 8  設備曾暴露在過度潮濕環境中使用;  設備無法正常工作,或您無法透過用戶手冊來正常工作;  設備摔落或損壞;  設備有明顯外觀損; 請勿將設備放置在超出建議溫度範圍的環境,即不要低於 ‐20 ℃ (‐4 ℉) 或高於 60 (140 ℉) ,否則可能會造成設備損壞。 ℃ 注意:若電池更換不正確,將有爆炸危險。因此,只可以使用製造商推薦的同一 種或者同等型號的電池進行替換。請按照製造商的指示處理舊電池。 本產品於國內裝置使用時,其電源僅限使用機架電源模組所提供直流電源輸入, 不得使用交流電源及附加其他電源轉換裝置提供電源,其電源輸入電壓及電流請 依說明書規定使用。 根據 IEC 704‐1:1982 規定,操作員所在位置音量不可高於 70 分貝。 限制區域:請勿將設備安裝於限制區域使用。 免責聲明:請安全訓示符合 IEC 704‐1 要求。研華公司對其內容之準確性不承 擔任何法律責任。 UNO-3285C User Manual viii...
  • Page 9: Table Of Contents

    Connecting Power................... 16 Figure 3.1 Power Connector............16 Installation of iDOOR Module..............16 Installing a Hard Disk ................18 Installing a PCI/ PCIe Card and Cfast Card ..........20 Mounting UNO-3285C................21 Figure 3.2 Stand Mount ............. 21 UNO-3285C User Manual...
  • Page 10 Table A.8: VO1 reserve for power output, the voltage is same as power input............... 31 CN1 Internal 12V power for PCI/PCIe ............ 32 Table A.9: CN1 Internal 12V power for PCI/PCIe...... 32 A.10 CMOS Clear Function (JP1) ..............32 Table A.10:CMOS Clear Function ..........32 UNO-3285C User Manual...
  • Page 11: Chapter 1 Overview

    Chapter Overview This chapter provides an overview of UNO-3285C' specifications. Sections include:  Introduction  Hardware specification  Safety precautions  Chassis dimensions  Accessories...
  • Page 12: Introduction

    Introduction High performing UNO-3285C models are configured with high-performance Intel Gen.6 Core i processors, which offers users maximum flexibility, two displays, six USB 3.0 ports, two mPCIe sockets, and expansion via PCIe/PCI slots and iDoor expansion, iDoor technology supports automation feature extensions such as indus- try Fieldbus communication, POE, COM &...
  • Page 13: I/O Interfaces

    Caution! Always ground yourself to remove any static electric charge before touching UNO-3285C. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static- shielded bag.
  • Page 14: Chassis Dimensions

    Chassis Dimensions 196.6 Figure 1.1 Dimensions Accessories Please refer to the below accessories list for UNO-3285C.  1 × 3-pin plug-in block for power wiring  1 × Warranty card  8 x M3*5L screws for fastening HDD/SSD  4 x screws for fastening mPCIe modules ...
  • Page 15: Chapter 2 Hardware Functionality

    Chapter Hardware Functionality This chapter shows how to setup UNO-3285C’s hardware func- tions, including connecting peripherals, setting switches and indicators. Sections include:  Peripherals  RS-232/422/485 Interface  LAN / Ethernet Connector  Power Connector  Mini PCIe Socket  Audio Connector ...
  • Page 16: Introduction

    Introduction The following figures show the interfaces of UNO-3285C and detailed information for each peripheral. Figure 2.1 Front View Serial Interface (COM1/COM2) UNO-3285C offers two standard RS-232/422/485 serial communication interface ports: The IRQ and I/O address of serial ports are listed as below.
  • Page 17: Rs-232/422/485 Interface (Com1 & Com2)

    The COM ports default setting is RS422/485. It can also be switched to RS232 mode manually. In RS-422/485 mode, the UNO-3285C automatically detects signals to match RS- 422 or RS-485 networks. In RS-485 mode, the UNO-3285C automatically detects the direction of incoming data and switches its transmission direction accordingly.
  • Page 18: Figure 2.3 Com Setting

     SW1: COM1 RS232/422/485 mode setting SW3: COM2 RS232/422/485 mode setting Figure 2.3 COM setting  SW2: COM1 RS422 Rx termination (pin1-pin2) Figure 2.4 COM1 RS422 Rx termination (pin1-pin2) UNO-3285C User Manual...
  • Page 19: Lan: Ethernet Connector

    Figure 2.5 COM2 RS422 Rx termination (pin3-pin4) LAN: Ethernet Connector UNO-3285C is equipped with two Gigabit LAN controllers. The controller chip used is the Intel Ethernet controller which is fully compliant with 802.1Qav, IEEE1588/ 802.1AS, 802.3az standards. The Ethernet port provides two standard RJ-45 jacks on the front I/O and LED indicators on front of the connector show its link status (orange LED=100Mbps, green LED=1000Mbps, and flashing green LED=active).
  • Page 20: Power Button/Power Management

    Power on Suspend (S1), Suspend to RAM (S3), and Suspend to Disk (S4). 2.8.1 Power Mode Users can set AT/ATX mode in BIOS setup menu "Chipset\State After G3".  [S0 State]: AT mode  [S5 State]: ATX mode Figure 2.6 AT/ATX Adjustment UNO-3285C User Manual...
  • Page 21: Pci Express Mini Card Socket

    I/O ports for specific applications like Isolation COM, Digital I/O, and CAN modules. 2.10 PCIe/PCI Slot In order to fulfill customer’s requirements, UNO-3285C provides two or four PCIe/PCI slots. It can easily expand functionality via installing additional I/O cards, vision cards, etc. Note! PCI/PCIe card supports wide temperature ranges (at least +70°...
  • Page 22: Sata Hdd/Ssd Drive

    2.11 SATA HDD/SSD Drive UNO-3285C supports two 2.5" SATA HDD/SSD bays with up to 6Gbps speed. It also supports RAID0 and RAID1. The RAID function should be enabled in BIOS setup before you install an operating system into a RAID volume. Users can enable the RAID function in the BIOS sub-menu “Advanced\SATA Configuration”.
  • Page 23: Led Indicators

    PWR: Green means normal, yellow is stand by.  HDD/SSD: Flashing green during data reads & write.  RTC: Red means RTC voltage is low.  COM1 & COM2(Tx/Rx): Flashing green means signals are being transmitted and received. UNO-3285C User Manual...
  • Page 24 UNO-3285C User Manual...
  • Page 25: Chapter 3 Initial Setup

    Chapter Initial Setup This chapter introduces how to initialize UNO-3285C. Sections include:  Chassis Grounding  Connecting Power  Connecting a Hard Disk  BIOS Setup and System Assign- ments...
  • Page 26: Connecting Power

    Connecting Power UNO-3285C takes 10Vdc-36 VDC power source. The power source can be from either a power adapter or an in-house power source. Figure 3.1 Power Connector This product is intended to be supplied by a listed DC power source, rated at 10- 36Vdc, 8-2.5A, and a Tma 60°C, if further assistance is needed, please contact...
  • Page 27 Remove the 4 x PCI/PCIe brackets and screws, and also the iDOOR bracket and screws from UNO. Insert and affix the iDOOR mini-PCI card with screws in the accessory pack. UNO-3285C User Manual...
  • Page 28: Installing A Hard Disk

    Installing a Hard Disk Follow the steps below to install a HDD/SSD into the system. (2 x HDD/SDD only supported) Remove 4 x screws and take off the UNO cover. Remove the HDD tray screws. UNO-3285C User Manual...
  • Page 29 Fix the 1st HDD/SDD onto the cover using the 4 x screws in the accessory pack. Fix the 2nd HDD/SDD onto the tray with the 4 x screws in the accessory pack. Tighten the tray screws back. Tighten the cover screws back. UNO-3285C User Manual...
  • Page 30: Installing A Pci/ Pcie Card And Cfast Card

    Installing a PCI/ PCIe Card and Cfast Card UNO-3285C provides four expansion slots for PCI/ PCIe cards and one internal CFast slot for extending storage. Follow the exploded diagram to install a PCI/ PCIe card and a CFast card. Remove 8 x screws from the UNO case.
  • Page 31: Mounting Uno-3285C

    Insert the Cfast card into the Cfast slot. Mounting UNO-3285C UNO-3285C supports stand mounting shown in the following figures, please use M4 screws (head diameter:6.5~6.8mm) for fixing UNO-3285C. Figure 3.2 Stand Mount UNO-3285C User Manual...
  • Page 32 UNO-3285C User Manual...
  • Page 33: System Settings And Pin Assignments

    Appendix System Settings and Pin Assignments...
  • Page 34: System I/O Address And Interrupt Assignment

    Communications Port (COM1) IRQ5 Available IRQ6 Available IRQ7 EC Watch DOG IRQ8 System CMOS/real time clock IRQ9 Microsoft ACPI-Compliant System IRQ10 Available IRQ11 Available IRQ12 PS/2 Compatible Mouse IRQ13 Numeric data processor IRQ14 Primary IDE IRQ15 Secondary IDE UNO-3285C User Manual...
  • Page 35: Board Connectors, Switches And Jumpers

    (Default: mSATA) HDMI CN10 LAN & 2 x External USB3.0 CN11 LAN & 2 x External USB3.0 CN12 External USB3.0 x 2 CN19 Mini PCIE CN20 Mini PCIE or mSATA CN24 Power input Clear CMOS UNO-3285C User Manual...
  • Page 36: Com1/Com2

    COM1/COM2 Table A.3: COM POER Pin Definition Connector Function RS232 RS422 RS485 422_TXD- 485_Data- 422_TXD+ 485_Data+ 422_RXD+ 422_RXD- Power Connector (PWR) Table A.4: Power connector pin assignments UNO-3285C User Manual...
  • Page 37: Sw4 Power Switch

    Table A.5: SW4 Power Switch Part Number 1600000049 Footprint SW-TP33WS83565 Description RESET SW ES-26A-K-T/R-H SMD 4p Pin Name PSIN CN19/CN20 Mini PCIE Table A.6: CN19/CN20 Mini PCIE Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP PU3.3_AUX UNO-3285C User Manual...
  • Page 38 Table A.6: CN19/CN20 Mini PCIE PERST# PERn0 +3.3VSB PERp0 +1.5V SMB_CLK PETn0 SMB_DAT PETp0 USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB UNO-3285C User Manual...
  • Page 39: Cn20 Msata

    CN20 mSATA Table A.7: CN20 mSATA Pin Name WAKE# +3.3VSB +1.5V UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP PU3.3_AUX PERST# UNO-3285C User Manual...
  • Page 40 Table A.7: CN20 mSATA SATA_RX+ +3.3VSB SATA_RX- +1.5V SMB_CLK SATA_TX- SMB_DAT SATA_TX+ USB D- USB D+ +3.3VSB +3.3VSB +1.5V +3.3VSB UNO-3285C User Manual...
  • Page 41: Vo1 Reserve For Power Output, The Voltage Is Same As Power Input

    VO1 reserve for power output, the voltage is same as power input Table A.8: VO1 reserve for power output, the voltage is same as power input Pin Name Note! This connector support max 2 A. UNO-3285C User Manual...
  • Page 42: Cn1 Internal 12V Power For Pci/Pcie

    Table A.9: CN1 Internal 12V power for PCI/PCIe Name A.10 CMOS Clear Function (JP1) Table A.10: CMOS Clear Function Description This jumper is used to select CMOS Clear Enable/Disable Default (1-2) (2-3) Enable (Clear CMOS) (1-2) Disable (1-2) Disable (2-3) Enable (Clear CMOS) UNO-3285C User Manual...
  • Page 43 UNO-3285C User Manual...
  • Page 44 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
