A.2

Board Connectors, Switches and Jumpers

There are several connectors and switches on the inside board. The following sec-
tions tell you how to configure the hardware setting. Figure A.1 shows the locations of
the connectors and switches.
Table A.2: Connectors on System board
Label
SW1
SW2
SW3
SW4
SW5
SW6
CN7
CN8
CN10
CN11
CN12
CN19
CN20
CN24
JP1

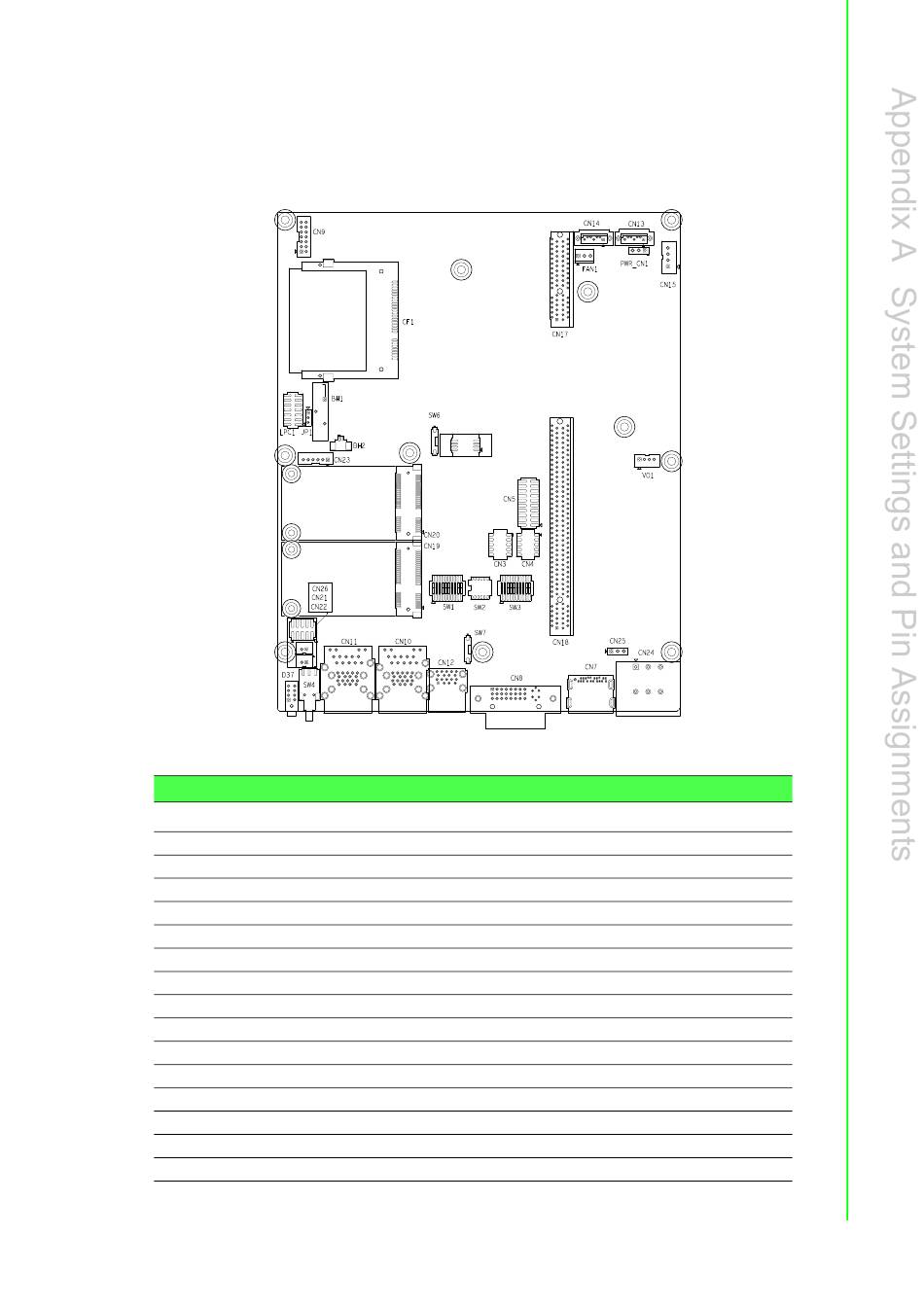

Figure A.1 Bottom view of System Board
Function
COM1 setting
RS-422/485 receiver termination
COM2 setting
Power Switch
Reset
mSATA/ mPCIe (Default: mSATA)
HDMI
DVI
LAN & 2 x External USB3.0
LAN & 2 x External USB3.0
External USB3.0 x 2
Mini PCIE
Mini PCIE or mSATA
Power input
Clear CMOS
25 UNO-3285C User Manual
