4.11 Timing Characteristics

4.11.1 Reset Timing
4.11.1.1 nRESET (32K XTAL)

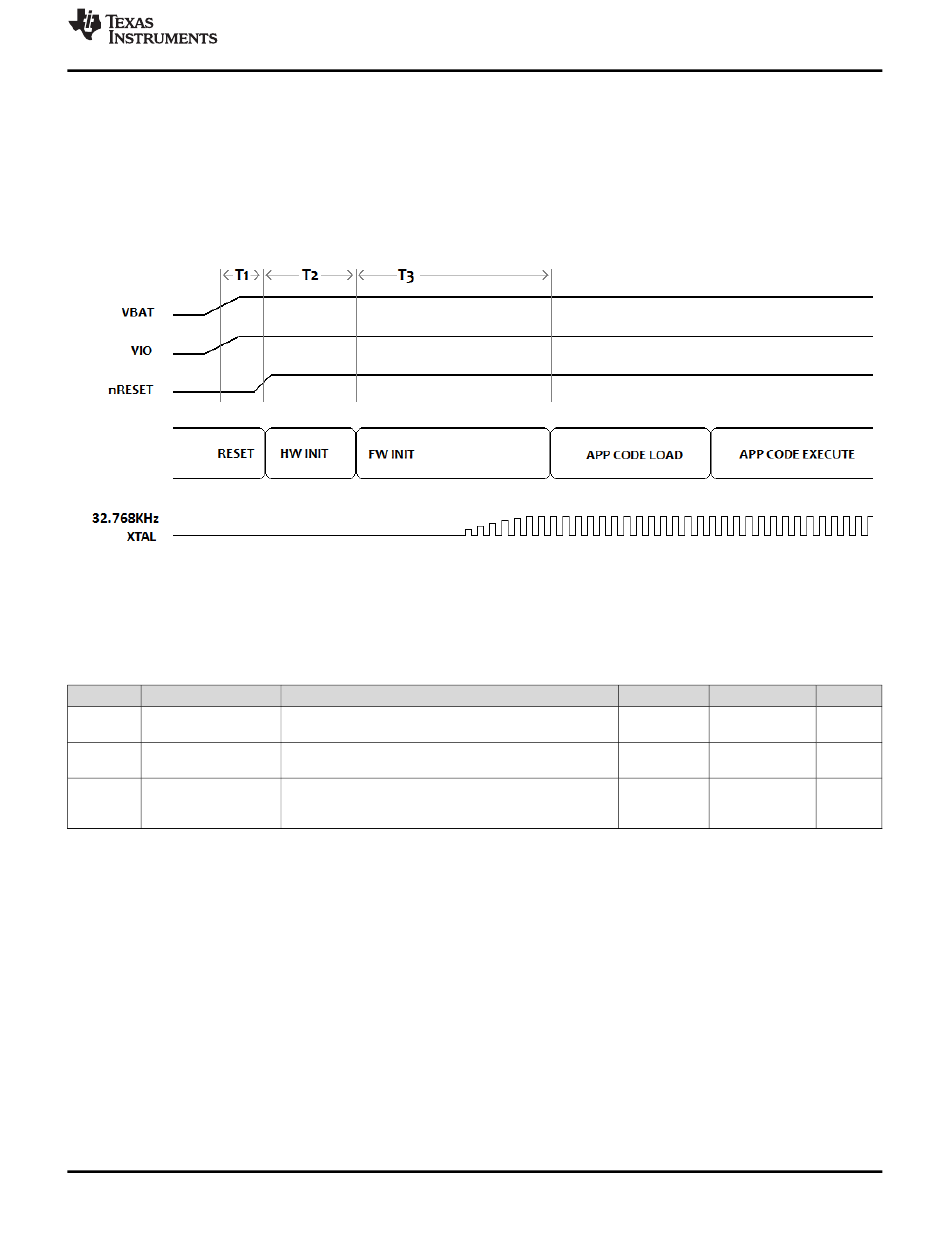

Figure 4-6
shows the reset timing diagram for the 32K XTAL first-time power-up and reset removal.
Figure 4-6. First-Time Power-Up and Reset Removal Timing Diagram (32K XTAL)
Table 4-1
describes the timing requirements for the 32K XTAL first-time power-up and reset removal.
Table 4-1. First-Time Power-Up and Reset Removal Timing Requirements (32K XTAL)
ITEM
NAME
T1
Supply settling time
Hardware wakeup
T2
time
Time taken by ROM
T3
firmware to initialize
hardware
Copyright © 2014, Texas Instruments Incorporated
DESCRIPTION
Depends on application board power supply, decap, and
so on
Includes 32.768-kHz XOSC settling time
Submit Documentation Feedback
CC3200MOD
SWRS166 – DECEMBER 2014
MIN
TYP
3 ms
25 ms
1.1 s
Specifications
MAX
31
