CC3200MOD
SWRS166 – DECEMBER 2014
6.3.3 Transmission Line
The RF signal from the device is routed to the antenna using a CPW-G (Coplanar Waveguide with
ground) structure. This structure offers the maximum isolation across filter gap and the best possible
shielding to the RF lines. In addition to the ground on the L1 layer, placing GND vias along the line also
provides additional shielding

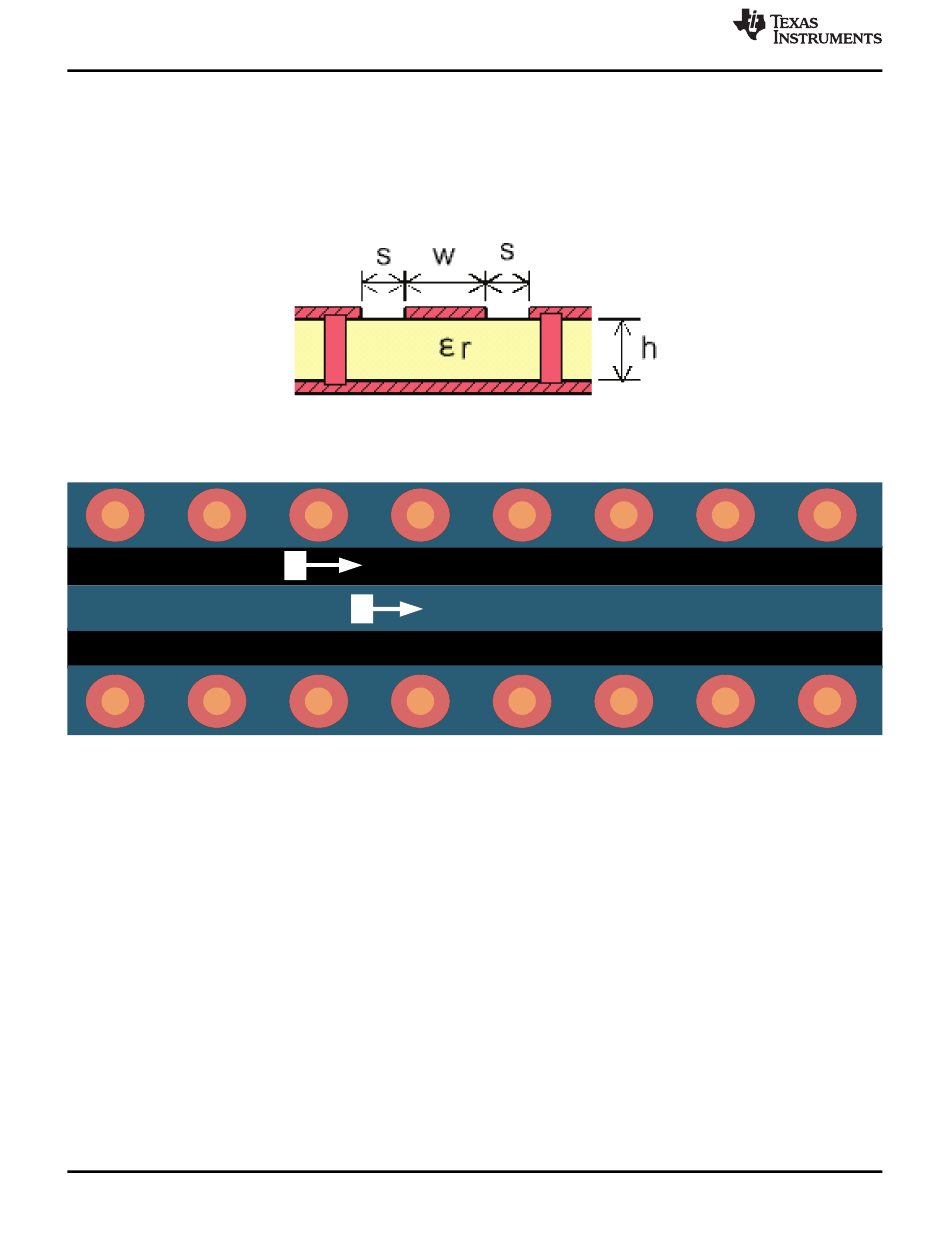

Figure 6-3. Coplanar Waveguide (Cross Section) with GND and Via Stitching
54 Applications, Implementation, and Layout
S
W
Figure 6-4. CPW with GND (Top View)
