4.11.1.3 Wakeup from Hibernate

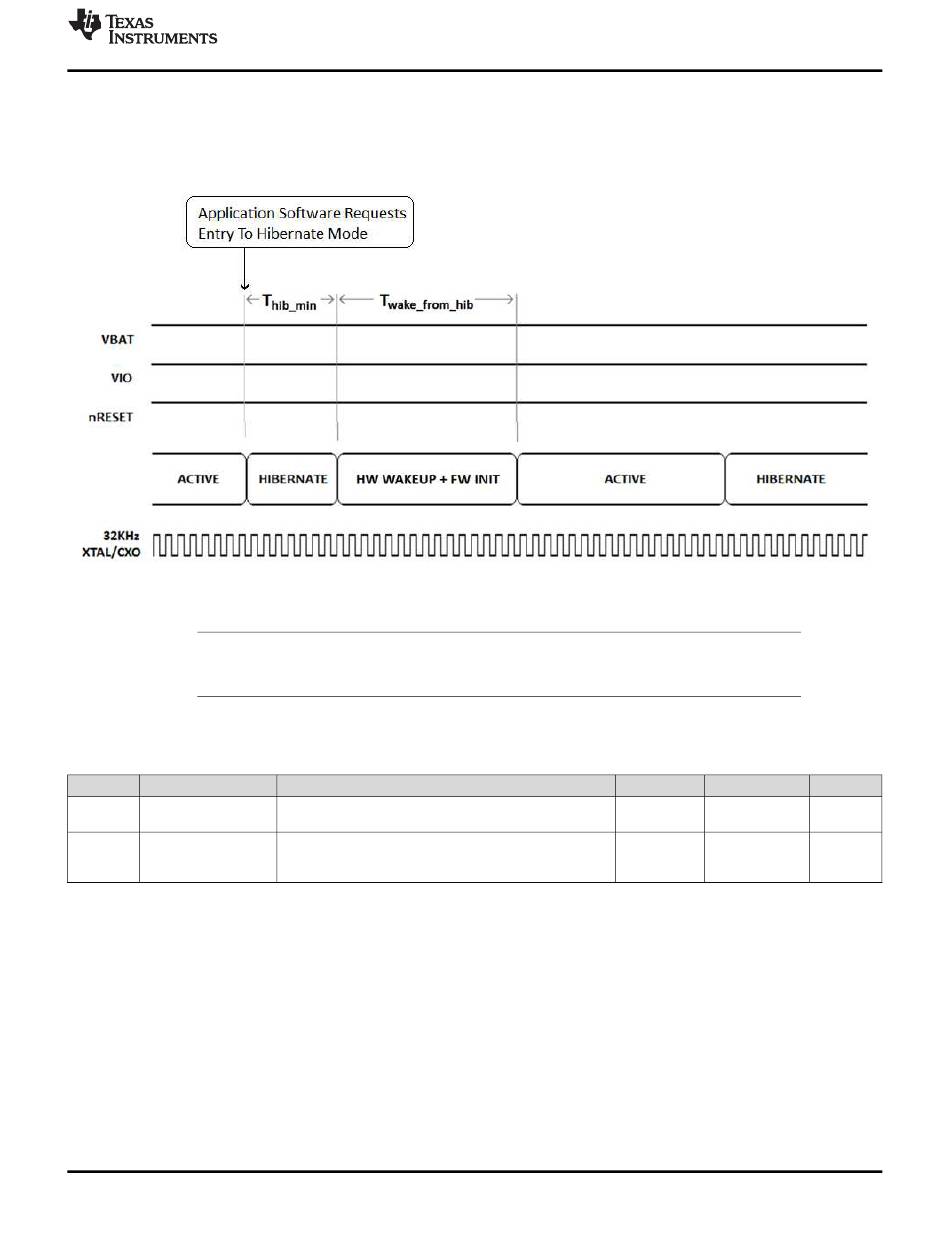

Figure 4-8 shows the timing diagram for wakeup from the hibernate state.
The 32.768-kHz XTAL is kept enabled by default when the chip goes to hibernate.
Table 4-3 describes the timing requirements for nHIB.
ITEM NAME
T Minimum hibernate
hib_min
time
T Hardware wakeup
wake_from_
(1)
time plus firmware
hib
initialization time
(1) Twake_from_hib can be 200 ms on rare occasions when calibration is performed. Calibration is performed sparingly, typically when
exiting Hibernate and only if temperature has changed by more than 20°C or more than 24 hours have elapsed since a prior calibration.
(2) Wake-up time can extend to 75 ms if a patch is downloaded from the serial flash.
4.11.2 Peripherals
This section describes the peripherals that are supported by the CC3200 module:
• SPI
• McASP
• GPIO
2
• I C
• IEEE 1149.1 JTAG
• ADC
Copyright © 2014, Texas Instruments Incorporated
Figure 4-8. nHIB Timing Diagram
Table 4-3. Software Hibernate Timing Requirements
DESCRIPTION
Submit Documentation Feedback
NOTE
MIN
10 ms
CC3200MOD
SWRS166 – DECEMBER 2014
TYP MAX
(2)
50 ms
Specifications 33
