CC3200MOD
SWRS166 – DECEMBER 2014

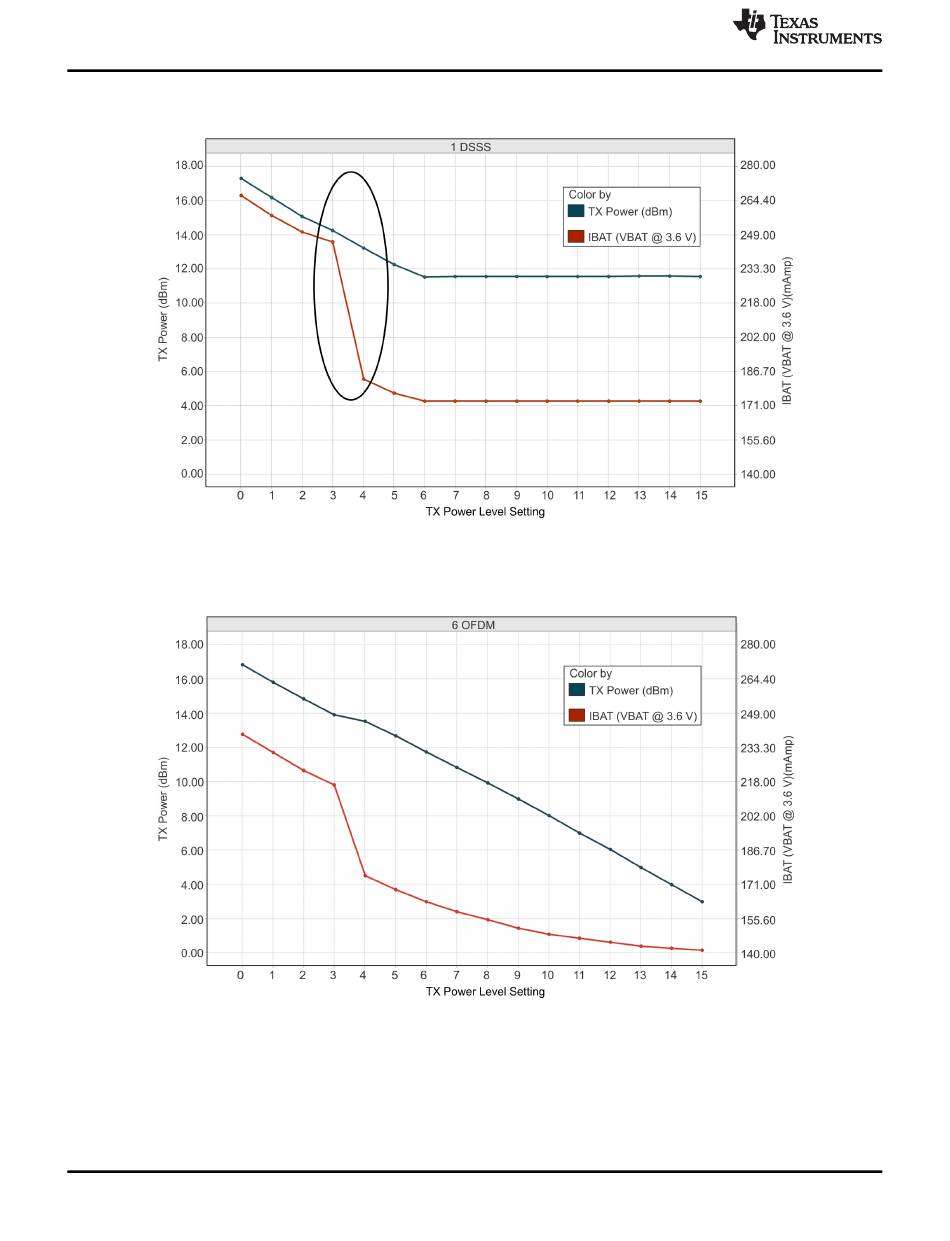

Note: The area enclosed in the circle represents a significant reduction in current when transitioning from TX power
level 3 to 4. In the case of lower range requirements (13-dbm output power), TI recommends using TX power level 4
to reduce the current.
Figure 4-3. TX Power and IBAT vs TX Power Level Settings (1 DSSS)
Figure 4-4. TX Power and IBAT vs TX Power Level Settings (6 OFDM)
