OPC / OPD / OPE
Product Description
4.3

Interfaces and Connections

OPC reader and OPD reader
The device includes the following connections:

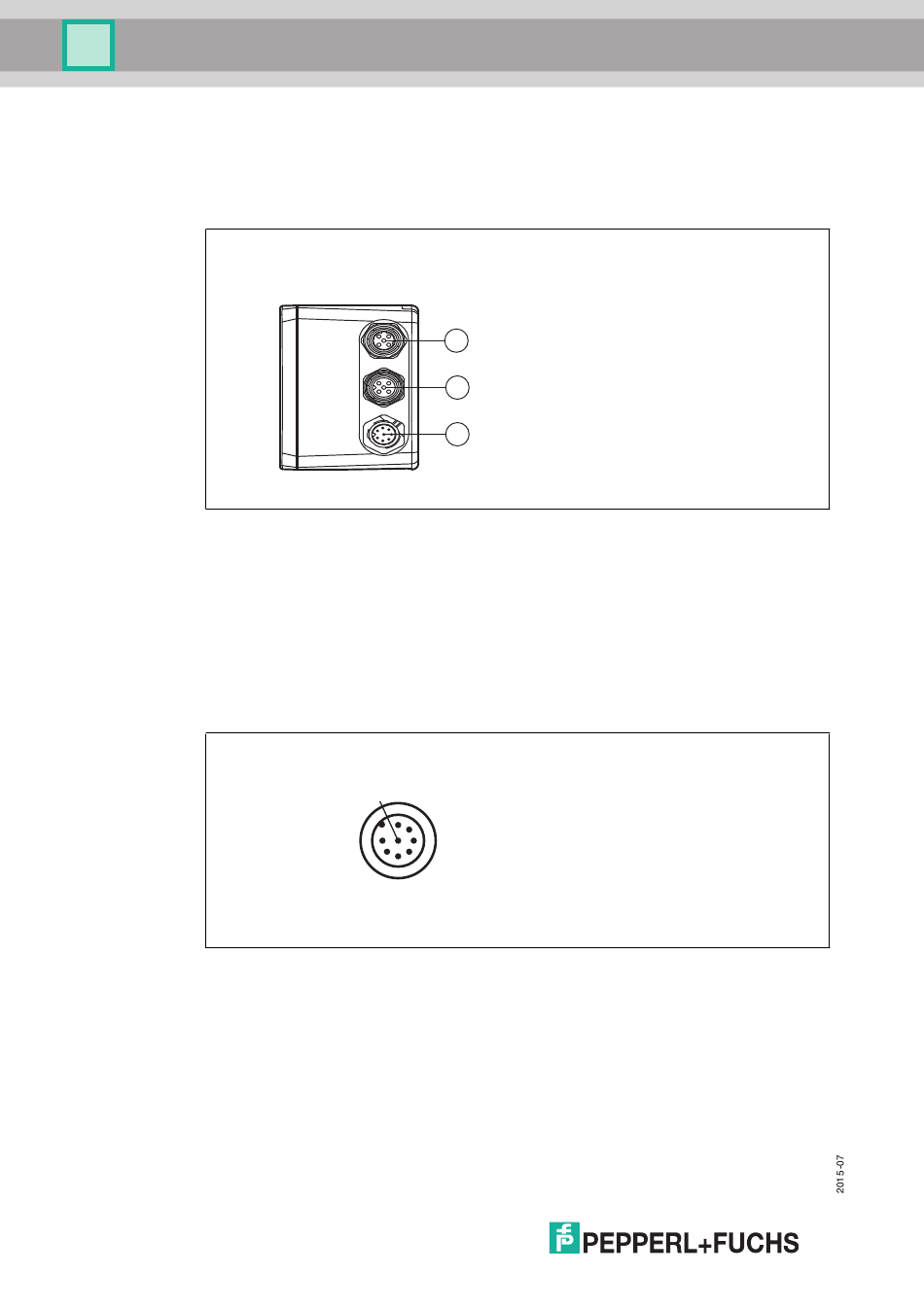

Figure 4.2
1. Network (4-pin M12 socket)
2. Input IO (5-pin M12 socket)
3. Power supply, inputs, and outputs (8-pin M12 plug)
Power Supply
There is an 8-pin M12 plug on the side of the housing for connecting the power
supply, and the inputs and outputs. The following diagram shows the pinning:
Figure 4.3
1. Trigger IN
2. + UB
3. OUT Good
4. OUT Bad
5. IN 1
6. OUT 1
7. GND
8. OUT match code
12
1
2
3
Device Connections
1
8
7
2
6
3
5
4
Connection layout for operating voltage, and inputs and outputs
