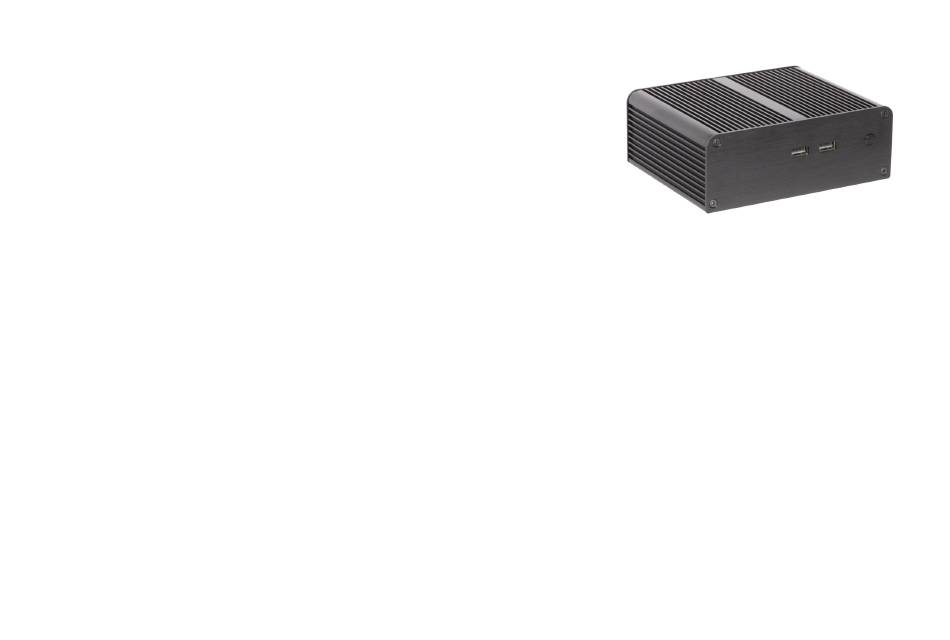

- Page 1 Chassis for congatec Pico-ITX Modules Quick Start Guide Revision 1.0...
- Page 2 Introduction Supported Boards Front Panel Layout The conga-PITX supports a range of congatec modules as shown in the table below: Part No - Chassis Part No - Supported Boards 052556 - conga-PA5/Chassis PIX-APH1 lidded, 048100 - conga-PA5/E3950-8G Power switch Hard drive LED Power LED USB 2.0 port...
- Page 3 1. Attach VESA mounting screw: 2. Detach case feet items: ⑥ ⑪ ⑨ 7. Connect the COM cable to the 8. Mount the congatec board. Screw board (if required): positions are shown below: 3. Mount the VESA bracket: 4. Align the chassis: ⑪...
