Note

For the feature connector pinout description, see section 6.1 "Feature Connectors".

5.2

RTC Battery

The conga-PA5 provides an RTC battery on connector X23. The battery monitors and maintains the system clock. The conga-PA5 package

contains wired +3V lithium battery (CR2032 for commercial variants; BR2330A for industrial variants).

Table 13

Battery Connector X23

Description

+3V

GND

Note

The battery has an adhesive tape on its shrinking tube. This tape enables the system integrator to adequately position the battery in the

system case. The functionality of adhesive tape is time limited if exposed to higher temperatures and harsh or vibrant environment. The

system integrator must ensure a stable position in this case.

Warning

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose

of used batteries according to the manufacturer's instructions.

Connector Type

X23: 2x1, 1.25mm PicoBlade header

Possible Mating Connector: Molex 51021-0200

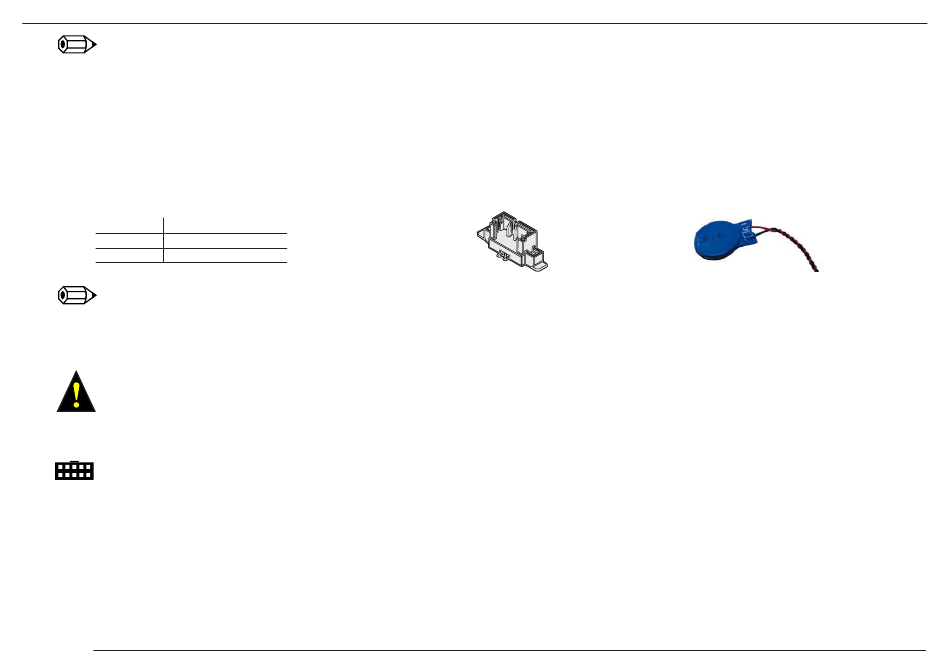

RTC Battery Connector X23

PA50m01

Battery with cable and connector

25/46
