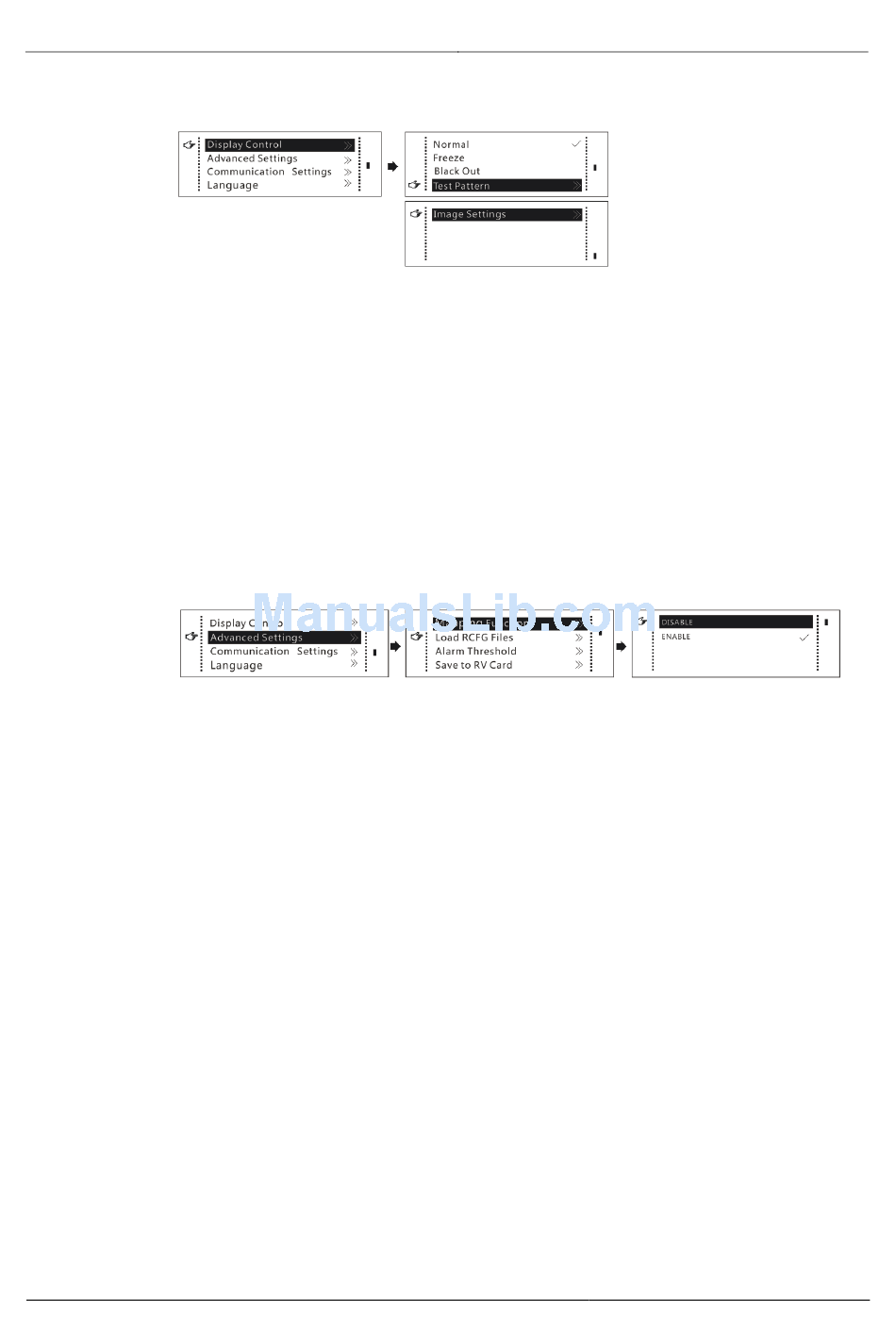

5.5 Display Control

Normal: Playing the input source normally.
Black Out: The screen is black out, with no display.
Freeze: Freezing the displaying image.
Test Pattern: 8 test patterns including pure color and lines testing.
Image Settings: Setting red, green and blue brightness, color temperature, Gamma
rate, and saving parameters.

5.6 Advanced Settings

Advanced settings include settings of multiple main functions, as shown below.

5.6.1 Mapping Function

When Mapping Function is enabled, each of the cabinets will display the cabinet
number and Ethernet port number it belongs to.

5.6.2 Loading Cabinet Files

Connect to PC and start NovaLCT on PC, and import the saved cabinet configuration
files.
Step 1 Save cabinet configuration files.
After configuring the receiving cards, click Save to File to save the cabinet
configuration files (.rcfgx) to local PC.
