Freeze: Make the LED screen always display the frame when frozen. The input source is still being
played in the background.
Test Pattern: Test patterns are used to check the display effect and pixel operating status. There are 8
test patterns, including pure colors and line patterns.
Image Settings: Adjust the contrast, saturation and hue of the output image to improve the display effect.
Parameter
Contrast
Saturation
Hue
Note
The image settings function is unavailable when the calibration function is enabled.
Advanced Settings

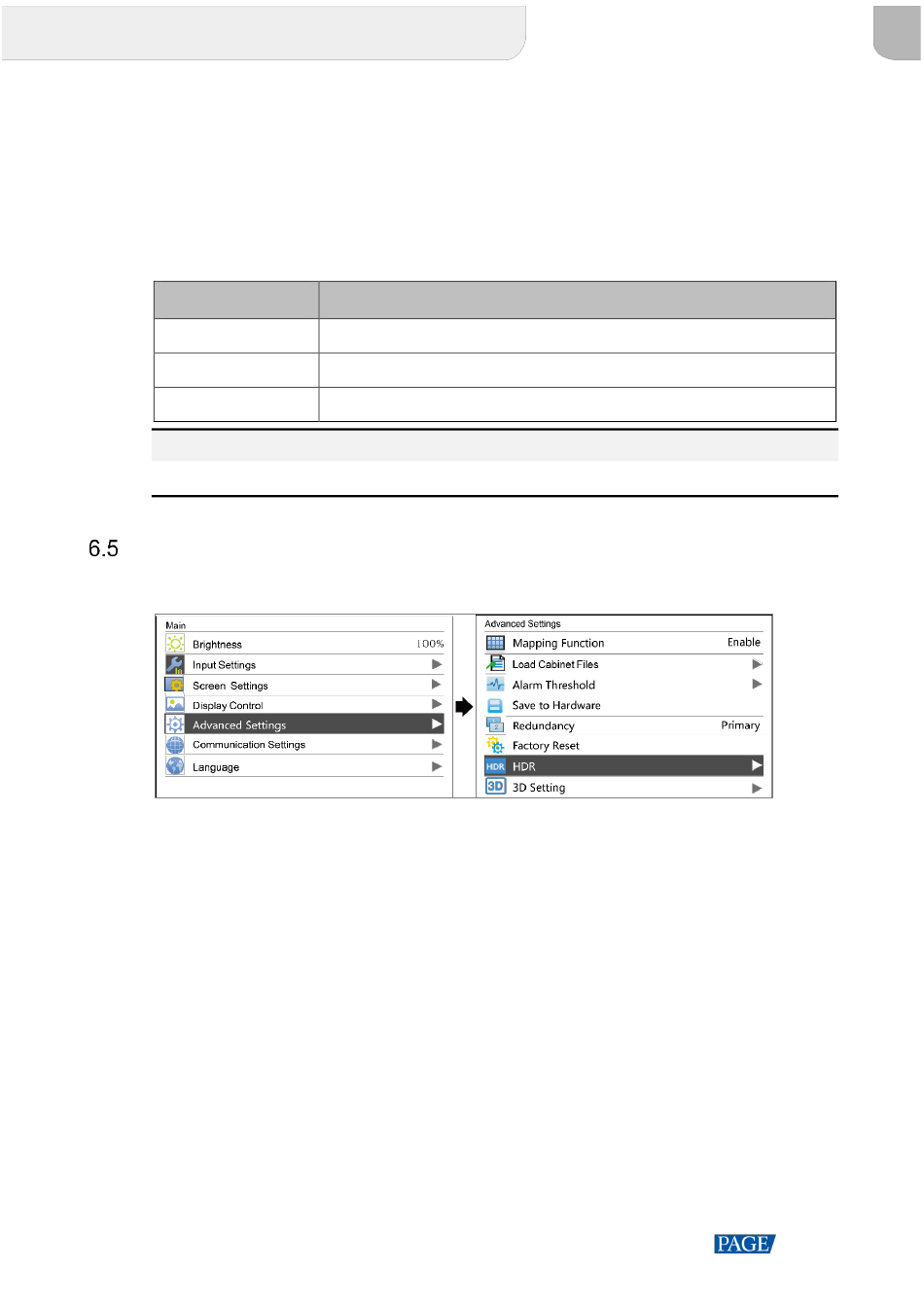

Figure 6-10 Advanced settings

6.5.1 Mapping Function

When this function is enabled, each cabinet of the screen will display the sequence number of the cabinet and
the Ethernet port that loads the cabinet.
www.novastar.tech
Description
Range: 0% to 100%; step: 1%
Range: 0% to 100%; step: 1%
Range: -180 to +180; step: 1
MCTRL4K LED Display Controller User Manual
16
