Normal: Display the content of the current input source normally.

Black Out: Make the LED screen go black and do not display the input source. The input source is still
being played in the background.

Freeze: Make the LED screen always display the frame when frozen. The input source is still being
played in the background.

Test Pattern: Test patterns are used to check the display effect and pixel operating status. There are 8
test patterns, including pure colors and line patterns.

Image Settings: Adjust the color temperature, contrast, saturation and hue of the output image to
improve the display effect.
Parameter
Contrast
Saturation
Hue
Note
The image settings function is disabled when the calibration function is enabled.
Advanced Settings

6.6.1 Mapping Function

When this function is enabled, each cabinet of the screen will display the sequence number of the cabinet and
the Ethernet port that loads the cabinet.

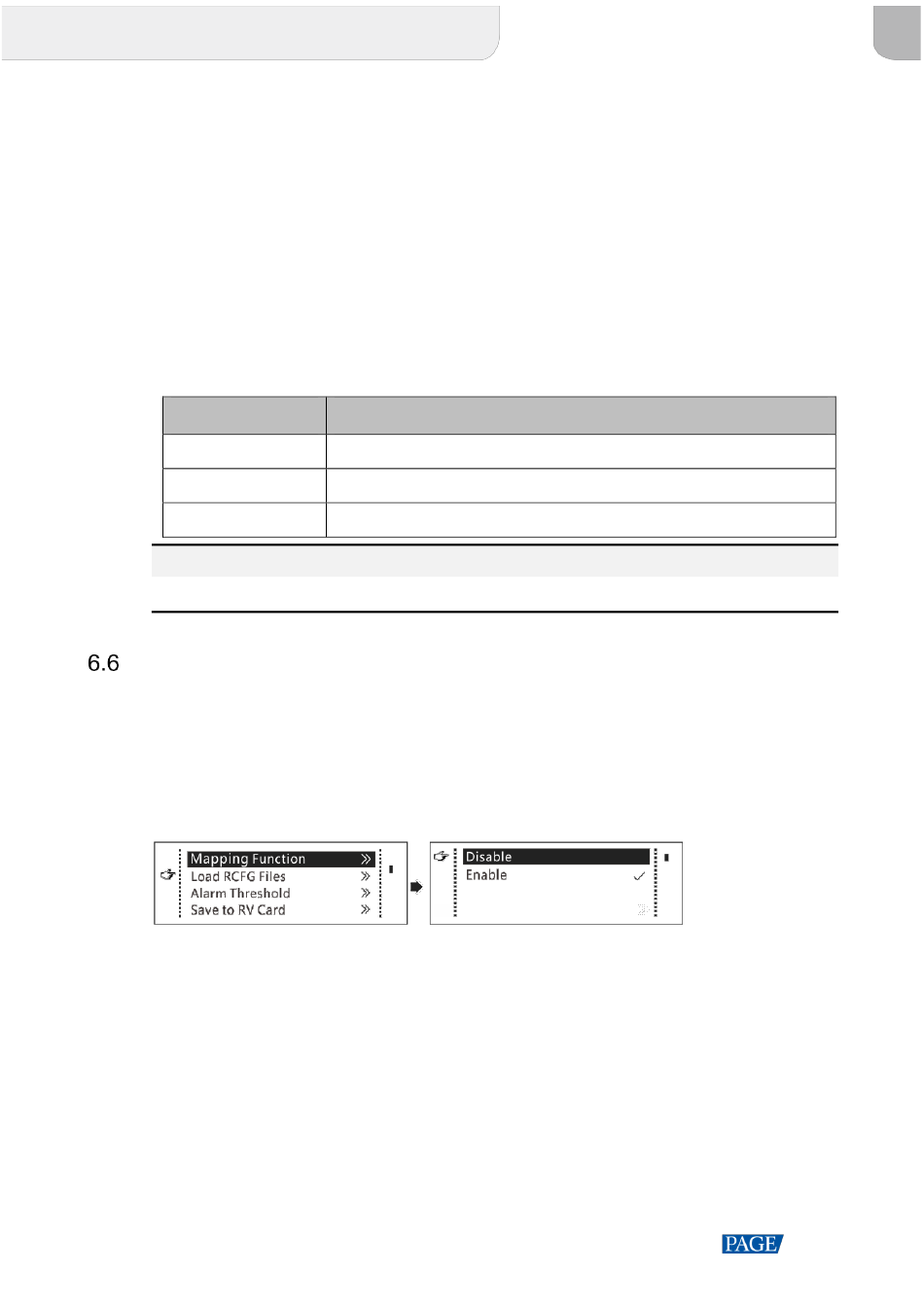

Figure 6-9 Mapping function
www.novastar.tech
Description
Range: 0% to 100%; stepping: 1%
Range: 0% to 100%; stepping: 1%
Range: -180 to +180; stepping: 1
