MCRL R5 LED Display Controller
User Manual

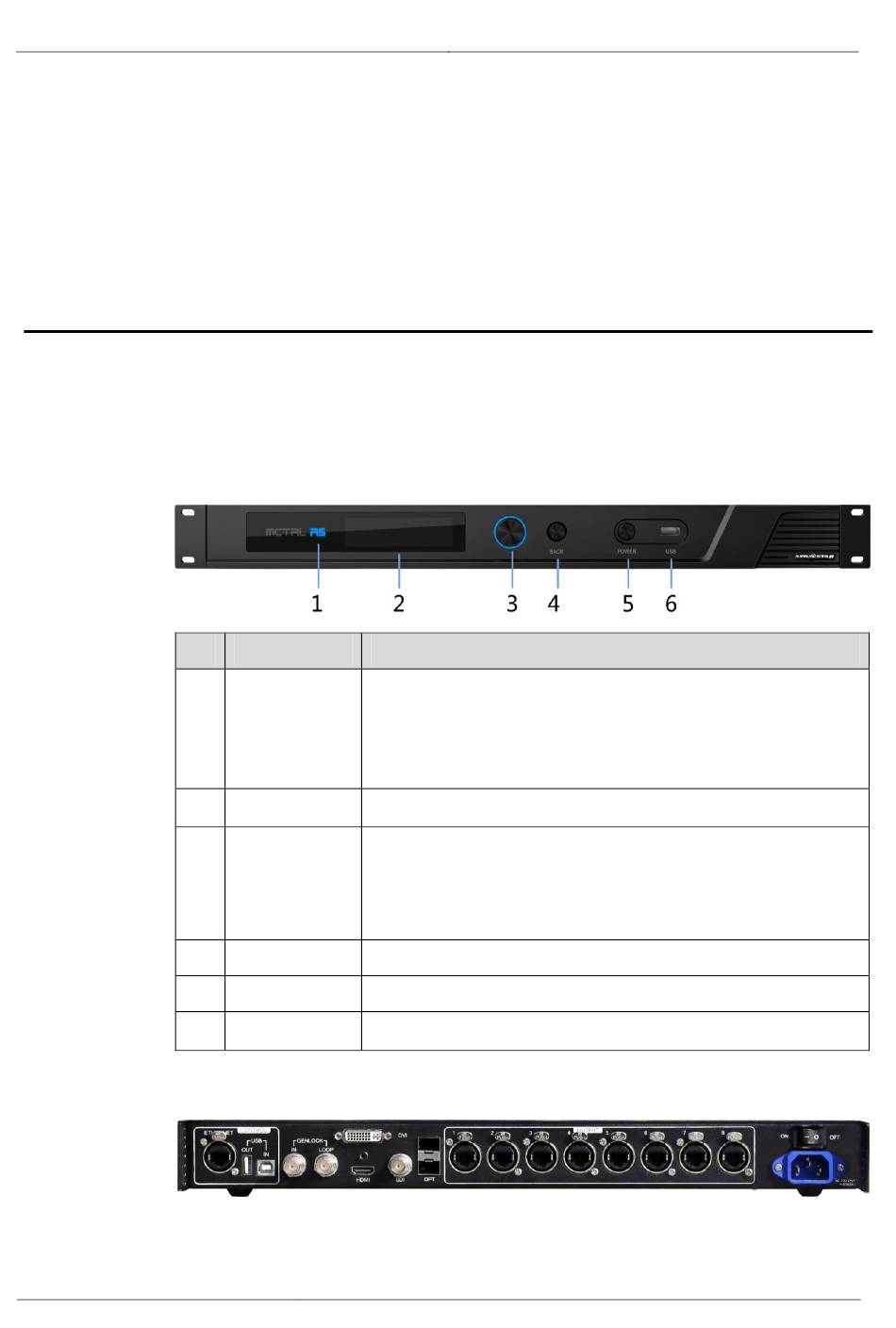

5.1 Appearance

Front Panel
No.
1
2
3
4
5
6
Rear Panel
www.novastar.tech
Name Description
Blue: The device is operating normally
Red: The device has an alarm.
R5 indicator
Orange: The device has no signal.
Breathing blue: The device is in standby mode.
OLED screen Display the menu.
 Press to enter a menu or confirm an option.

Rotate to select a menu item or adjust a menu parameter.
Knob
 Hold down the knob and BACK button simultaneously for 5s
to lock or unlock all the buttons.
BACK Press to go back to the previous menu.
POWER Standby button
USB Insert USB drive to update firmware.
5

Hardware Structure

5 Hardware Structure
5
