IntesisBox BACnet/IP Server – DALI
2.

Installation and quick-setup

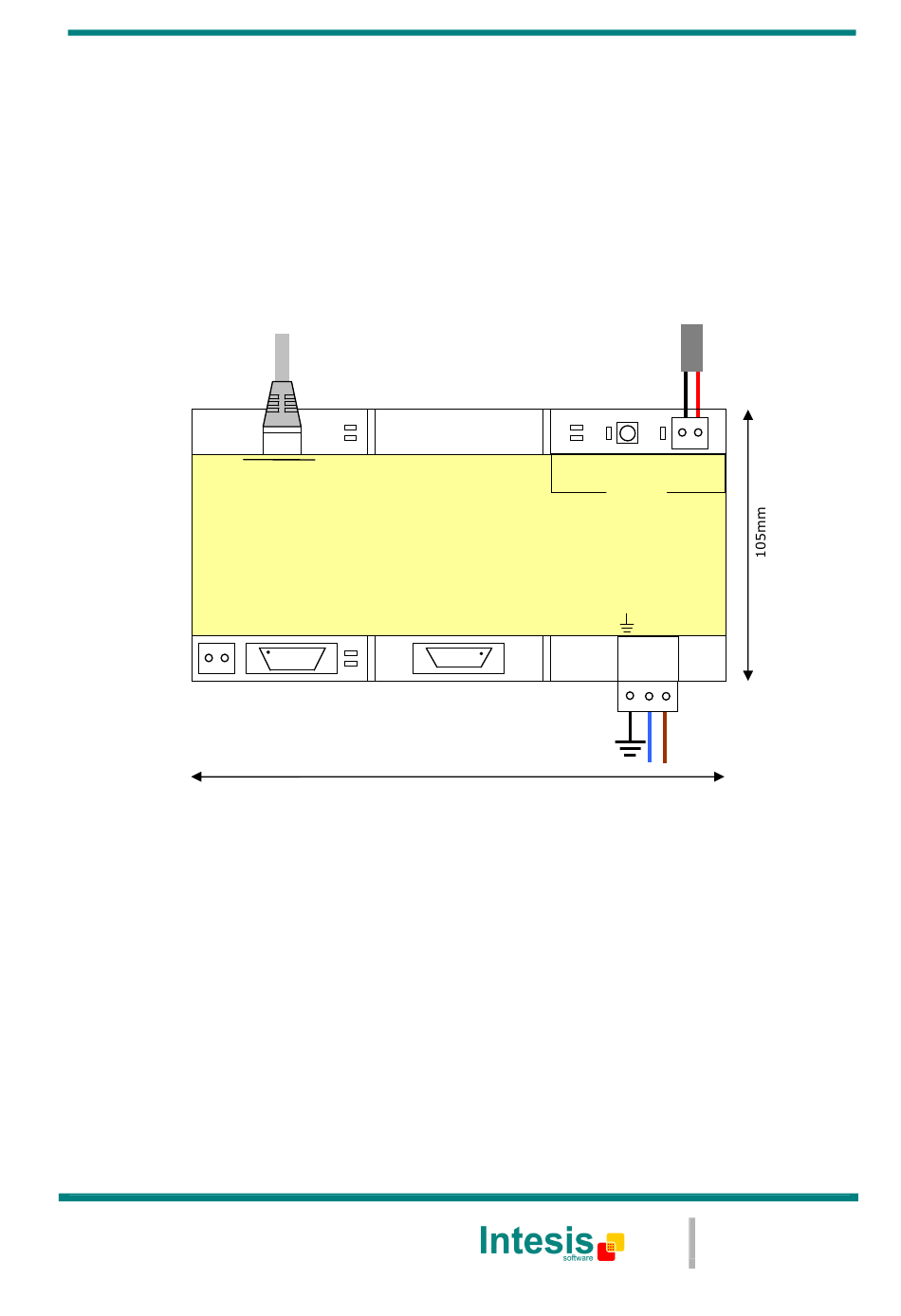

2.1 IntesisBox hardware

Device uses a standard enclosure allowing DIN EN60715 TH35 rail mounting. Its plastic
meets standard PC UL 94 V0.
Sizes are 159mm x 105mm x 58mm.
Ethernet / BACnet/IP
(and IntesisBox configuration)
Ensure proper space for all connectors when mounted.
The items supplied by Intesis Software for this integration are:
IntesisBox BACnet/IP – DALI hardware
•
Console cable. Standard DB9F-DB9M cable 1.8 meter long.
•
Installation sheet, containing a hard-link for LinkBoxBacnet software download
•
and this manual.

2.2 Quick-setup

Mount IntesisBox in the desired location (follow instructions and recommendations in its
installation sheet).
Next sections detail preliminary checks to perform to ensure DALI and Ethernet
connectivity.
2
File: IBOX-BAC-DALI User Manual eng r1.pdf
© Intesis Software S.L. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SL
ETH
(BACnet/IP)
IntesisBox
www.intesis.com
Serial Port
(Not used)
®
PC Console
159mm
User's Manual eng r0
DALI Bus
- +
DALI
POWER
230VAC 6W
N L
Power
230Vac
