2.3 Key introduction

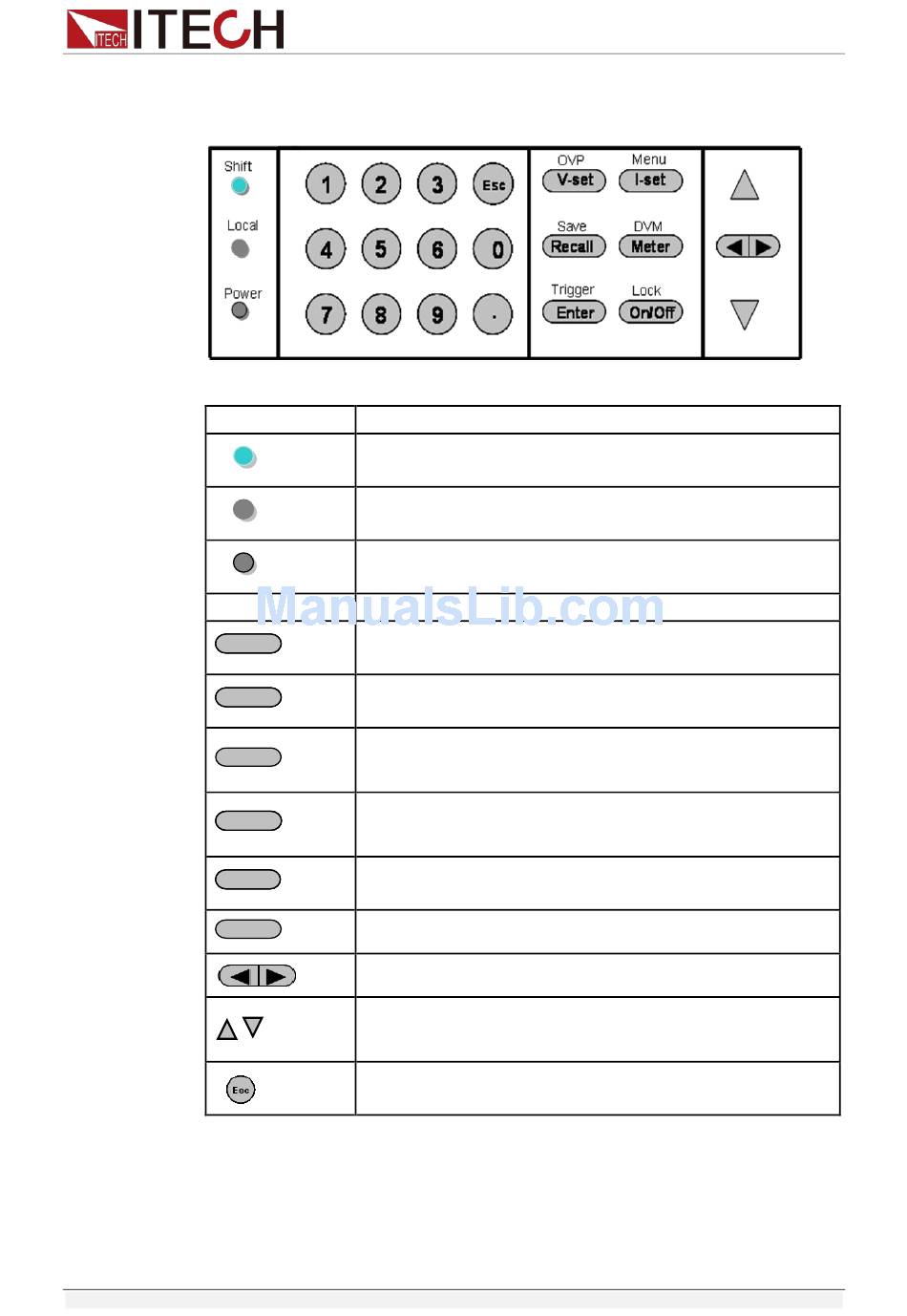

Key description, see the table below:
Keys
0-9
V-set V-set
I-set I-set
Recall
Meter Meter
Enter Enter
On/Off
Name and the function
Compound key，co-work with OVP、Menu、Save、DVM、
(Shift)
Trigger、Lock
Local switch key, switch from remote mode to local
(Local)
operation mode.
Power on key
(Power)
Numeric keys
Voltage set key, set the output voltage/over voltage
/OVP
protection point for the power supply.
Current set key, set the output current/menu function key,
/Menu
to set the relevant Parameters for the power supply.
Callback key to call up a set value of system parameters
already stored / storage key, to save system parameter
/Save
settings.
Meter key, to switch from value set panel and the actual
output value display / voltage meter function keys, to
/DVM
switch to the measure state of the voltage meter.
Enter key, to confirm the number entered and operation /
/Trigger
trigger button, which is used to trigger the List test.
Output on (off) keys, control power output state / keypad
/Lock
lock function keys, used to lock the panel buttons.
Left and right movement keys, used to set the value, to
adjust the cursor to the specified location.
Up and down keys, used to select a item in the menu or
increase (decrease) the output voltage or current
values.
Cancel /return keys.
