Power On the Control Head
Follow the instructions below to power on your Humminbird® control head.
1. Press the
2. When the Title screen is displayed, press the MENU key to access the Start-Up Options
Menu.
3. Use the 4-WAY Cursor Control key to select Normal (if there is a transducer attached to
the control head), or Simulator (if there isn't a transducer attached to the control head).
NOTE:
See
Start-Up Options Menu
• If a functioning transducer is connected, Normal operation will be selected
automatically at power up, and your Fishing System can be used on the water.
• If a transducer is not connected and you wait too long to select a Start-Up Option,
the system will default to whichever menu is already highlighted.
• In Simulator you can learn how to use your control head and save settings in
advance for later use.
Power On

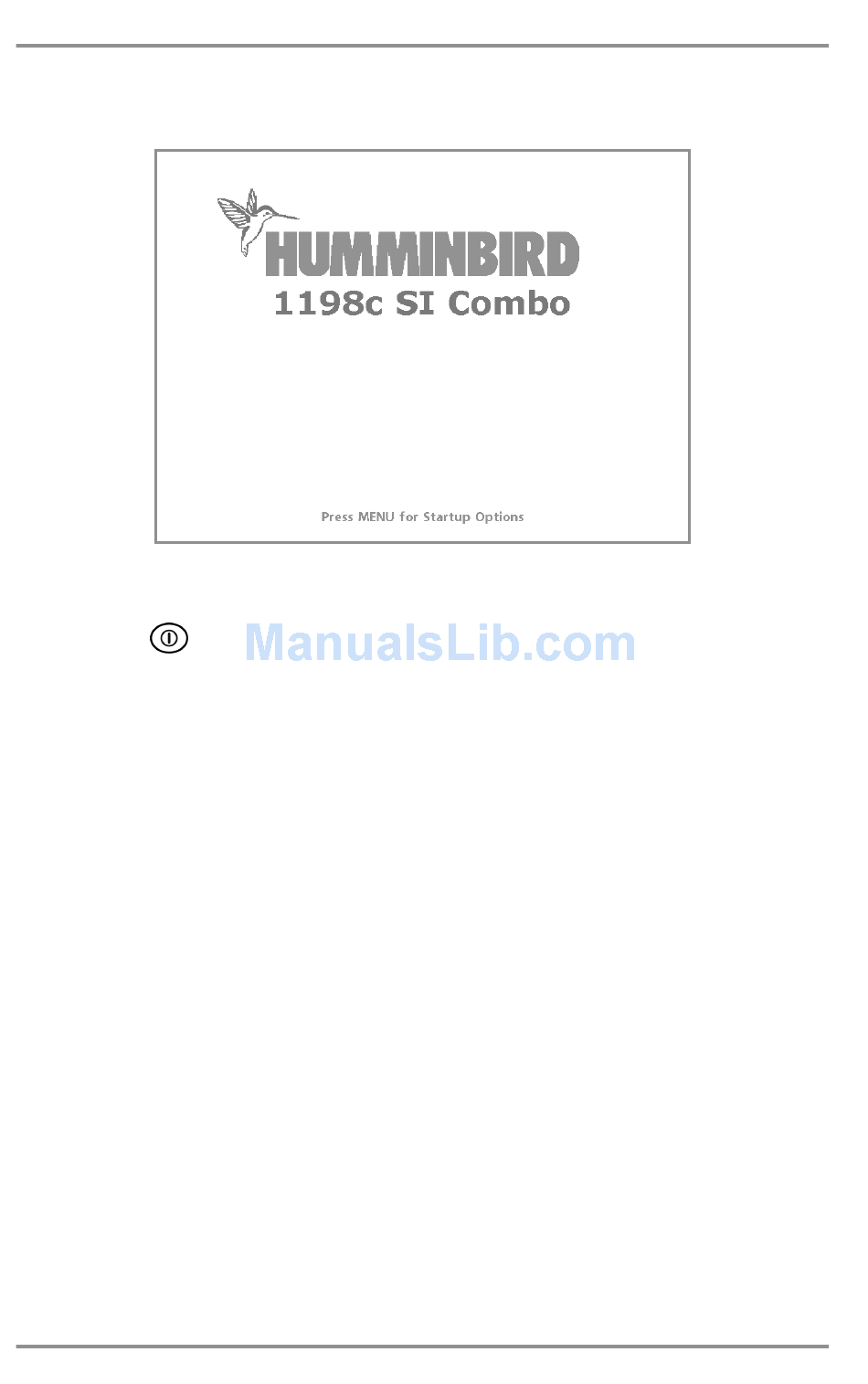

1100 Series™ Title Screen
POWER/LIGHT key.
for more information.
50
