Fishing System Configuration

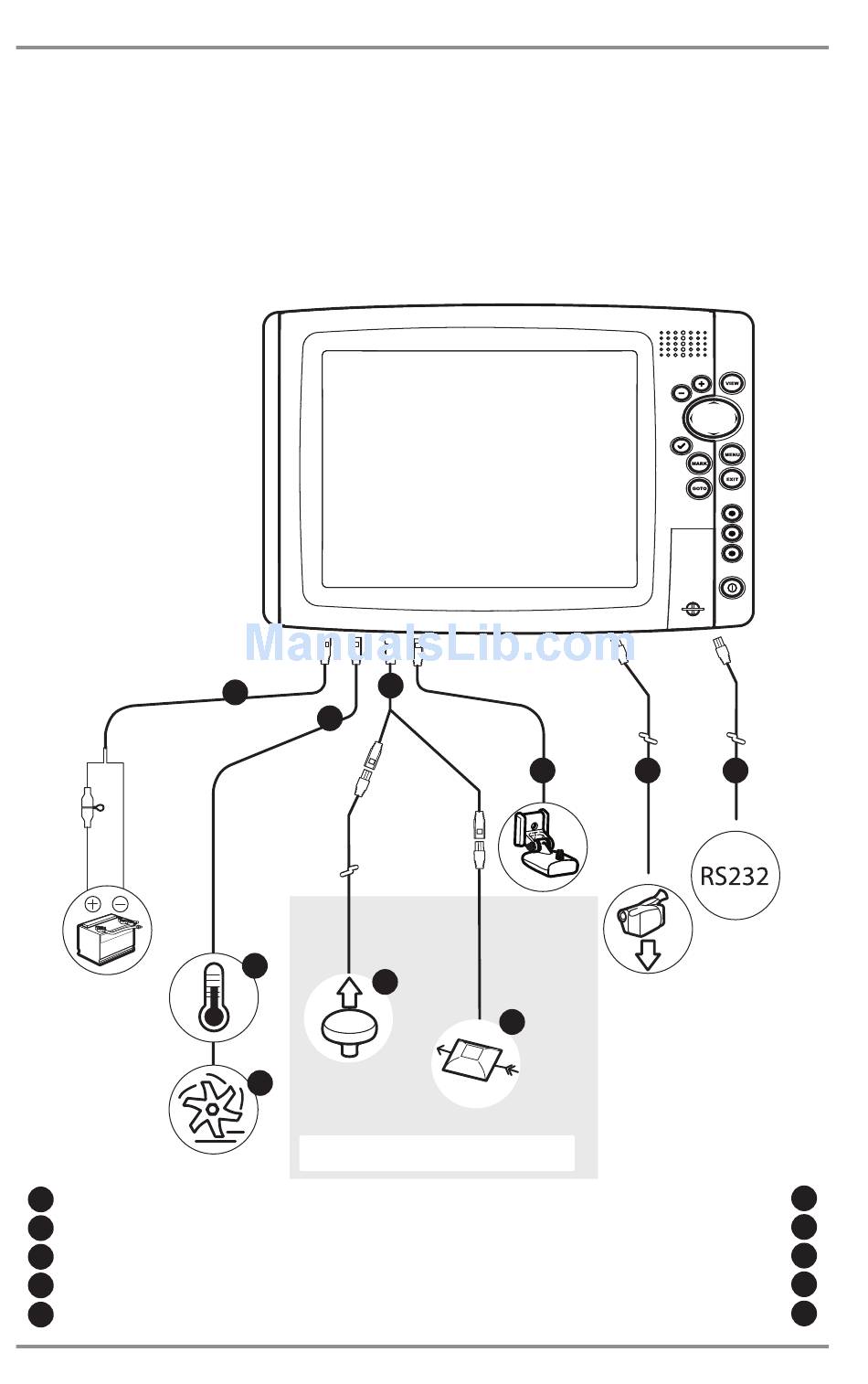

The Fishing System has a wide variety of configurations that will influence the installation. The
accessory bus, video output, ethernet connector, and RS 232 connectors allow you to expand
your Fishing System capabilities. As you expand the configuration, the menu options that
correspond with the connected accessory will be added to the menu system.
Please read all instructions that are relevant for your configuration before beginning the
installation process.
1
Power
2
Temp/Speed
3
Temperature
4
Speed through water
5
Optional "Y" Cable
6
Installation Introduction
The 1100 Series™ has a wide variety of configurations.
1
2
3
4
Accessory Bus
5
8
6
7
6
9
10
6
GPS Receiver
7
WeatherSense®
8
Transducer
9
Video Out
10
RS 232
