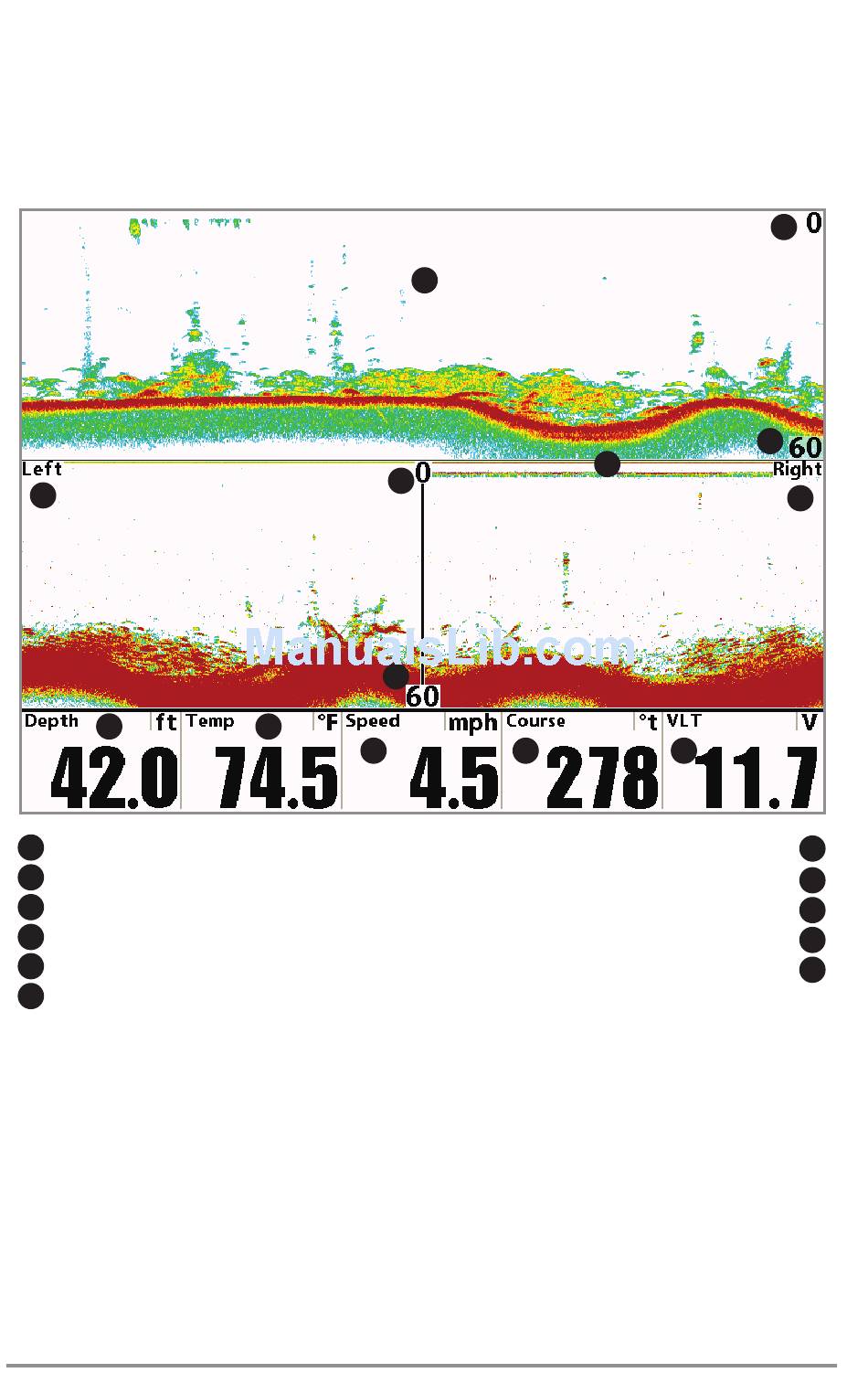

Default layout: The top portion of the display presents a historical log of sonar returns from the
200 kHz down-looking sonar beam. New information in the down beam panel scrolls from right
to left. The bottom portion of the display presents a historical log of sonar returns from the 455
kHz right- and left-looking sonar beams. New information in the side beam panels scrolls from
the center out.
7
1
1
Depth
2
Temp: water surface temperature
3
Speed: speed of boat
4
Course: the current direction the boat is traveling measured in degrees from North
5
VLT: Voltage
6
Right Side 455 kHz Sonar History Window
Views
Side Beam View, Default Layout
9
10
11
2
3
94
8
4
Left Side 455 kHz Sonar History Window
Water Surface Line for 455 kHz Sonar History Windows
200 kHz Sonar History Window
10
11
6
5
7
8
9
Upper Depth Range
10
Lower Depth Range
11
