Chart/Sonar Combo View

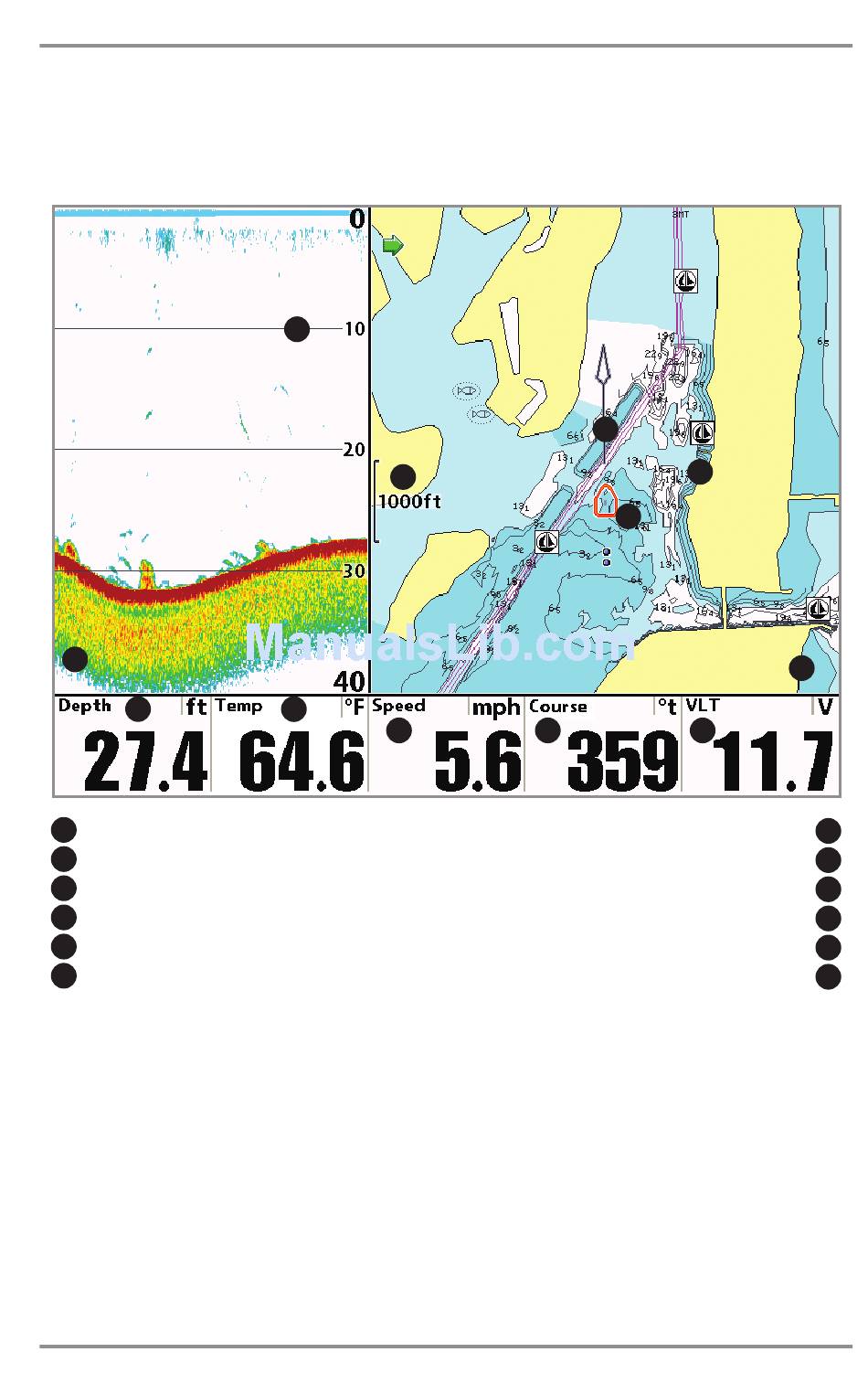

Chart/Sonar Combo View shows both the Chart and Sonar views in a combination split screen,
where the Sonar View is displayed on the left and the Chart View is displayed on the right. For
more information about each side of this combo view, see Chart View and Sonar View.
11
1
1
Depth
2
Temp: water surface temperature
3
Speed: speed of boat
4
Course: the current direction the boat is traveling measured in degrees from North
5
VLT: Voltage
6
Chart Window
Chart/Sonar Combo View
12
10
2
3
105
9
7
8
4
5
Course Projection Line
6
Cartography
7
Boat Icon
8
9
Map Scale
10
Sonar Window
11
Depth Lines
12
Combo Views
