RTS Window™ sets the RTS Window™ to Wide or Narrow, or turns it off in the Sonar View. The
RTS Window™ always updates at the fastest rate possible and only displays returns that are
within the transducer beam. See What's on the Sonar Display for more information.

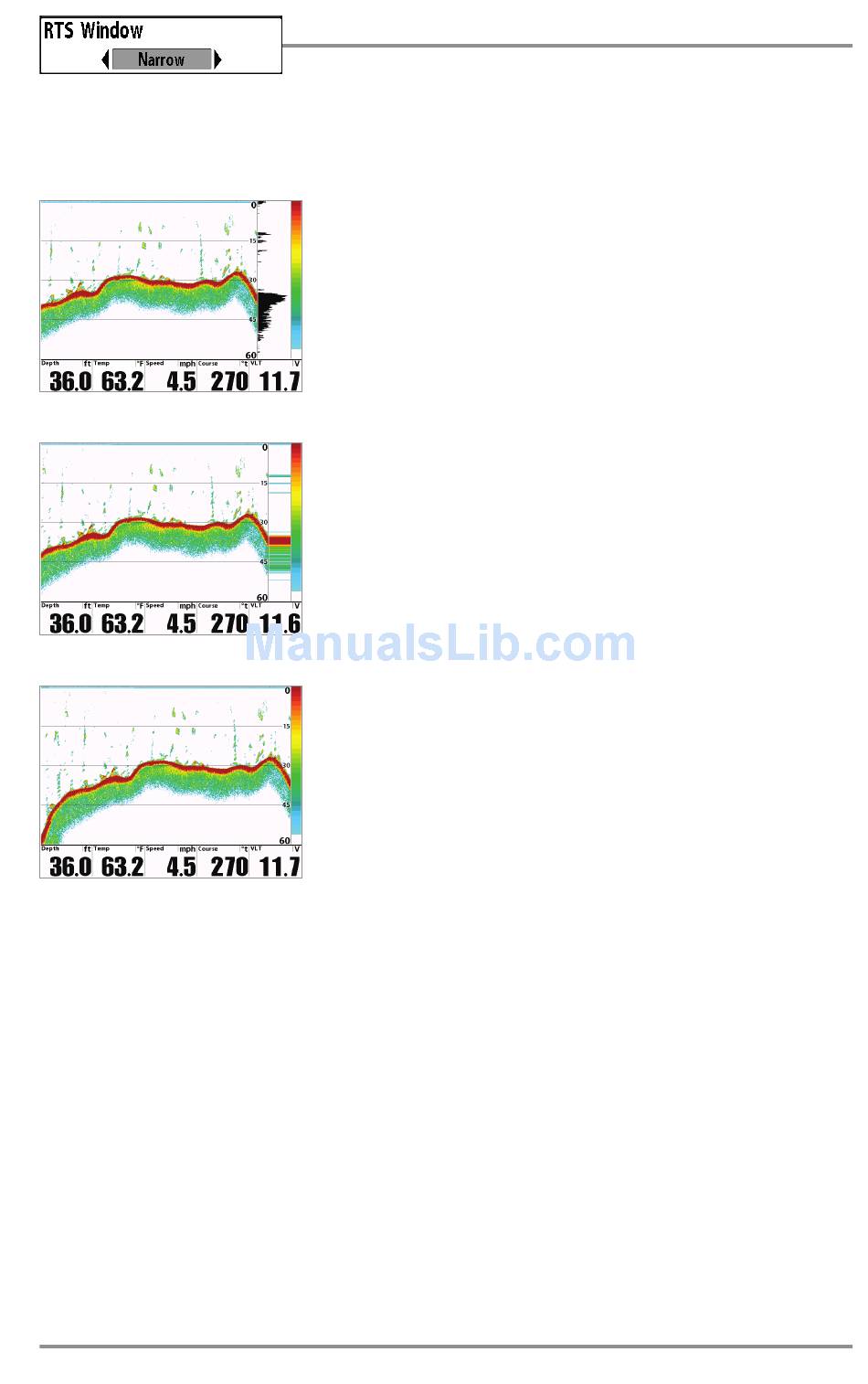

RTS® Window (Wide)
RTS® Window (Narrow)
RTS® Window (Off)
Real Time Sonar (RTS™) Window
Settings: Wide, Narrow, Off; Default = Narrow
NOTE: The Wide RTS Window™ does not use grayscale.
167
Sonar Menu Tab
