9. Attach the cable collector insert to the cable collector cover using the (2) #6 Phillips
screws provided.
10. Plug the assembled cable collector into the back of the control head, pushing gently but
steadily until you feel the collector snap into place. Cable connectors and cable sockets
are keyed to prevent reverse installation, so be careful not to force the connectors into
the wrong sockets.

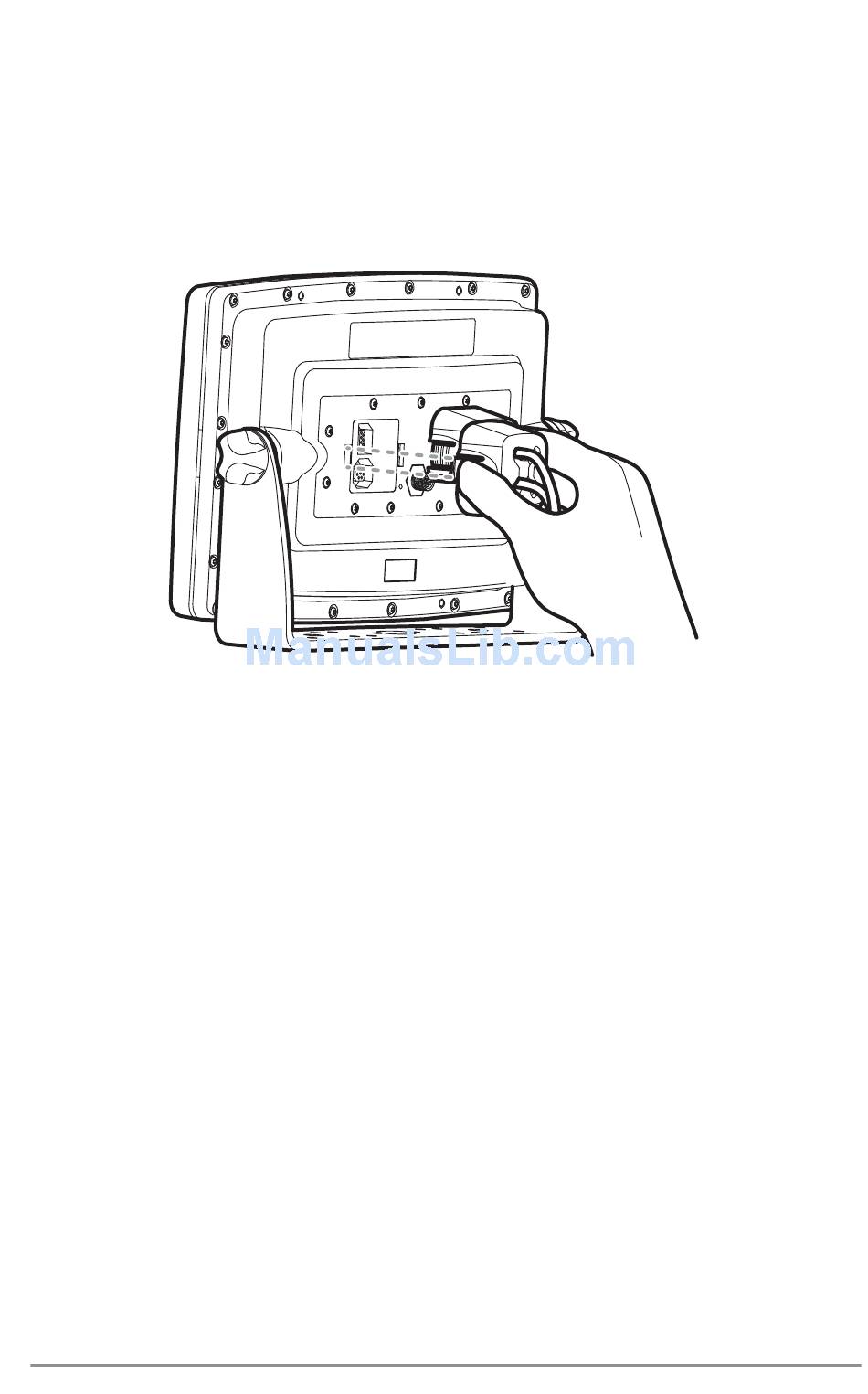

Plugging the Assembled Cable Connector into the Back of the Control Head
NOTE: You may wish to dress the cabling with nylon wire ties in order to hold the cables together and
create a cleaner assembly.
NOTE: It is very important that the cable collector is used and secured in place in the In-Dash installation.
17
Installation: In-Dash Mount
