5. Insert the control head through the mounting hole from the front side of the dash. Place
a washer, lock washer, and wing nut onto each threaded rod and tighten fully.
6. Thread the cables through the opening in the back of the cable collector cover.
7. Insert cable connectors into the proper recesses on the cable collector insert. The cable
connectors are keyed to prevent reverse installation, so be careful not to force the
connectors into the wrong slots. If you don't have a cable for every hole in the insert,
install the blank plugs to protect the control head from the weather.
1
3
8. Line up the cable collector insert and cover, with the keying feature, then slide the cover
into place on the insert.
1
Cable Collector Insert
2
Screws
3
Cable Collector Cover
Installation: In-Dash Mount

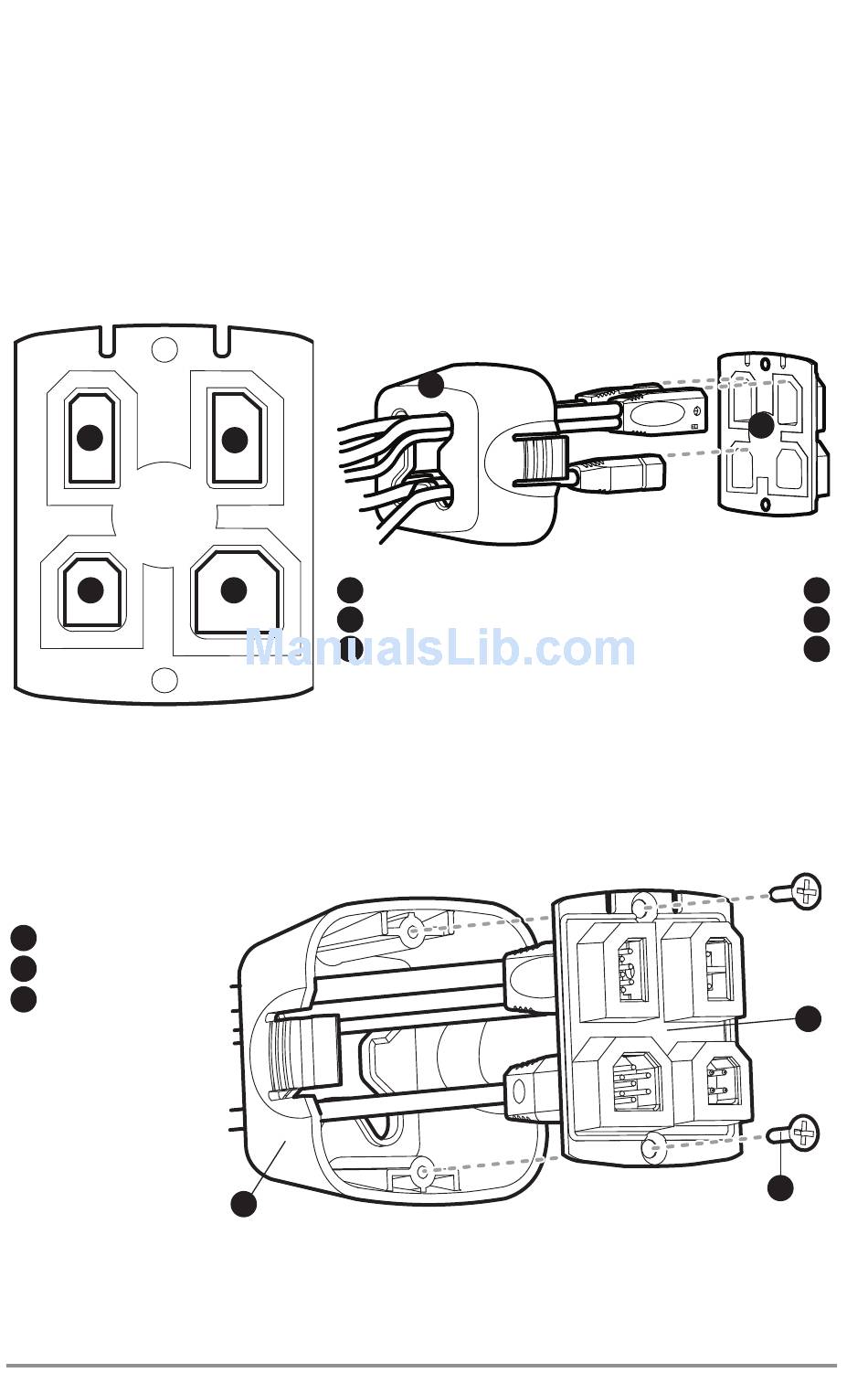

Inserting the Cables into the Cable Connector Insert
2
4
1
Power
2
Communications/GPS
3
Temp/Speed
Assembling the Cable Collector
3
5
16
16
6
4
Transducer
5
Cable Collector Cover
6
Cable Collector Insert
1
2
