Installation Overview

Inside the boat there is often a channel or conduit used for other wiring, this can be used to
route cables. Be sure to route the cable as far as practical from the antenna cable of VHF radios
or tachometer cables to reduce the possibility of interference. The transducer and GPS receiver
cables should not be cut, and care should be used not to damage the cable insulation.
Basic installation tasks that you must perform include the following:
• Installing the control head (choose gimbal or in-dash mounting)
• Installing the transducer (choose the installation method that matches your transducer)
• Installing the GPS Receiver
• Testing the complete installation and locking the transducer position
NOTE: Accessories may require a separate purchase. You can visit our Web site at humminbird.com
to order these accessories online or contact our Customer Resource Center at 1-800-633-1468.

Control Head Installation

You have two choices for mounting your 1100 Series™ control head, Gimbal mounting, where
you use a surface on the boat, such as the dash, to mount the control head so that it can be
tilted up or down, or In-dash mounting.

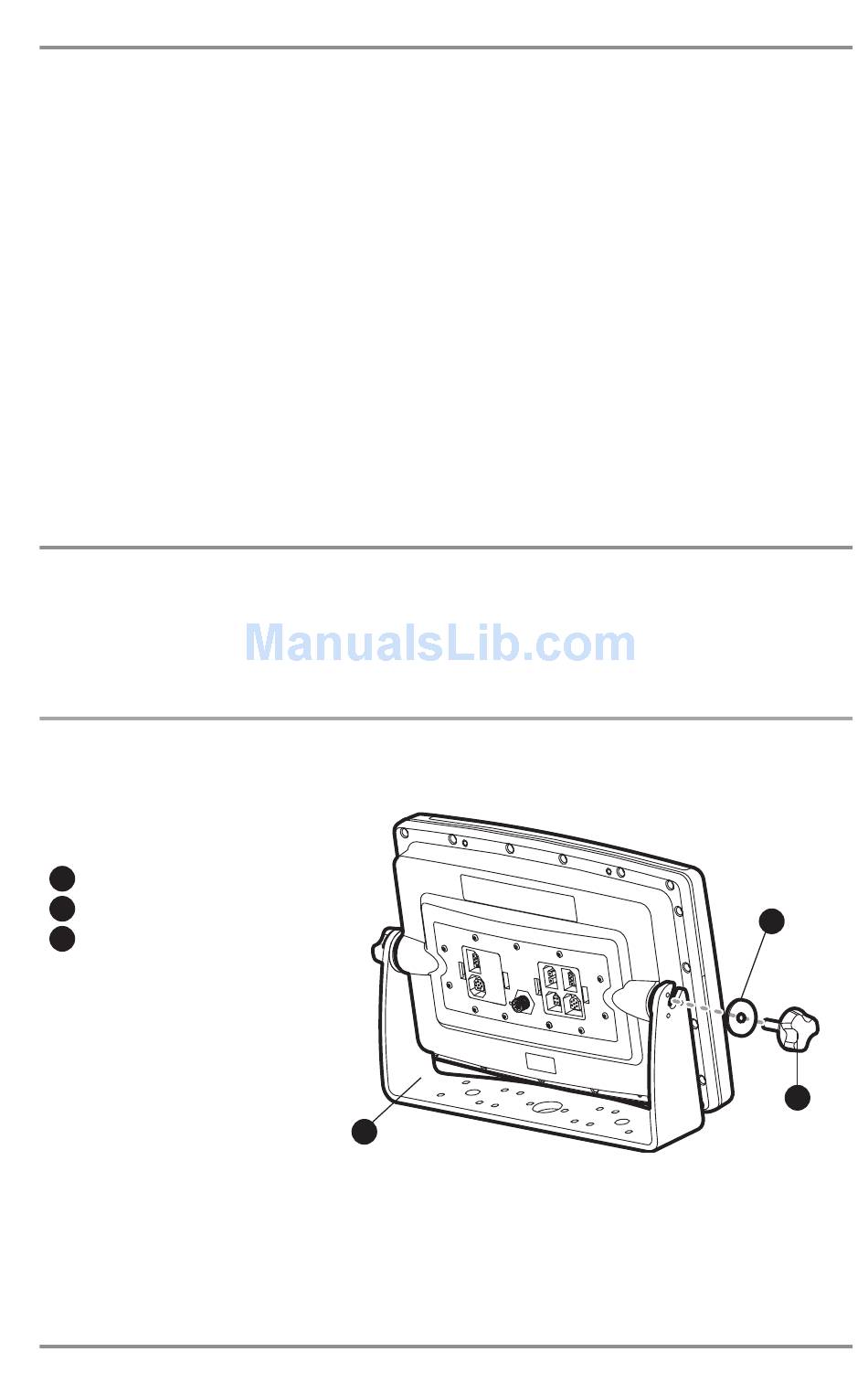

Gimbal Mounting the Control Head

If you are gimbal mounting the Humminbird® 1100 Series™, you can pre-assemble the unit in
order to plan the best mounting location.
1
Washer
2
Gimbal Knob
3
Gimbal Mounting Bracket
Supplies: In addition to the hardware supplied with your control head, you will need a powered
hand drill and various drill bits, various hand tools, including a Phillips head screwdriver, a
socket wrench and a flat head screwdriver, a marker or pencil, safety glasses and dust mask,
and marine-grade silicone sealant.
3
9
1
2
Installation - Gimbal Mount
