Chart View
Chart View shows cartography from the built-in Contour XD™, built-in UniMap™, or an optional
SD map for the area surrounding your current position. The cartography is applied to any
standard Chart View or Combo view that displays a chart. The current track (also known as the
position history or breadcrumb trail) showing where the boat has been, along with saved tracks,
waypoints, and the current route (when navigating), are overlaid on the chart.
NOTE: See Chart Menu tab and Navigation Menu tab for more information.
• Shift/Pan: Use the 4-WAY Cursor Control key to shift/pan the chart to another area.
• Zoom: Press the ZOOM (+/-) keys to zoom in and out.
• Information: Press the INFO key to get information about the chart objects near the
cursor.

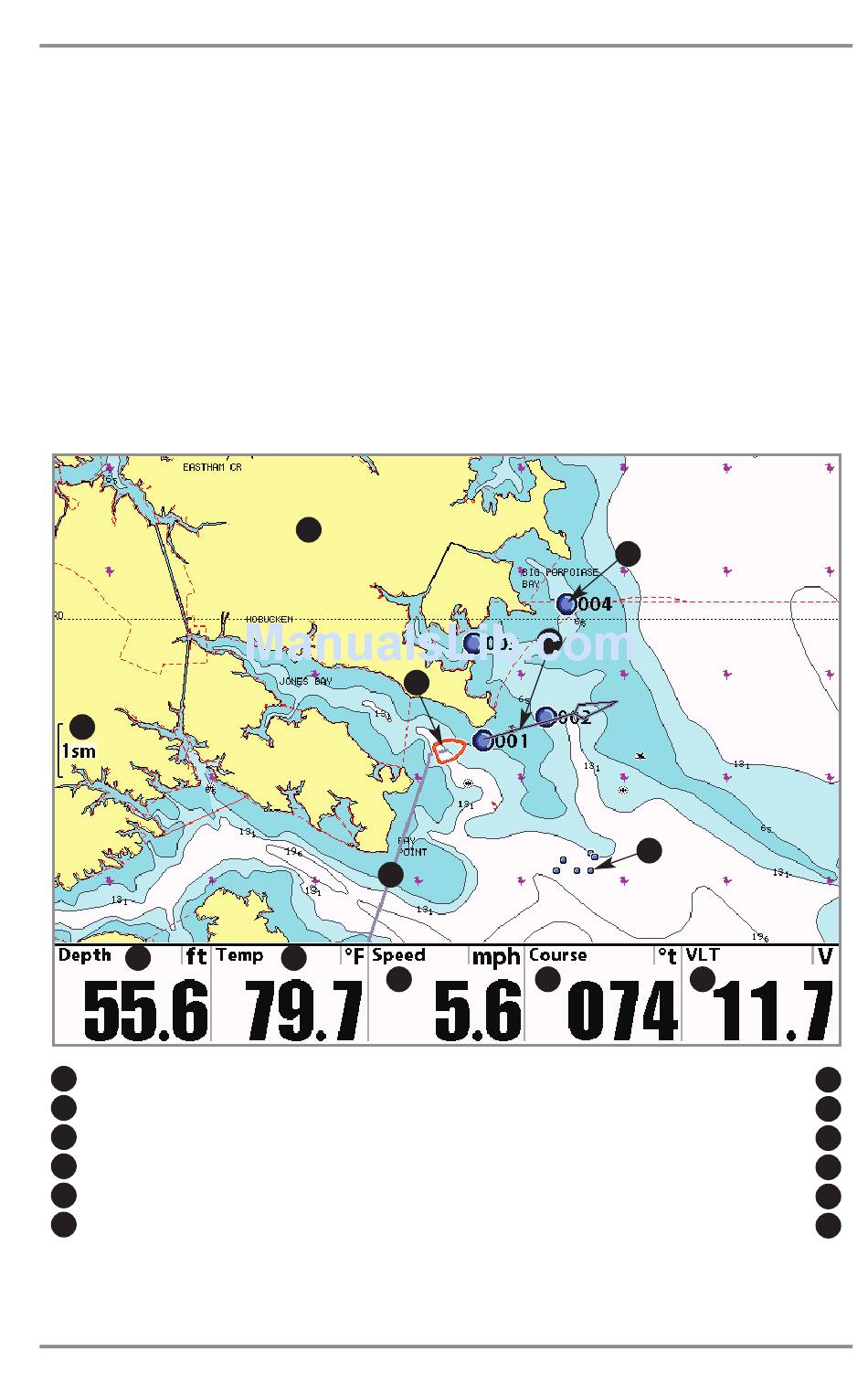

Chart View (Standard) with optional-purchase Navionics® Cartography
12
1
1
Depth
2
Temp: water surface temperature
3
Speed: speed of boat
4
Course: the current direction the boat is traveling measured in degrees from North
5
VLT: Voltage
6
Declutter Icons
11
8
7
2
3
99
10
9
6
4 5
Course Projection Line
Track 7
Boat Icon 8
9
Waypoint 10
Cartography 11
Map Scale 12
Views
