Chassis SC946L JBOD User's Manual

SAS Cables

This drawing shows connectors for SAS cabling. For primary and secondary, the top two
connectors are marked In, and the bottom two connectors are marked In/Out.
Connect two mini-SAS HD cables (SFF-8644) from the head server node host bus adapter
(HBA) card to the top two Primary receptacles marked In. If using the E2C model for
redundancy, connect two more mini-SAS HD cables to the top two Secondary receptables
also marked In. Cables are described in Appendix B.
To cascade out, connect cables from the two receptacles marked In/Out to the next JBOD
storage enclosure. (see Figure 3-2 and 3-3)

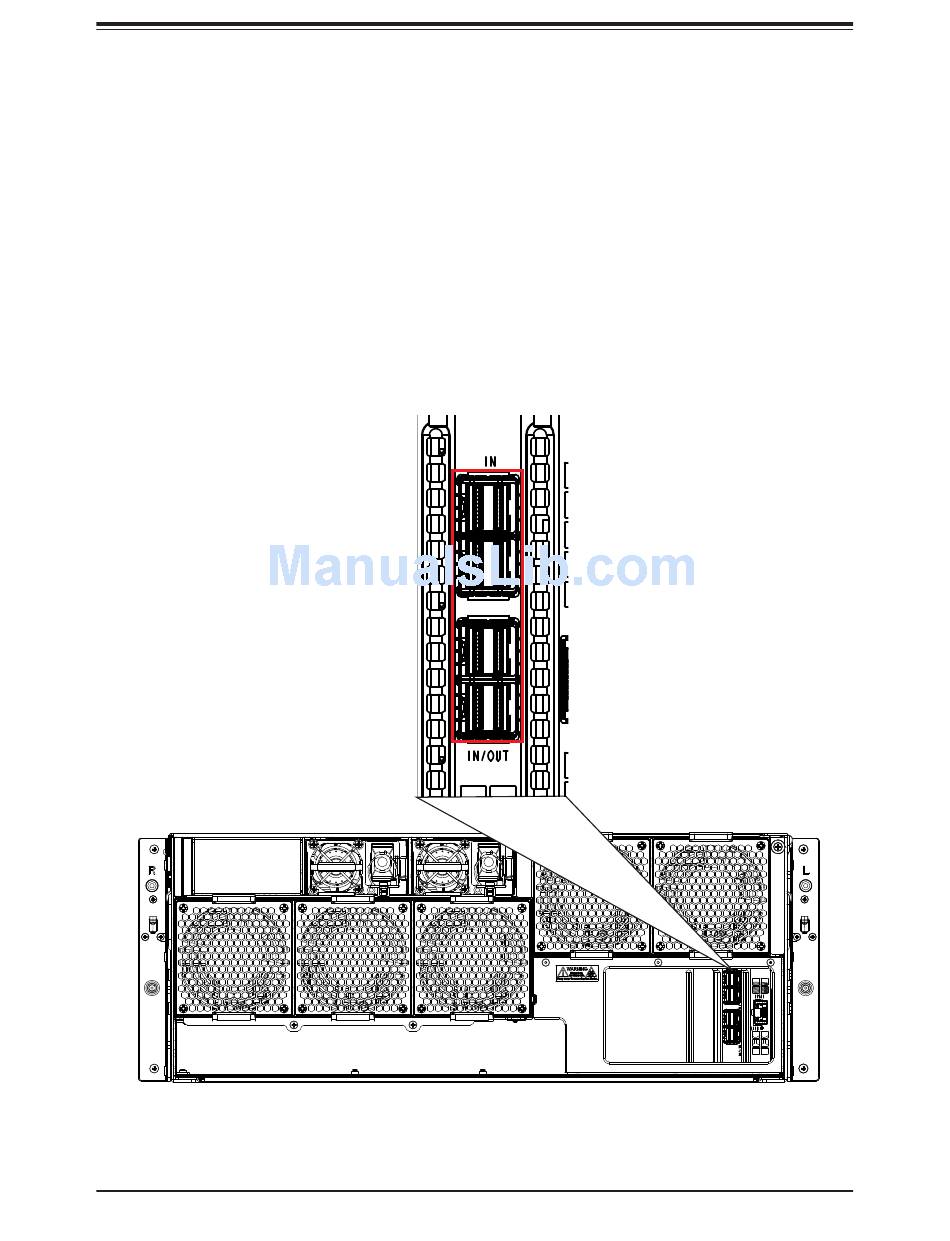

Figure 3-1. SAS and IPMI Cables
36
}
Labeled "In"
on Chassis
}
Labeled "In/Out"
on Chassis
