Status
Continuously on and
red
Blinking red (1Hz)
Blinking red (0.25Hz)
Solid blue
Blinking blue

Chassis Front

The illustration below shows the features included on the front of the chassis.
1
Control Panel

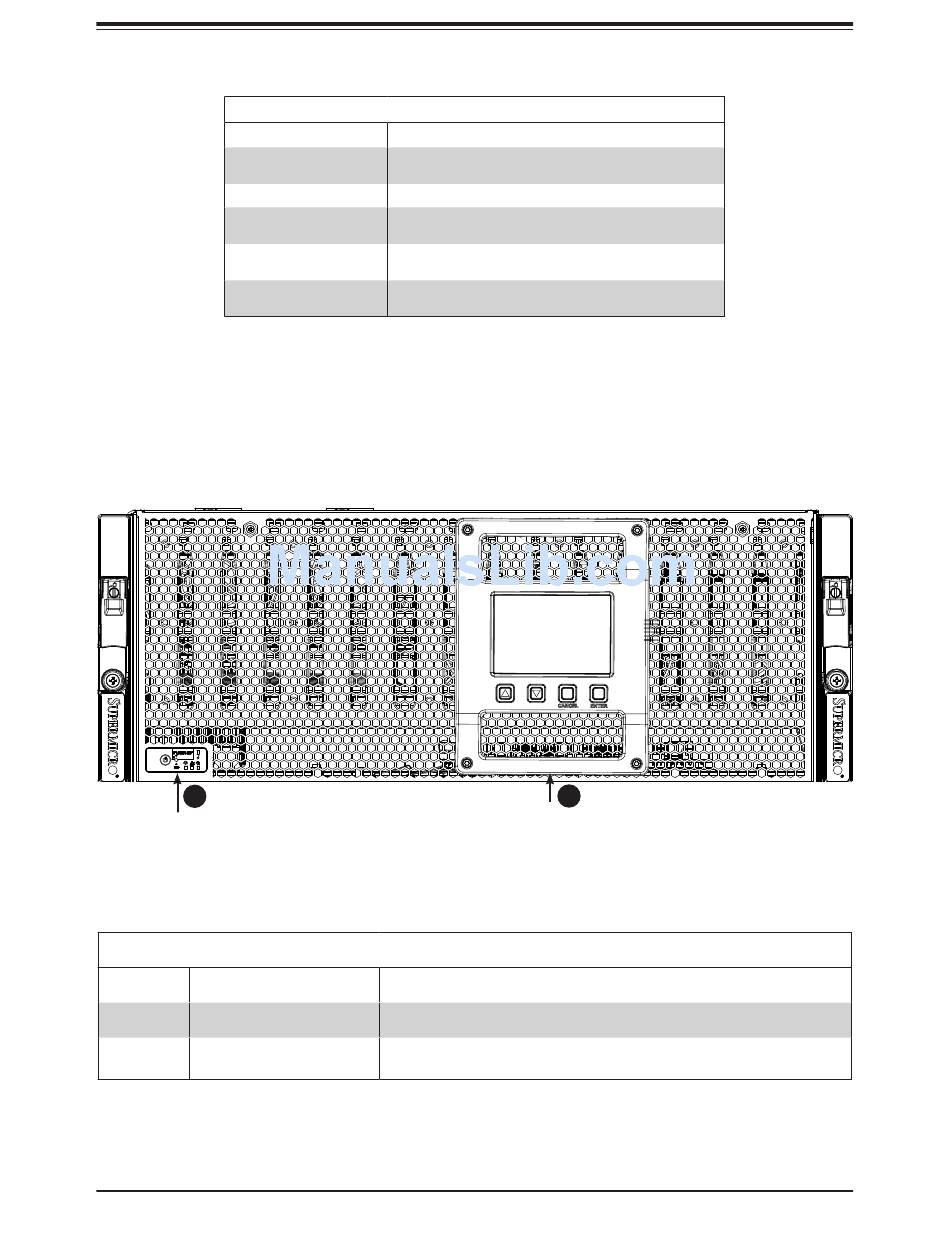

Figure 1-2. Front View (optional LCD Status screen pictured)
Item Feature
1 Control Panel
2 LCD Status Screen
Information LED
Description
An overheat condition has occured.
(This may be caused by cable congestion.)
Fan failure, check for an inoperative fan.
Power failure, check for a non-operational power
supply.
Local UID has been activated. Use this function
to locate the server in a rack mount environment.
Remote UID is on. Use this function to identify
the server from a remote location.
LCD Status Screen (optional)
Front Chassis Features
Description
Power, UID, network, overheat
(Optional purchase item) LCD panel for system status and error information;
see Section 1.4 for details
10
2
