4. Now the JBOD control board is visible. Disconnect all the cables connected on the
control board, taking take note of the location for each connector, including the ATX
power cable, FAN power cable, IPMI cable, I
5. Loosen the screws on the control board and lift out the control board

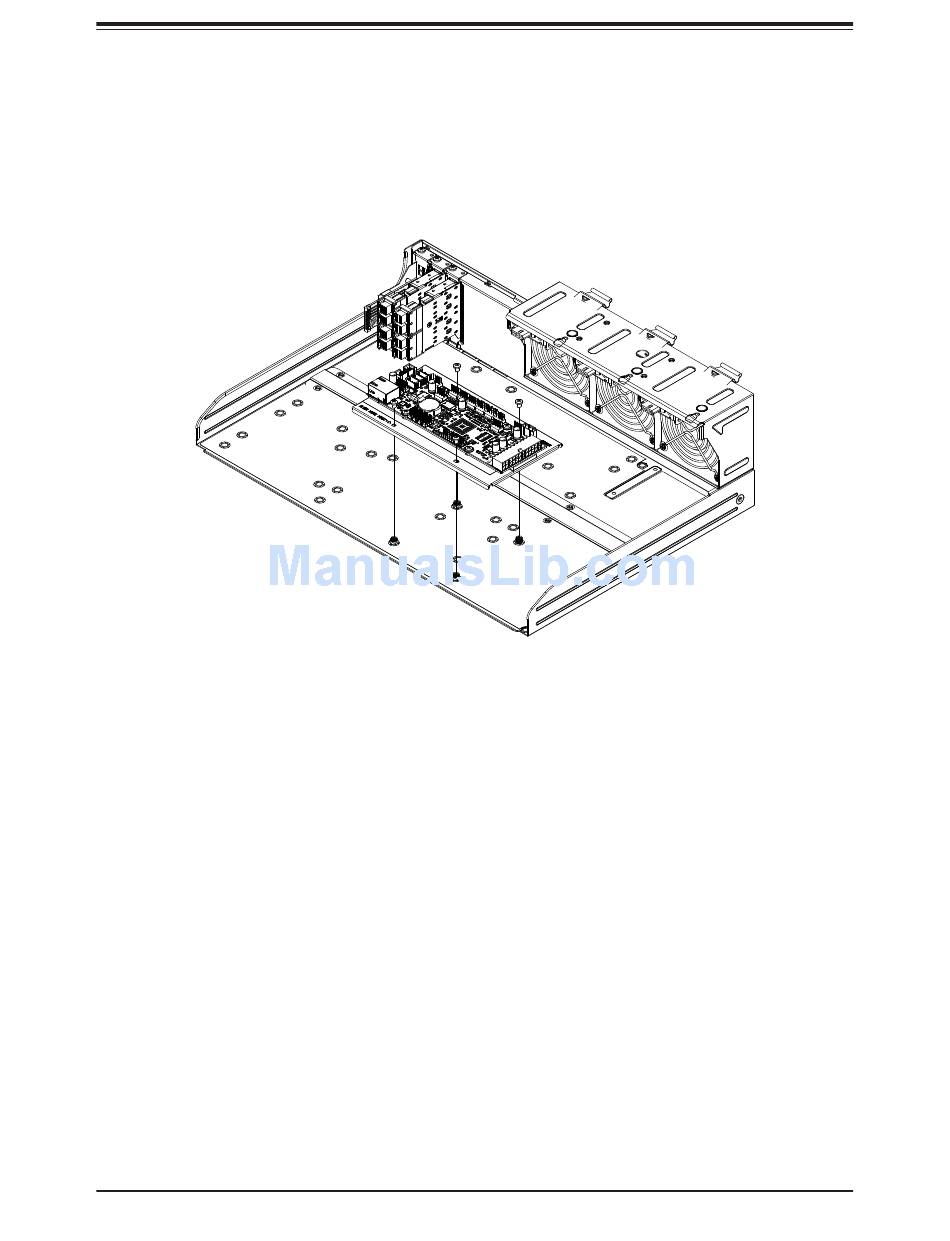

Figure 3-13. Removing the JBOD Control Board
Chapter 3: Maintenance and Component Installation
C cable, and control panel cable.
