Expander Chip Side Components

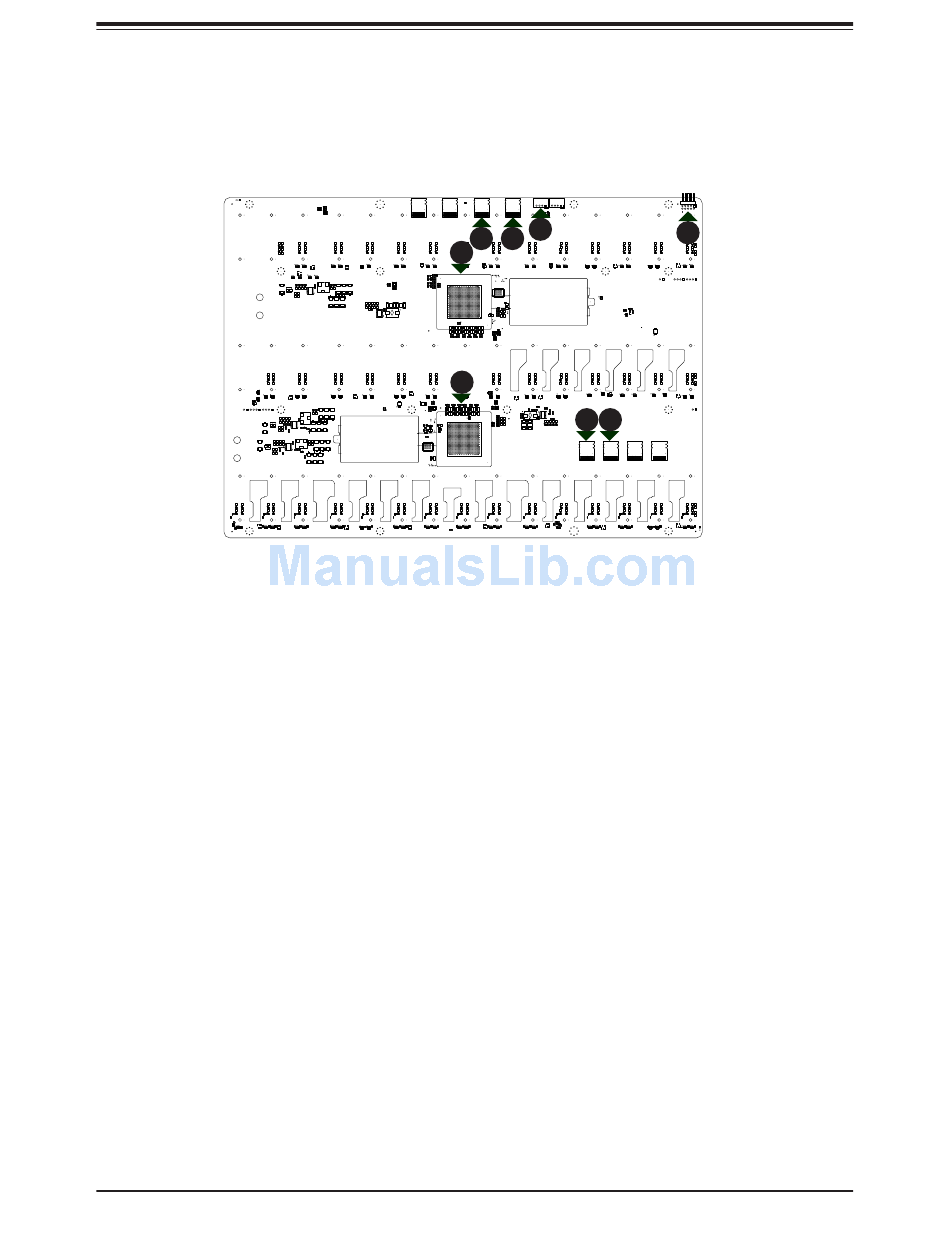

Figure C-3. BPN-SAS3-946LEL1 Expander Chip Side Components
1. Primary Expander Chip.
2. Secondary Expander Chip.
3. Primary SAS Slim Line Connectors:
CN1 and CN2.
1
6
1
1
4
4
1
2
1
1
1
1
3
3
4. Secondary SAS Slim Line Connectors:
CN3 and CN4.
5. Primary UART Connector: J52.
6. I
C Connector: J48.
2
75
Appendix C: Backplanes
1
5
