Chassis SC946L JBOD User's Manual
Installing the Cable Management Arm
1. Slide CMA connector #1 forward onto the two posts on the rear of the right inner rail
(right side when viewed from the front). It snaps into place.
2. Slide CMA connector #2 forward onto the two posts on the rear of the right middle rail. It
snaps into place.
1
1
2
2

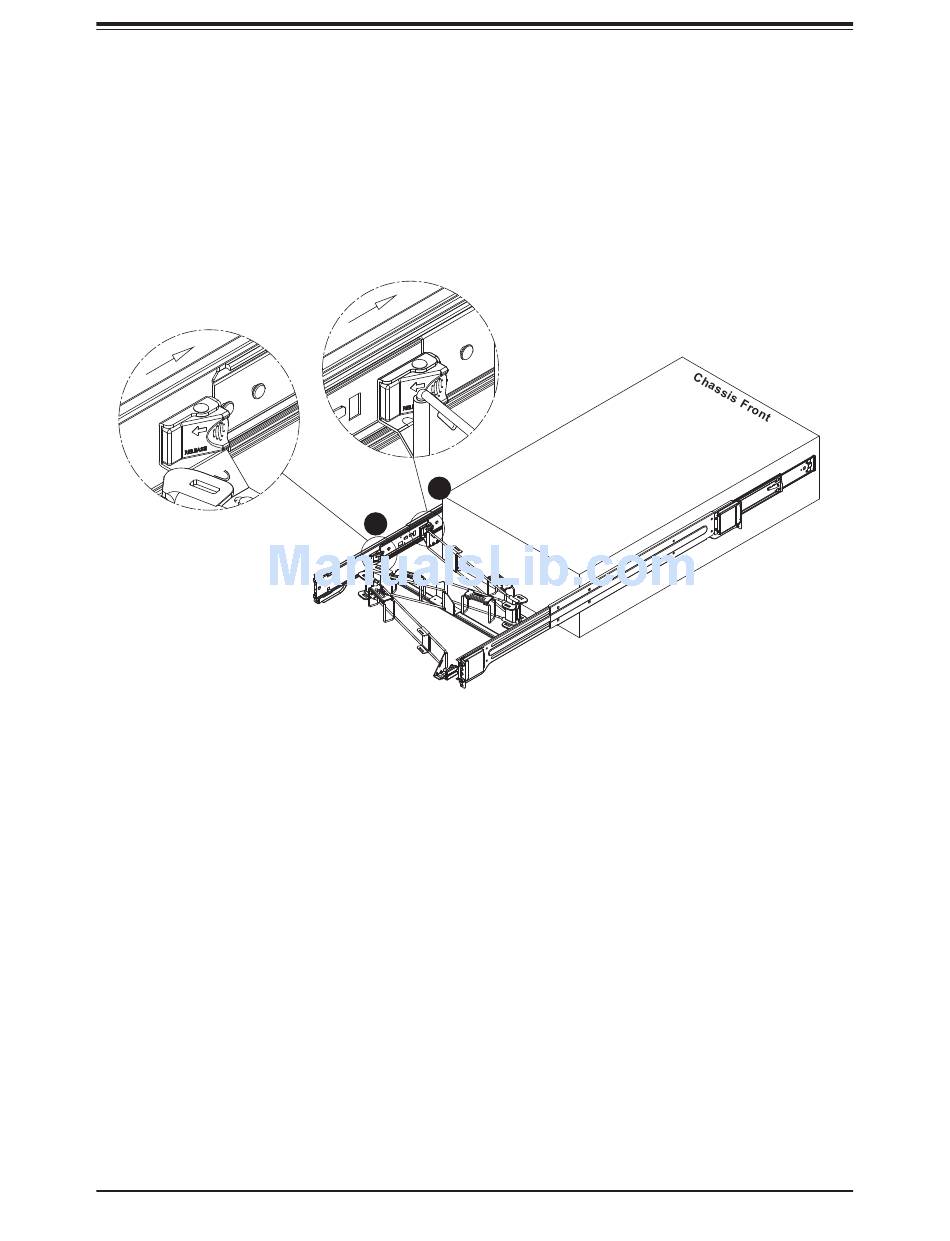

Figure 2-8. Installing the Connectors 1 and 2
30
